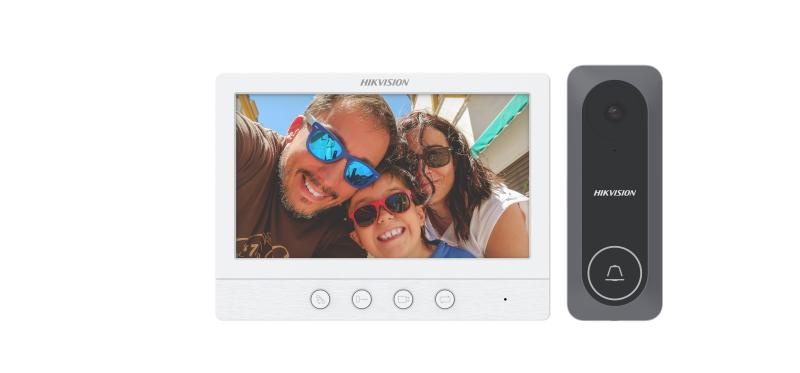

Kit videointerfon 7 inch display Hikvision DS-KIS212

Descriere

• Door station/Video parameters
• Supplement lightIR light, up to 3 m
• ResolutionStream resolution: 1280 * 720@60fps
• FOVHorizontal: 130°，Vertical: 70°

• Door station/Audio parameters
• Audio inputBuilt-in omnidirectional microphone
• Audio outputBuilt-in loudspeaker

• Door station/Device interfaces
• Lock control1 relay, max 30V 1 A
• Debugging port1
• Four-wire1 four-wire interface

• Door station/General
• Button1 physical button(s)
• Indicator/
• Power supply12 VDC
• Power consumptionMax. 4W
• Working temperature-30° C to + 60° C
• Working humidity10% to 90%
• Dimensions136mm x 51mm x 20mm
• Application environmentIndoor
• InstallationSurface mounting
• Protective level/
• MaterialPlastic

• Indoor station/Display parameters
• Operation methodPhysical button
• Tip7-inch colorful TFT
• Resolution1024 x 600

• Indoor station/Audio parameters
• Audio inputBuilt-in omnidirectional microphone
• Audio outputBuilt-in loudspeaker

• Indoor station/Capacity parameters
• Linked indoor extensions capacity2
• Linked doorphone capacity2
• Linked analog camera1

• Indoor station/Device interfaces
• Power supply input12V DC
• Debugging port1
• Four-Wire interface4, 2 for indoor extentions, 2 for doorphones
• DIP switch1 Bit
• BNC1

• Indoor station/General
• Button4 physical button
• Power supply12 VDC
• Power consumption≤5 W
• Working temperature-10° C to + 55° C (14° F to 131° F)
• Working humidity10% to 90%
• Dimensions (W × H × D)178mm x 132mm x 19mm
• InstallationSurface mounting
• Application environmentIndoor
