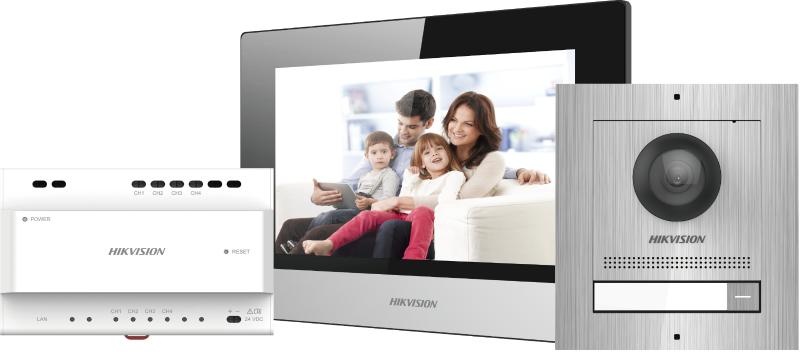

Kit videointercom IP Hikvision DS-KIS702/S

Descriere

Specification
Indoor Station
System parameters
Operation
system
Embedded Linux operation system
Processor
basic
frequency
1 GHz
Memory 128 MB
Flash 16 MB
Display parameters
Display screen 7-inch TFT LCD
Display
resolution 1024 × 600
Operation
method Capacitive touch
Audio parameters
Audio input Built-in omnidirectional microphone
Audio output Built-in loudspeaker
Volume Local or software control
Audio
compression
standard
G.711 U, G.711 A
Audio
compression
Rate
64 Kbps
Audio quality Noise suppression and echo cancellation
Network parameters
Wired
network Two-wire network
Wireless
network Wi-Fi 802.11b/g/n
Protocol TCP/IP, SIP, RTSP
Interfaces
Network
interface Two-wire interface
RS-485 1
Alarm input 8 zones alarm input
Relay output 2
TF card Support, Max. 32 GB
Extended Application
Mobile client Support
Indoor call
elevator Support
IPC Support
General
Power supply
mode Two-wire
Power
consumption ≤ 6 W
Working
temperature
-10 °C to 50 °C (14 °F to 122 °F)
Working
humidity 10% to 90%
Dimensions
(W × H × D)
200 mm × 140 mm × 15.1 mm (7.87" ×
5.51" × 0.59")
Door Station
System parameters
Processor Embedded microcontroller
Operation
system
Embedded Linux operation system
Operation
mode One touch key
Video Parameters
Camera 2MP super definition camera
Night vision Support low light and IR light supplement
mode
Backlight
compensation Support
Digital noise
reduction Support
WDR True WDR
Field of view Horizontal 180°, vertical 96°
Video
Compression
Standard
H.264
Stream
Main stream: 1080p@30fps, 720p@30fps
(configurable); sub stream: D1
Resolution Main stream: 1920 × 1080, (720p
configurable); sub stream: 720 × 480
Motion
detection Support
Flash-avoid
frequency 50 Hz, 60 Hz
Audio parameters
Audio input Built-in omnidirectional microphone
Audio
intercom Full-duplex two-way audio intercom
Audio output Loudspeaker, 20 cm sound effect > 80 db
Audio
compression
standard
G.711 U
Audio
compression
Rate
64 Kbps
Audio quality Noise suppression and echo cancellation
Tamper
Tamper 1
Interfaces
RS-485 1 (inter-module connection)
Alarm input 1
General
Protection
level IP 65
Button 1
Power input 24 VDC two-wire power supply (< 16 W)
Working
temperature
-40 °C to 60 °C (-40 °F to 140 °F)
Working
humidity 10% to 90%
Installation Wall mounting
