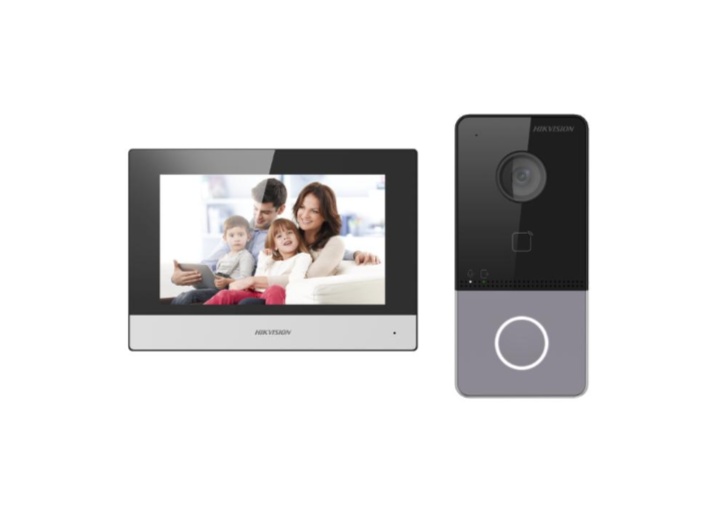

Kit video interfon IP, Hikvision DS-KIS603-P(C)

Descriere

• Door station/System parameters
• Operation systemEmbedded Linux operation system
• Flash32 MB
• RAM256MB

• Door station/Video parameters
• Camera2MP HD camera
• Night visionLow illumination IR supplement mode:3 m
• Backlight compensationSupport
• Digital noise reductionSupport
• WDRTrue WDR
• Field of viewHorizontal: 131° Vertical: 78°
• Video Compression StandardH.264
• StreamMain stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps
• Motion detectionSupport
• Flash-avoid frequency50 Hz, 60 Hz

• Door station/Audio parameters
• Audio inputBuilt-in omnidirectional microphone
• Audio outputBuilt-in loudspeaker
• Audio qualityNoise suppression and echo cancellation
• Audio compression standardG.711 U
• Audio compression Rate64 Kbps
• Audio intercomTwo-way audio communication

• Door station/Network parameters
• Network protocolTCP/IP, RSTP
• Wired network10/100 Mbps Ethernet

• Door station/Device interfaces
• RS-4851
• Alarm input4
• Debugging port1
• Grounding1
• TAMPER switch1

• Door station/General
• Power consumption＜ 10 W
• Working temperature-40° C to 53° C(-40° F to 127.4° F)
• Working humidity10% to 95%
• Dimension138 mm × 65 mm × 27 mm
• InstallationSurface mounting
• Protection levelIP65
• Indicator2
• Power supply

  IEEE802.3af, standard PoE

  12 VDC

• Indoor station/System parameters
• Operation systemEmbedded Linux operation system
• Memory128 MB
• Flash32 MB

• Indoor station/Display parameters
• Display screen7-inch colorful TFT screen
• Display resolution1024 × 600
• Operation methodCapacitive touch screen

• Indoor station/Audio parameters
• Audio inputBuilt-in omnidirectional microphone
• Audio outputBuilt-in loudspeaker
• Audio qualityNoise suppression and echo cancellation
• Audio compression standardG.711 U
• Audio compression Rate64 Kbps

• Indoor station/Network parameters
• Wired network10/100 Mbps self-adaptive
• Wireless networkWi-Fi 802.11 b/g/n
• ProtocolTCP/IP, SIP, RTSP
• RS-4851 RJ-45 10/100 Mbps self-adaptive

• Indoor station/Device interfaces
• RS-4851
• Alarm input8-ch alarm inputs
• Relay output2
• TF cardMax to 32 G, SD 2.0 or lower version

• Indoor station/General
• Power consumption≤ 6 W
• Working temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working humidity10% to 90%
• Dimension (L x W x H)200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
