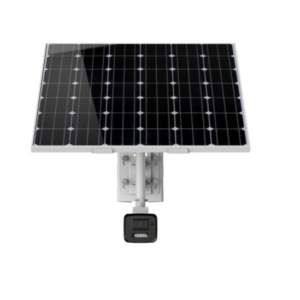

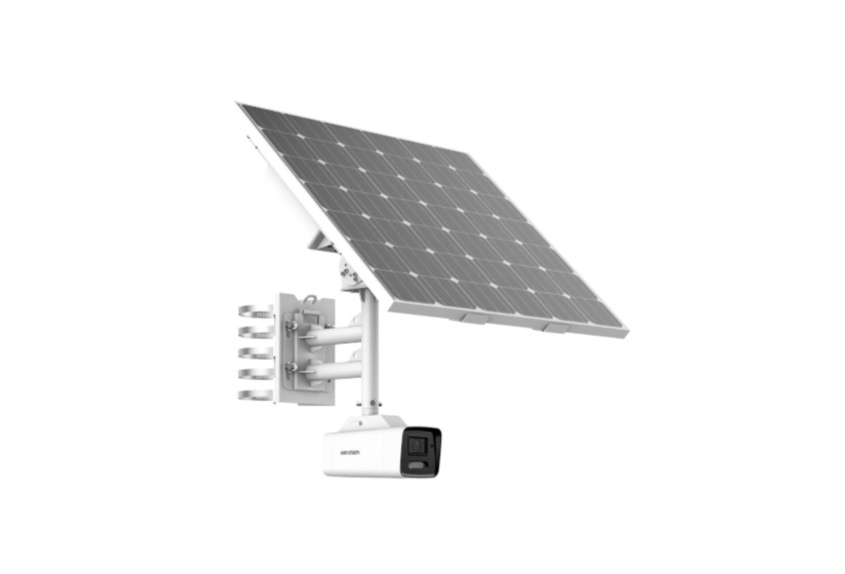

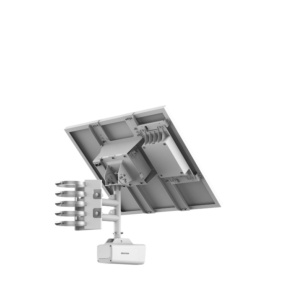

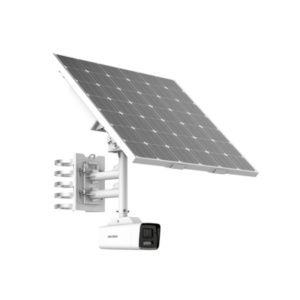

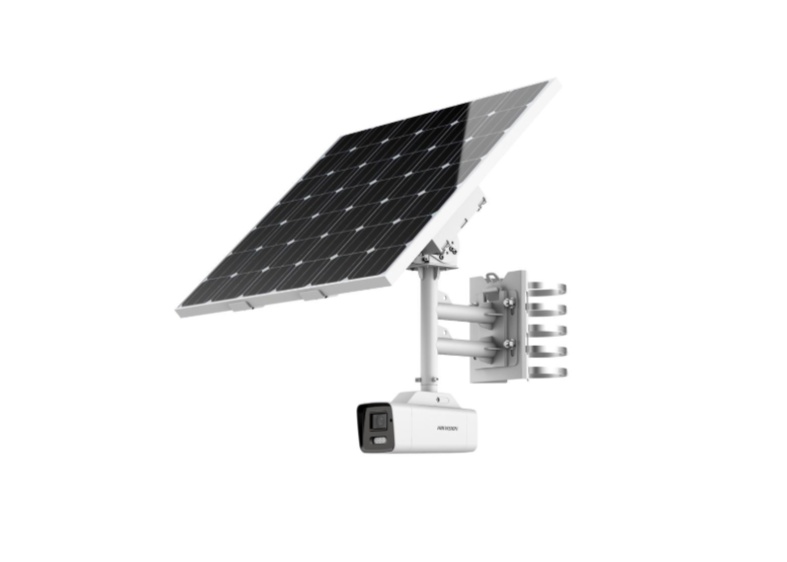

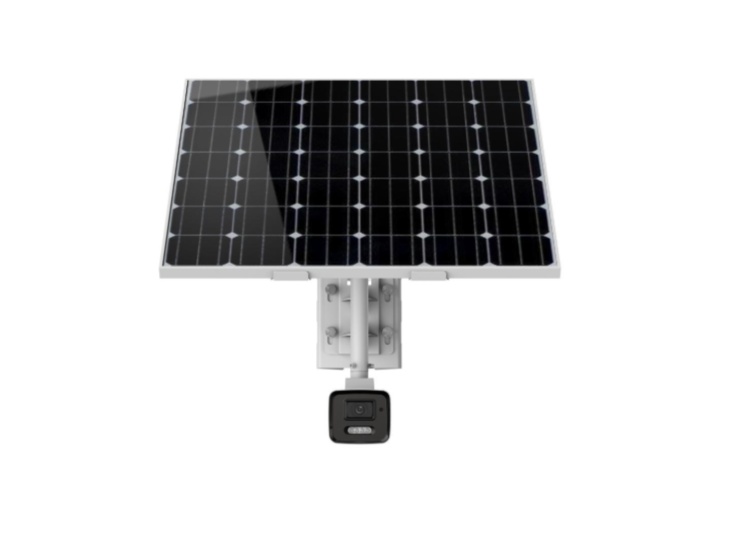

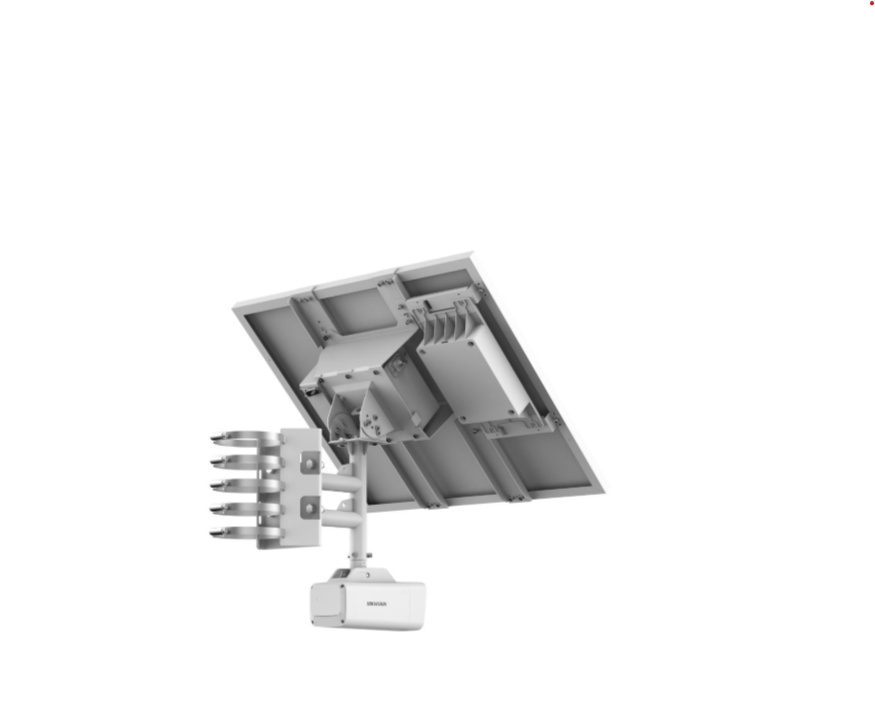

Kit IP HIKVISION 4Mp KIT SOLAR DS-2XS6A46G1-IZS/C36S80

Descriere

Tehnologia CMOS

Utilizata si in senzorii de imagine al camerelor Hikvision, tehnologia CMOS ajuta la captarea imaginilor la o calitate superioara. Printre caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie.

Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde

Functia  AcuSense filtreaza si elimina alarmele false (pasari, frunze, ploaie, lumina) cu o acuratete de peste 90%.

SD card

Scapa de grija instalatiilor complexe , de amalgamul de cabluri si echipamente grele si costisitoare, deoarece acum poti inregistra si stoca  imaginile pe propriul card SD pe care il conectezi direct la camera.

IP 67

Nivelul de protectie asigurat de carcasa camerei impotriva accesului la componentele interne, a corpurilor solide sau a patrunderii apei. IP 67 indica un grad superior de protectie asupra factorilor externi si ofera protectie impotriva efectului de imersie, intre 15 cm si 1 m

• • • • Camera
      • Image Sensor1/1.8" Progressive Scan CMOS
      • Max. Resolution2560 × 1440
      • Min. IlluminationColor: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0 Lux with light
      • Shutter Time1 s to 1/100,000 s
      • Lens
      • Focal Length & FOV

        2.8 to 12 mm, horizontal FOV 107.4° to 39.8°, vertical FOV 56° to 22.4°, diagonal FOV 130.1° to 45.7°

        8 to 32 mm, horizontal FOV 40.3° to 14.5°, vertical FOV 22.1° to 8.2°, diagonal FOV 46.9° to 16.5°

      • Lens TypeAuto, Semi-auto, Manual
      • Iris TypeAuto-iris
      • Aperture2.8 to 12 mm: F1.2, 8 to 32 mm: F1.6
      • Lens MountAll In One Lens
      • DORI
      • DORI

        2.8 to 12 mm:

        Wide: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m

        Tele: D: 149.0 m, O: 59.1 m, R: 29.8 m, I: 14.9 m

        8 to 32 mm:

        Wide: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15.0 m

        Tele: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m

      • Illuminator
      • Supplement Light TypeIR
      • Supplement Light Range

        2.8 to 12 mm: Up to 30 m

        8 to 32 mm: Up to 50 m

      • Smart Supplement LightYes
      • Video
      • Main Stream

        Performance mode:

        50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

        60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

        Proactive mode:

        50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

        60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

      • Sub-Stream

        Performance mode:

        50 Hz: 25 fps (640 × 480, 640 × 360)

        60 Hz: 30 fps (640 × 480, 640 × 360)

        Proactive mode:

        50 Hz: 12.5 fps (640 × 480, 640 × 360)

        60 Hz: 15 fps (640 × 480, 640 × 360)

      • Third Stream

        50 Hz: 1 fps (1280 × 720, 640 × 480)

        60 Hz: 1 fps (1280 × 720, 640 × 480)

      • Video Compression

        Main stream: H.264/H.265

        Sub-stream: H.264/H.265/MJPEG

        Third Stream: H.265/H.264

        *Performance mode: main stream supports H.264+, H.265+

      • Video Bit Rate32 Kbps to 8 Mbps
      • H.264 TypeBaseline Profile,Main Profile,High Profile
      • H.265 TypeMain Profile
      • Bit Rate ControlCBR/VBR
      • Scalable Video Coding (SVC)H.264 and H.265 encoding
      • Region of Interest (ROI)4 fixed regions for main stream
      • Audio
      • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
      • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
      • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
      • Environment Noise FilteringYes
      • Network
      • Simultaneous Live ViewUp to 6 channels
      • APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP, OTAP
      • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
      • User/Host

        Up to 32 users

        3 user levels: administrator, operator, and user

      • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS 1.3
      • Network Storage

        NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

        Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

      • ClientHik-Connect (proactive mode also supports), Hik-central Professional
      • Web Browser

        Plug-in required live view: IE 10+

        Plug-in free live view: Chrome 57.0+, Firefox 52.0+

        Local service: Chrome 57.0+, Firefox 52.0+

      • Mobile Communication
      • SIM Card TypeMicroSIM
      • Frequency

        DS-2XS6A46G1-IZS/C36S80:

        LTE-TDD: Band38/40/41

        LTE-FDD: Band1/3/5/7/8/20/28

        WCDMA: Band1/5/8

        GSM: 850/900/1800 MHz




        DS-2XS6A46G1-IZS/C36S80(US):

        LTE-FDD: Band2/4/5/12/13/66/71

        WCDMA: Band2/4/5




        DS-2XS6A46G1-IZS/C36S80(LA):

        LTE-TDD: Band38/40

        LTE-FDD: Band1/2/3/4/5/7/8/12/17/28/66

        WCDMA: Band1/2/3/4/5/8

        GSM: 850/900/1800/1900 MHz




        DS-2XS6A46G1-IZS/C36S80(JP):

        LTE-TDD: Band41

        LTE-FDD: Band1/3/8/11/18/19/21/26/28

        WCDMA: Band1/6/8/19

      • Standard

        DS-2XS6A46G1-IZS/C36S80: LTE-TDD/LTE-FDD/WCDMA/GSM

        DS-2XS6A46G1-IZS/C36S80 (US): LTE-FDD/WCDMA

        DS-2XS6A46G1-IZS/C36S80 (LA): LTE-TDD/LTE-FDD/WCDMA/GSM

        DS-2XS6A46G1-IZS/C36S80 (JP): LTE-TDD/LTE-FDD/WCDMA

      • Image
      • Wide Dynamic Range (WDR)120 dB
      • Day/Night SwitchDay, Night, Auto, Schedule
      • Image EnhancementBLC, HLC, 3D DNR, Defog
      • Image Parameters SwitchYes
      • Image SettingsSaturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
      • SNR≥ 52 dB
      • Privacy Mask4 programmable polygon privacy masks
      • Interface
      • Audio

        1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

        1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

      • Alarm1 input, 1 output (max. 12 VDC, 1 A)
      • On-Board Storage

        Built-in memory card slot, support microSD card, up to 256 GB,

        Built-in 256 GB eMMC storage (256 GB device model supports),

        Built-in 512 GB SSD storage (512 GB device model supports),

        Built-in 1 TB SSD storage (1 TB device model supports)

      • Reset KeyYes
      • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
      • Power Output12 VDC, max. 1000 mA
      • Event
      • Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD error)
      • Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, face detection
      • LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning
      • General
      • Power

        12 VDC ± 20%, 4-pin M8 waterproof connector




        1 TB/512 GB device model:

        1. Standby power consumption: 45 mW

        2. The average power consumption of 24 hours (4G transmission is excluded): 4.5 W

        3. The max. power consumption: 20 W (6 W if without 12 V load)




        Other device model:

        1. Standby power consumption: 45 mW

        2. The average power consumption of 24 hours (4G transmission is excluded): 3 W

        3. The max. power consumption: 18 W (6 W if without 12 V load)

      • MaterialFront cover: metal, body: metal, bracket: metal
      • Dimension816.2 mm × 735.9 mm × 760 mm (32.1" × 28.9" × 29.9") (Max. size of the camera after it is completely assembled)
      • Package Dimension862 mm × 352 mm × 762 mm (33.9" × 13.9" × 30.0")
      • WeightApprox. 26.450 kg (58.3 lb.)
      • With Package WeightApprox. 32.715 kg (72.1 lb.)
      • Storage Conditions-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
      • Startup and Operating Conditions-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
      • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
      • General FunctionAnti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter
      • Battery
      • Battery TypeLithium
      • Capacity360 Wh (90 Wh for each battery)
      • Battery Voltage10.8 V
      • Max. Output Voltage12.6 V
      • Operating Temperature

        Charging: -20 °C to 45 °C (-4 °F to 113 °F)

        Discharging: -20 °C to 60 °C (-4 °F to 140 °F)

      • Battery LifeMore than 500 cycles
      • Cycle Lifetime

        Proactive mode: 5 days, Standby mode: 80 days

        *in cloudy/rainy days (25 °C)

      • Battery WeightApprox. 2.74 kg (6.0 lb.) (0.685 kg (1.5 lb.) for each battery)
      • Approval
      • EMC

        CE-EMC/UKCA (EN 55032:2015+A11:2020+A1:2020,EN 50130-4:2011+A1:2014);

        RCM (AS/NZS CISPR 32: 2015);

        IC (ICES-003: Issue 7)

      • RF

        CE-RED/UKCA (EN 301908-1,EN 301908-2,EN 301908-13, EN 301511,EN 301489-1,EN 301489-52,EN 62133);

        ICASA: same as CE-RED;

        IC ID (RSS-132 Issue 3, RSS-133 Issue 6, RSS-139 Issue 3, RSS-130 Issue 2, RSS-102 Issue 5);

        MIC (Article 49-6-4 and 49-6-5 the relevant articles and MIC Notice No. 1299 of the Ordinance Regulating Radio Equipment)

      • Safety

        CB (IEC 62368-1:2014+A11)

        CE-LVD/UKCA (EN 62368-1:2014/A11:2017)

        LOA (IEC/EN 60950-1)

      • Environment

        CE-RoHS (2011/65/EU);

        WEEE (2012/19/EU);

        Reach (Regulation (EC) No 1907/2006)

      • Protection

        Camera: IP66 (IEC 60529-2013)

        Wind resistance 12 level, up to 40 m/s wind speed resistance
