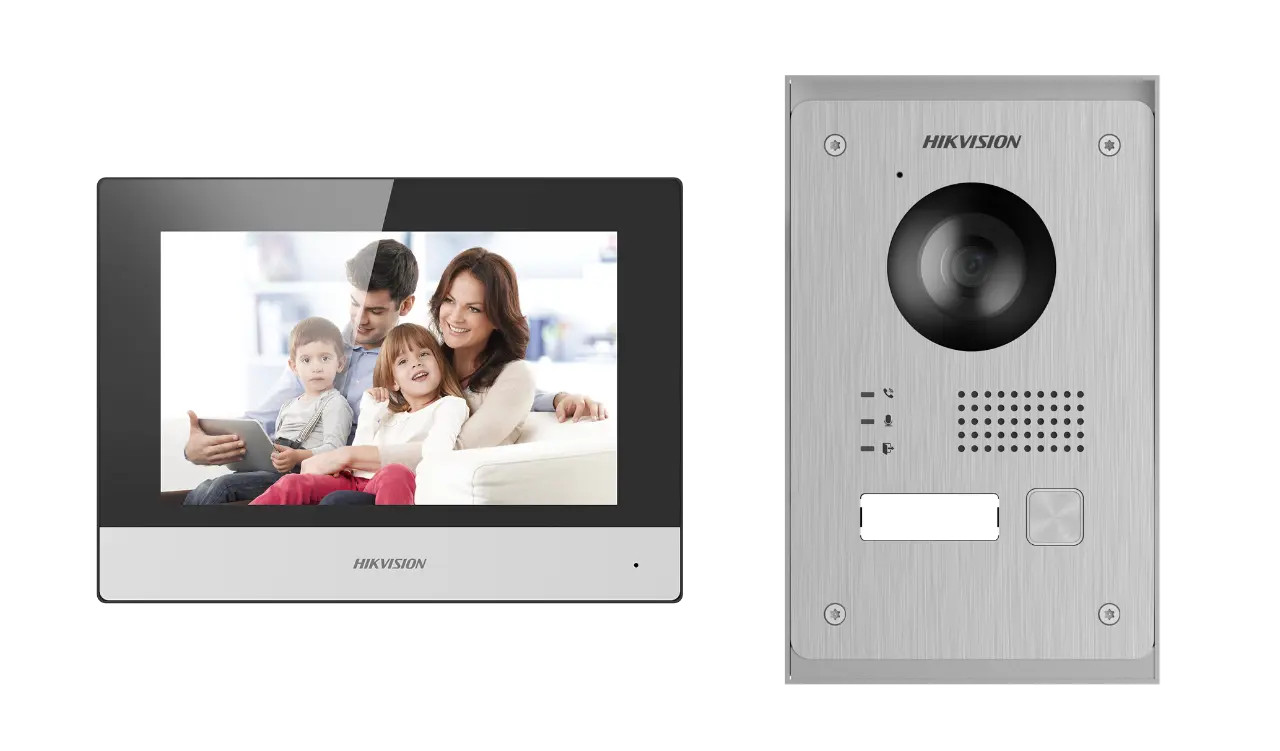

Kit Demo videointerfon IP Hikvision conectare pe 2 fire DS-KIS703-P-D

Descriere

Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde.

Wi-Fi

Wi-Fi sau WiFi este o tehnologie , care permite dispozitivelor electronice sa se conecteze la o retea fara a fi nevoie de fir.Reteaua folosind in general  2,4 gigahertzi UHF  si 5 gigahertzi SHF ISM benzi radio.

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

Atat microfonul cat si difuzorul prezinta capacitatea de a comunica si asculta  persoanele supravegheate, oferind astfel posibilitatea de a fi la curent cu tot ce se intampla in locatia respectiva in orice moment al zilei.Totodata puteti transmite un mesaj audio, direct de pe aplicatia mobila sau laptop.

• Door Station/System Parameters
• Operation SystemEmbedded Linux operation system
• Operation ModeSingle-button
• Flash32 MB
• RAM256 M

• Door Station/Video Parameters
• Camera2MP HD camera
• Resolution

  Main stream: 1920 × 1080p, 720p

  Sub stream: 704 × 576

• Night VisionLow illumination IR supplement mode:3 m
• WDRTrue WDR
• Field Of ViewHorizontal: 144° Vertical: 95°
• Video Compression StandardH.264
• Stream

  Main stream: 1080p@30fps, 720p@30fps

  Sub stream: 4CIF

• Motion DetectionSupport
• BLCSupport
• DNRSupport
• Anti-Flicker Frequency50 Hz, 60 Hz

• Door Station/Audio Parameters
• Audio InputBuilt-in omnidirectional microphone
• Audio OutputBuilt-in loudspeaker
• Audio QualityNoise suppression and echo cancellation
• Audio Compression StandardG.711 U, G.711 A
• Audio Compression Rate64 Kbps
• Audio IntercomTwo-way audio communication

• Door Station/Network Parameters
• Network ProtocolTCP/IP, RSTP
• Wired Network10/100 Mbps Ethernet

• Door Station/Device Interfaces
• RS-4850
• Alarm Input5
• Output12 V/1 A output
• Debugging Port1
• Two-Wire Interface1
• Grounding1
• TAMPER Switch1

• Door Station/General
• Power Consumption＜ 10 W
• Working Temperature-40° C to +60° C(-40° F to 140° F)
• Working Humidity10% to 95%
• InstallationSurface mounting, flush mounting
• Protection LevelIP65
• Indicator3
• HeaterSupport
• Power SupplyFrom indoor station

• Indoor Station/System Parameters
• Operation SystemEmbedded Linux operation system
• Memory128 MB
• Flash32 MB

• Indoor Station/Display Parameters
• Display Screen7-inch TFT touch screen
• Display Resolution1024 × 600
• Operation MethodCapacitive touch screen
• BrightnessAdjustable

• Indoor Station/Audio Parameters
• Audio InputBuilt-in microphone
• Audio OutputBuilt-in loudspeaker
• Audio QualityNoise suppression and echo cancellation
• VolumeLocal adjustable
• Audio Compression StandardG.711 U, G.711 A

• Indoor Station/Network Parameters
• Wired NetworkWi-Fi 802.11 b/g/n
• Wireless Network10/100 Mbps self-adaptive

• Indoor Station/Device Interfaces
• RS-4851
• Alarm Input8
• Two-Wire (Output)1
• Two-Wire (Input)1
• Power Input24VDC
• Debugging Port1

• Indoor Station/General
• Power Supply24VDC
• Power Consumption≤ 8 W
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90%
