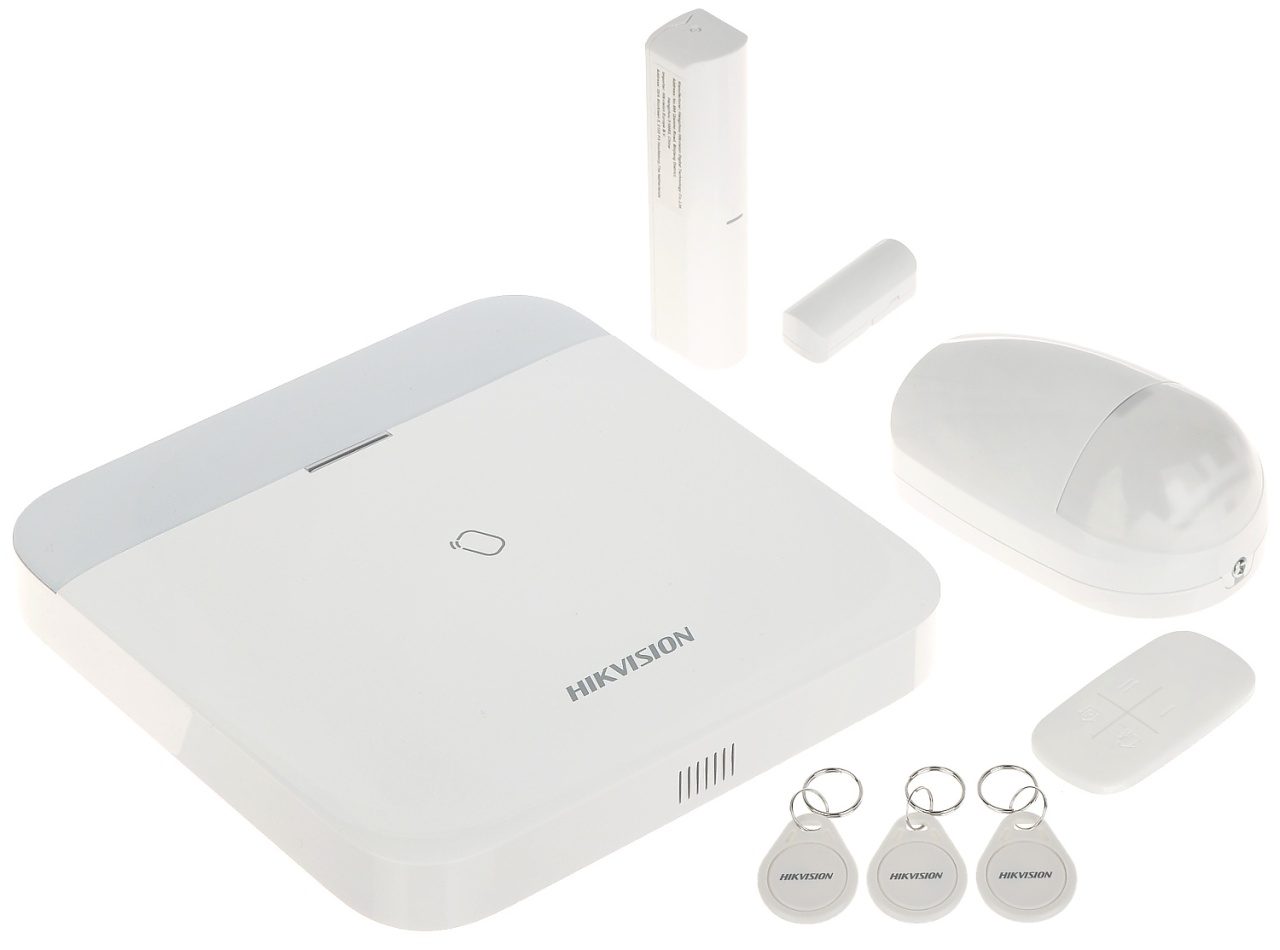

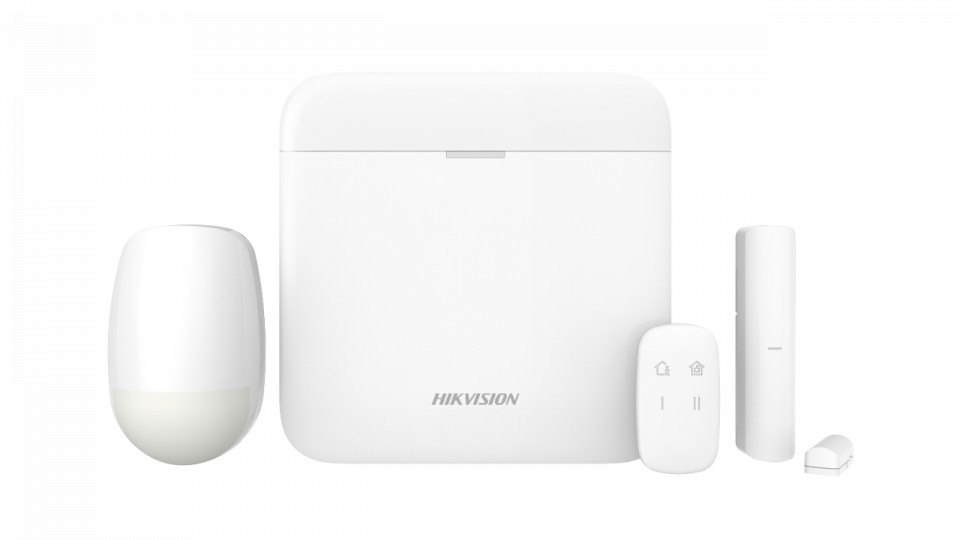

Kit alarma HikVision Wireless AX PRO Middle Level DS-PWA96-KIT-WE

Descriere

Wi-Fi

Wi-Fi sau WiFi este o tehnologie , care permite dispozitivelor electronice sa se conecteze la o retea fara a fi nevoie de fir.Reteaua folosind in general  2,4 gigahertzi UHF  si 5 gigahertzi SHF ISM benzi radio

Senzorul infrarosu pasiv (PIR senzor) este un dispozitiv electronic care masoara radiatia infrarosie emisa de obiectele aflate in campul sau visual.Aparent miscarea este detectata atunci cand un corp cu o anumita temperature (cum ar fi om sau animal) trece prin fata sursei infrarosu (adica un alt corp, obiect) cu o alta temperature, cum ar fi un perete.

Acest lucru  inseamna  ca senzorul detecteaza caldura  de la trecerea unui obiect  prin campul de actiune al senzorului si acel obiect rupe campul pe care senzorul l-a determinat anterior ca fiind “normal”.Orice obiect , chiar unul de aceiasi temperature ca si obiectele din jur va activa senzorul PIR daca corpul se deplaseaza  in campul visual al senzorului.

Toate corpurile emit energie sub forma de radiatie.Radiatiile infrarosii sunt invizibile pentru ochiul uman, dar pot fi detectate de dispositive electronice concepute in acest sens.

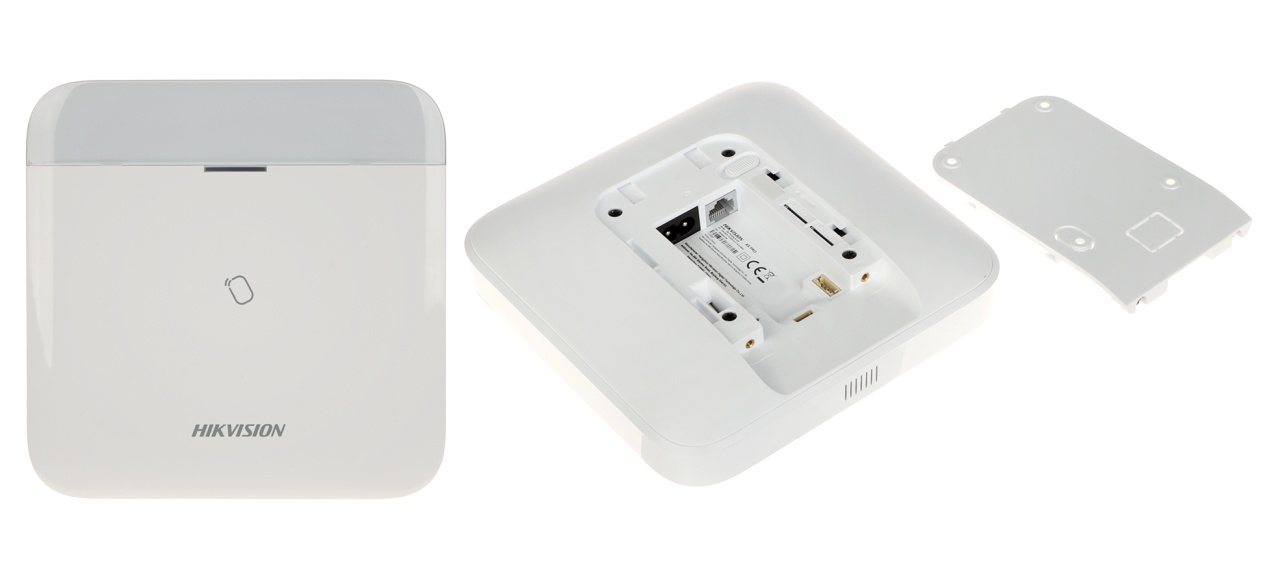

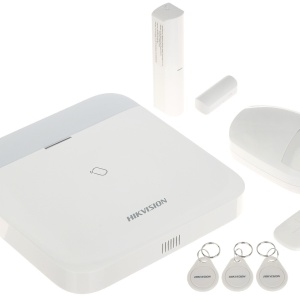

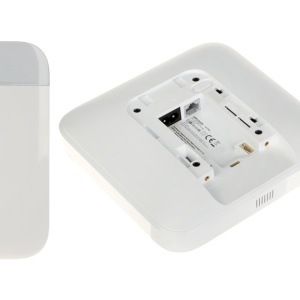

• · DS-PWA96-M-WE x 1

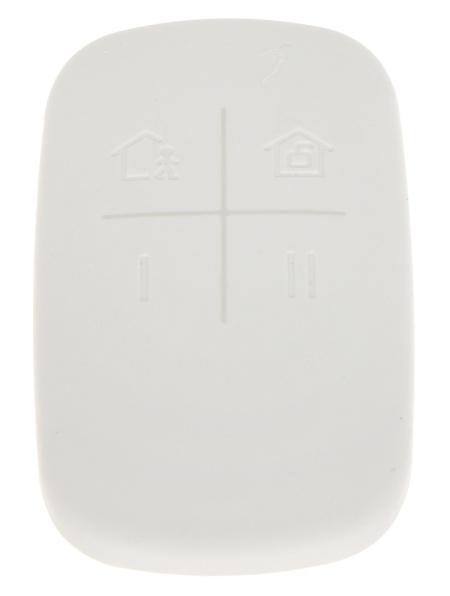

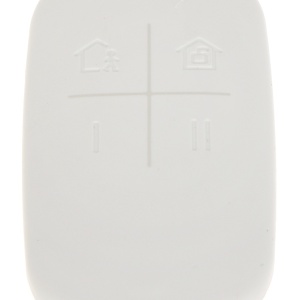

• · DS-PKF1-WE x 1

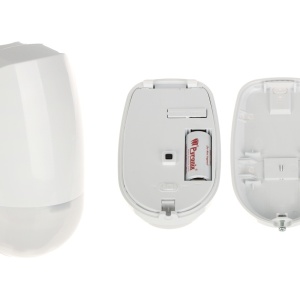

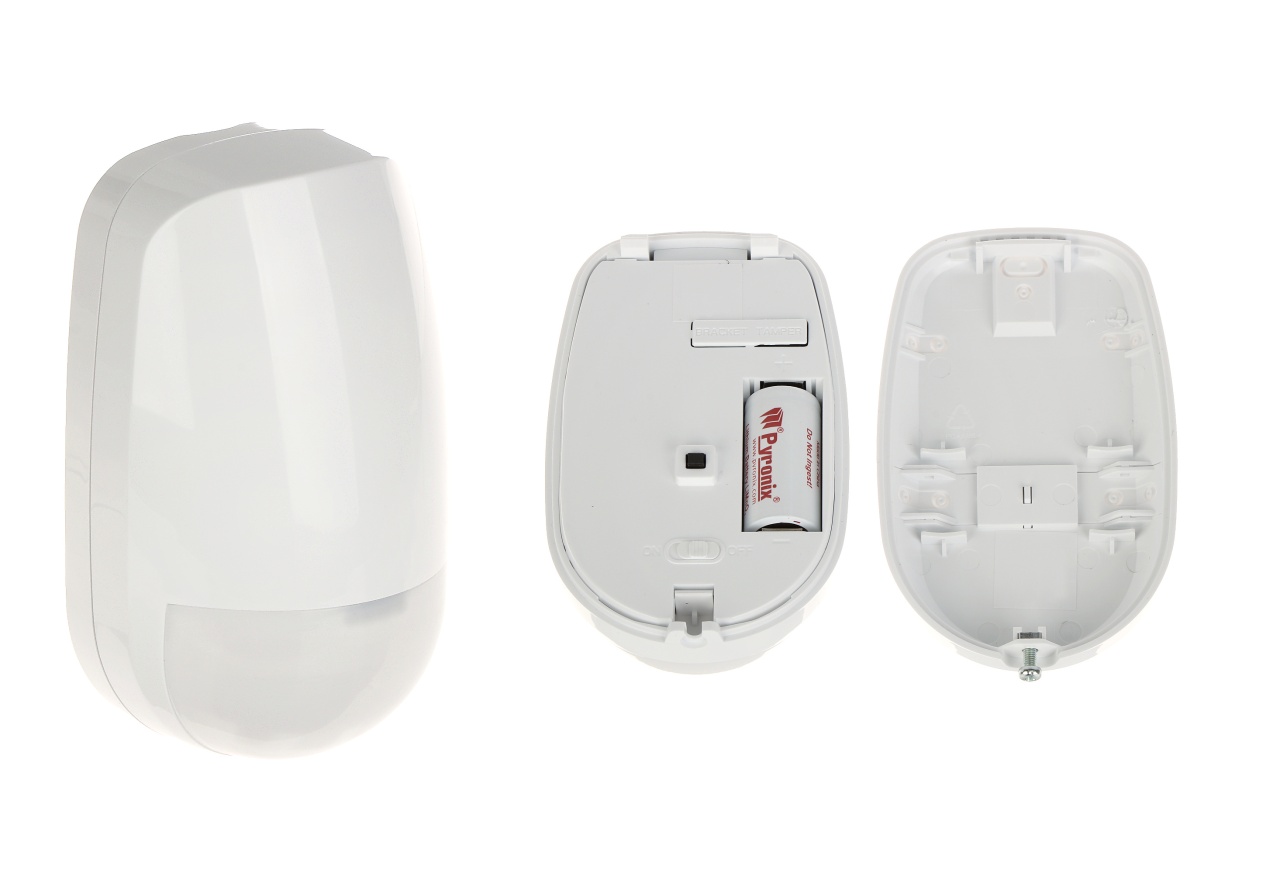

• · DS-PDP15P-EG2-WE x 1

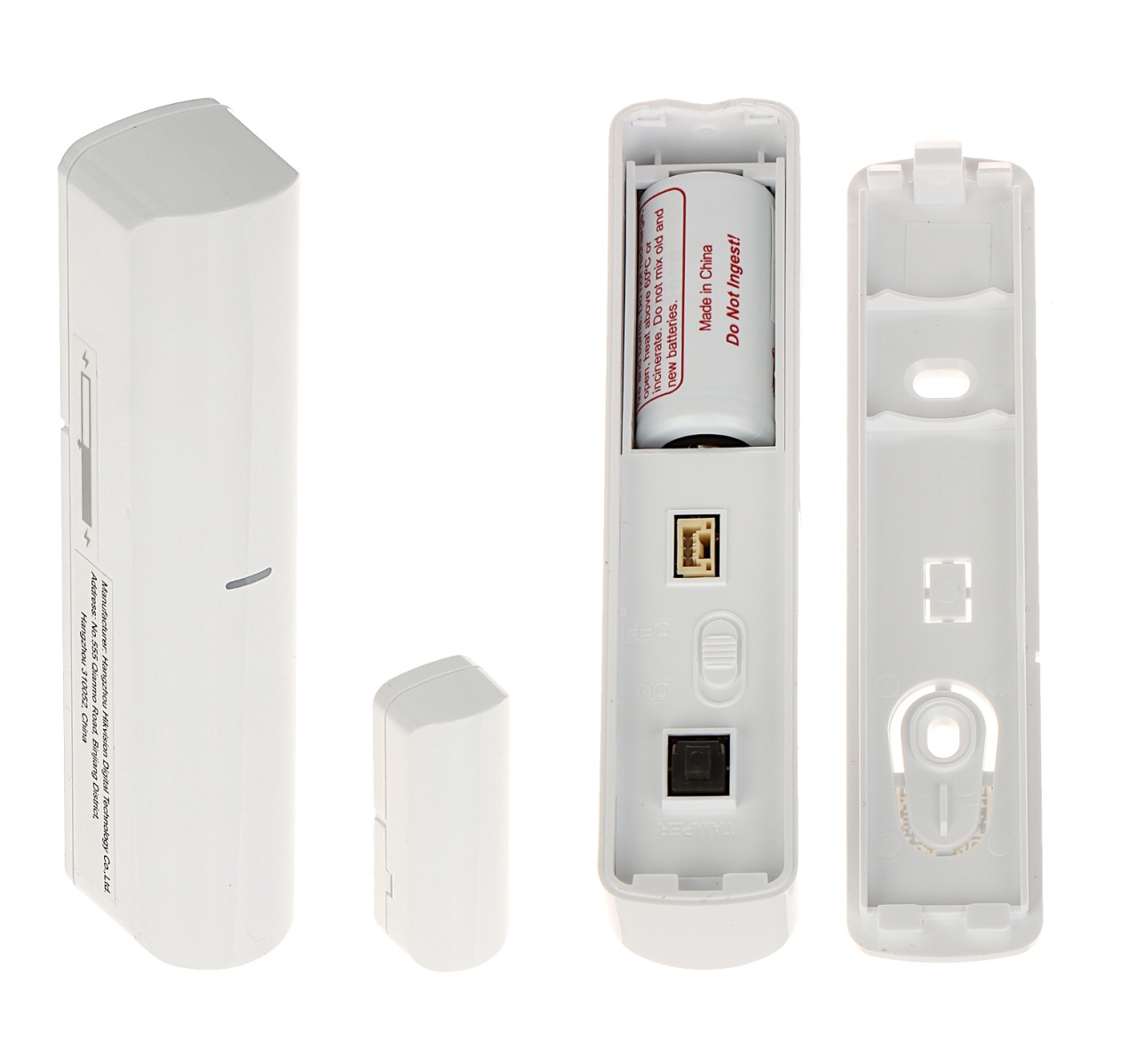

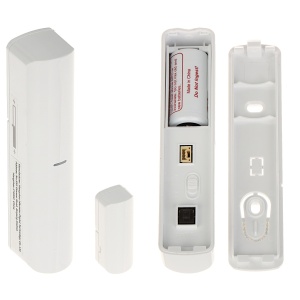

• · DS-PDMC-EG2-WE x 1


• Software Features
• Tag48
• Area

  32

• Zones

  96

• Onboard Video Clips

  4

• Installer1
• User

  46

• Admin1
• Voice Prompt

  Supported

• Loudspeaker Built In

  Supported

• Tag Reader Built In

  Supported

• Memory Log Stored5000
• Programming Tools

  Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud

• Firmware Upgrade

  APP/Web Portal

• Arm Modes

  Away/Stay

• Automatic Arm/Disarm Timers

  Supported

• Forced Arming With Open Zones

  Supported

• Diagnostics Via The APP Or Web

  Supported

• ARC Protocol

  SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK)

  Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685)

  Supports video verification and remote control

• User APP For Operating

  Supported

• Installer APP For ProgrammingSupported
• Web Server For Maintenance (Offline Configuration)Supported

• Hardware Features
• RS232 Output

  Supported

• SIM Slot

  Dual

• RF Transmission
• Two-Way Wireless CommunicationSupport
• RF Frequency

  868Mhz

• Wireless Security







  Frequency Hoping 128 AES Encryption

• 3/4G On Board

  Supported

• Electrical Characteristics
• Power Supply

  Built in power supply

• Battery Type

  Built in on board Battery Li

• Battery Life Span







  12 hours

• Wireless Transmission
• Wired Network

  Supported

• Wi-Fi Standard

  Supported

• Display
• LEDs Status

  Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power

• General
• Operation Temperature

  -10 °C to +55 °C

• Shell Material







  Plastic

• Dimension(WxHxD)

  170.0 mm (6.7") x 170.0 (6.7\") mm x 38.6 mm (1.5\")

• Weight

  557.5 g(19.7 oz)

• Colorwhite

• Device Management
• Keyfob

  48

• Wireless Sounder6
• Keypad

  8 (Including Tag reader)

• Wireless Repeater4
• PIR Cam

  Supported
