Hikvision 1800M Wi-Fi 6 Wireless Router DS-3WR18X

Descriere

Wi-Fi

Wi-Fi sau WiFi este o tehnologie , care permite dispozitivelor electronice sa se conecteze la o retea fara a fi nevoie de fir.Reteaua folosind in general  2,4 gigahertzi UHF  si 5 gigahertzi SHF ISM benzi radio.

• General
• Product Dimension (W × H × D)281.7 mm × 145.0 mm × 204.1 mm
• Package Dimension (W × H × D)365 mm × 340 mm × 73 mm
• Net Weight0.40 kg
• Packing List

  1800Mbps Wi-Fi6 Router x 1

  Power Supply Adaptor × 1

  CAT5e Network Cable × 1

  Quick Start Guide × 1

  Regulatory Compliance and Safety Information × 1

• Packing MethodSingle pack
• Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
• Working Humidity10% to 90% RH non-condensing
• Storage Temperature-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
• Storage Humidity5% to 95% RH non-condensing
• Installation ModeDesktop installation
• Max. Power Consumption≤ 10 W
• Gross Weight0.790 kg

• Wireless Parameter
• Data Rate

  ≤ 1800 Mbps

  5GHz: 1201Mbps

  2.4GHz: 574Mbps

• Wireless Standard

  IEEE 802.11a/n/ac/ax @5GHz

  IEEE 802.11b/g/n/ax @2.4GHz

• Transmitting Power

  CE:

  ＜20dBm(2.4GHz)

  ＜23dBm(5GHz)

• Wireless Performance

  MU-MIMO supported

  TxBeamforming supported

• Receiving Sensitivity

  5GHz:

  -89dBm@HE80-MCS0

  -60dBm@HE80-MCS11

  2.4GHz:

  -93dBm@HT40-MCS0

  -73dBm@HT40-MCS7

• Antenna5 high gain antennas

• Hardware Parameter

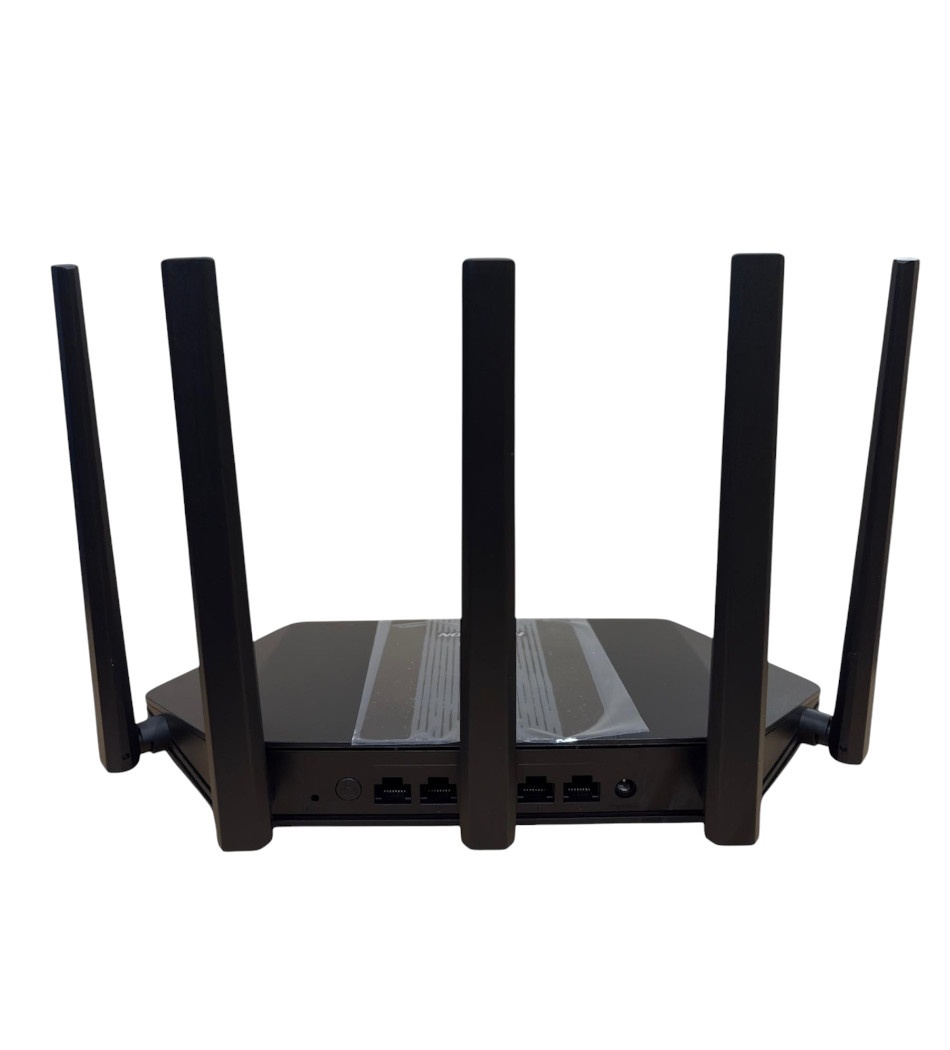

• Network Interface

  1 × 10/100/1000 Mbps Adaptive WAN Port

  3 × 10/100/1000 Mbps Adaptive LAN Ports

• LED IndicatorLED indicator
• ResetReset button
• Power Supply MethodPower Supply Adapter
• Power SpecificationsDC 12 V, 1 A

• Software Function
• Application function

  Routing Mode, Wireless Relay Mode, Wired Bridge Mode supported

  DHCP Server supported

  Guest Network Configuration supported

  Signal Adjustment supported

  WiFi Schedule supported

  Daylight Saving Time supported

  VLAN,

  WAN Self-Adaption

  IPv6

  Time Synchronization

  Quick Diagnosis

  PPPoE

  DHCP

  Support accessing the Internet through static IP mode

• Security ModeWPA2-PSK,WPA/WPA2-PSK,WPA2-PSK/WPA3-SAE supported
• Security Mechanism

  Support fast and secure WPS connection

  Support hiding wireless network name

  Support controlling terminal network connection

  Support firewalls

  Login Authentication

  VPN Client

  Port Mapping

  DMZ

  UPNP

• Management MethodWeb, HPP, HC
• UpgradeWeb, App Update and Upgrade
• System LogSystem log
