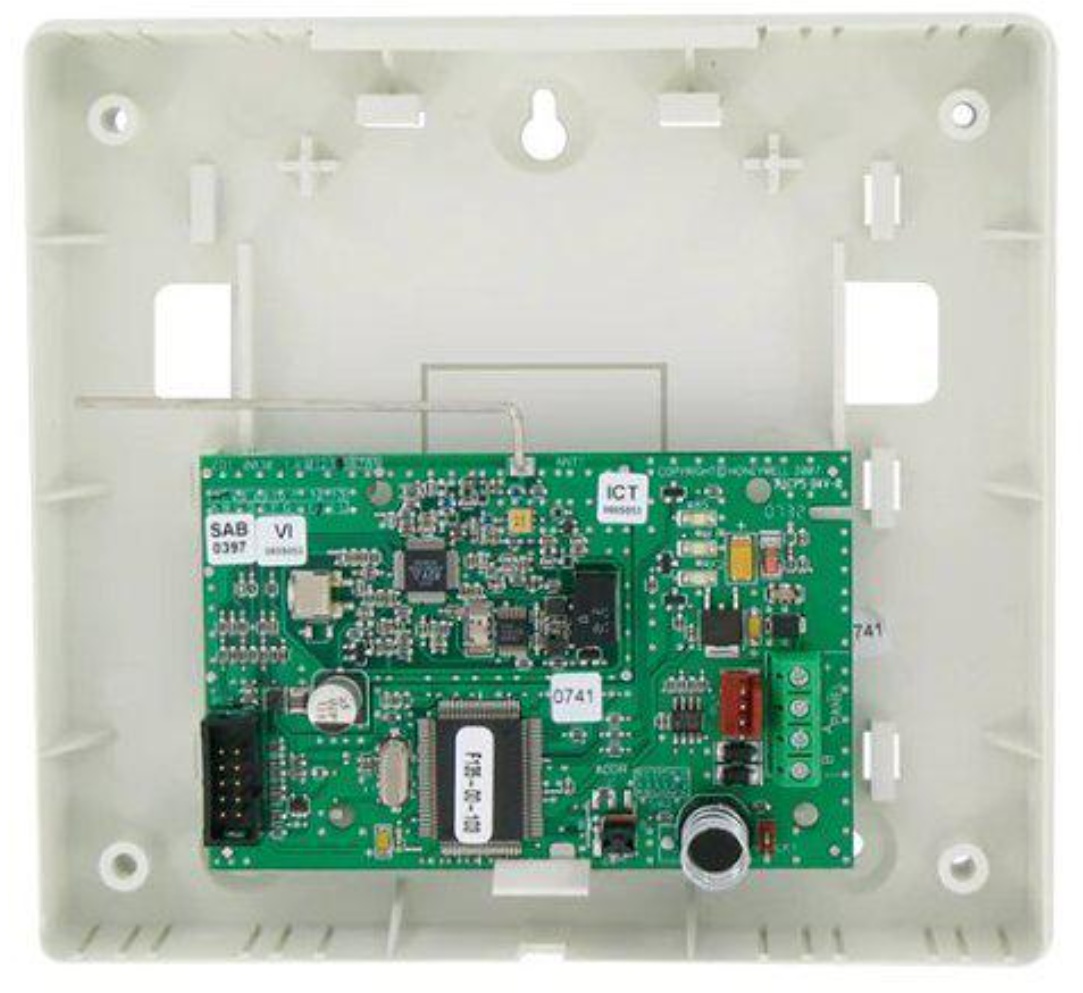

GXY RIO BOXED, compatibil pentru versiunile Dimension, Flex V1, Flex V3 ,G2, Honeywell C072

Descriere

cription GD-48 GD-96 GD-264 GD-520
Zones onboard (maximum)
Inclusive wireless zones
16 - (48)
32
16 - (96)
80
16 - (264)
192
16 - (520)
192
Outputs (400mA) on-board 8 8 8 8
Trigger outputs on flying lead (10mA) 6 6 6 6
Integrated PSU 2,5 A 2,5 A 2,5 A 2,5 A
Output Current rating 1.2A 1.2A 1.2A 1.2A
RS485 Databuses 1 2 2 4
Keypads (Keyprox) 8 (3) 16 (7) 16 (7) 32 (24)
Bus mounted prox readers (MAX) 4 16 16 32
DCMs with 2 x Wiegand interfaces 4 16 16 32
DCM controlled doors 8 32 32 64
Wireless Portals 4 8 8 8
Users 100 250 1000 1000
7 Day Timer Schedules 19 35 67 67
Zone types 52 52 52 52
O/P types 81 81 81 81
Library Yes Yes Yes Yes
Event Log 1000 1500 1500 1500
Access Log 500 1000 1000 1000
Multi-users Yes Yes Yes Yes
Autoset Yes Yes Yes Yes
Pre-Check Yes Yes Yes Yes
Timed Lockout Yes Yes Yes Yes
Links 64 128 256 256
Part Set Yes Yes Yes Yes
Silent Part Set Yes Yes Yes Yes
RS232 Built-in Built-in Built-in Built-in
Integrated PSTN (V 22) Built-in Built-in Built-in Built-in
Printer Output Via RS232 Via RS232 Via RS232 Via RS232
Remote Servicing Yes Yes Yes Yes
Ethernet module Optional Optional Optional Optional
GSM/GPRS module Optional Optional Optional Optional
Groups 8 16 32 32
Audio Verification channels 8 32 32 32
SMS text Yes Yes Yes Yes
ISDN Optional Optional Optional Optional
Mobile App* Yes Yes Yes Yes
EN50131 Compliant to EN50131-3:2009, EN50131-6:2008,
PD6662:2010 and certified by a third party testing agency
