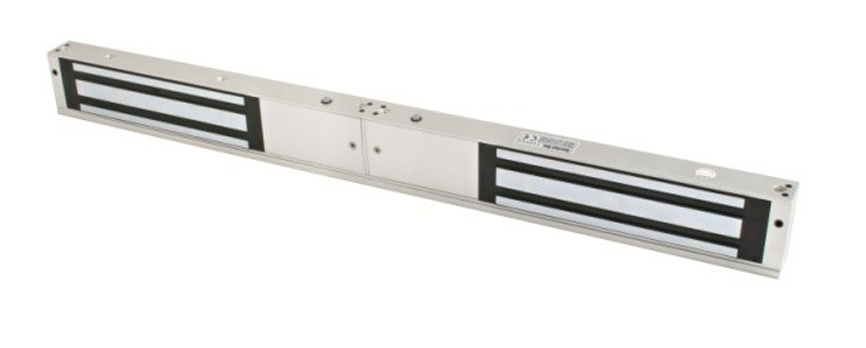

Electromagnet magnetic lock HikVision DS‑K4H250D, sustine forte statice liniar de 2×272 kg, alimentare 12/24 VDC, MOV intern, indicator LED status usa, materiale rezistente la abraziune, compatibil cu sisteme control acces

Descriere

• Indicator

  Green: Locked

  Red: Unlocked

• Power supply

  12 VDC/500 mA

  24 VDC/250 mA

• Working temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working humidity0 to 95% (relative Humidity)
• Dimensions

  Lock body: 240 mm × 49 mm × 25.5 mm (9.45" × 1.93\" × 1.00\")

  Armature Plate: 180 mm × 38 mm × 11 mm (7.1 × 1.5\" × 0.4\")"

• Weight2.1kg (4.63 lb)
• Material

  Shell: hard Anodizing Electroplating Operated

  Lock Body: eco-friendly Zinc with Electroplating Operated

  Armature Plate: eco-friendly Zinc with Electroplating Operated

• ThrustMax. 272 kg (599.8 lb) linear thrust
• Door typeSingle leaf, double leaf, wooden door, glass door, metal door, fireproof door
• Signal outputDry Contact Signal Output, Support Maximum Power Rate of 3A, NO Output While Locking and NC Output While Unlocking
• Dimensions

  Lock Body: 238 mm × 45 mm × 25 mm (9.4" × 1.8\" × 1.0\")

  Armature Plate: 182 mm × 38 mm × 12.5 mm (7.2 × 1.5\" × 0.5\")"

• Weight2.1 kg (4.6 lb)
• Material

  Shell: hard Anodizing Electroplating Operated

  Lock Body: eco-friendly Nickel Electroplating Operated

  Armature Plate: eco-friendly Zinc Electroplating Operated

• ThrustMax. 280 kg (617 lb)
• Door typeSingle leaf, double leaf, wooden door, glass door, metal door, fireproof door

• Magnetic Lock/General
• Unlock methodCurrent Interruption
• Surface temperature≤ Ambient Temperature +20 °C (68 °F)
