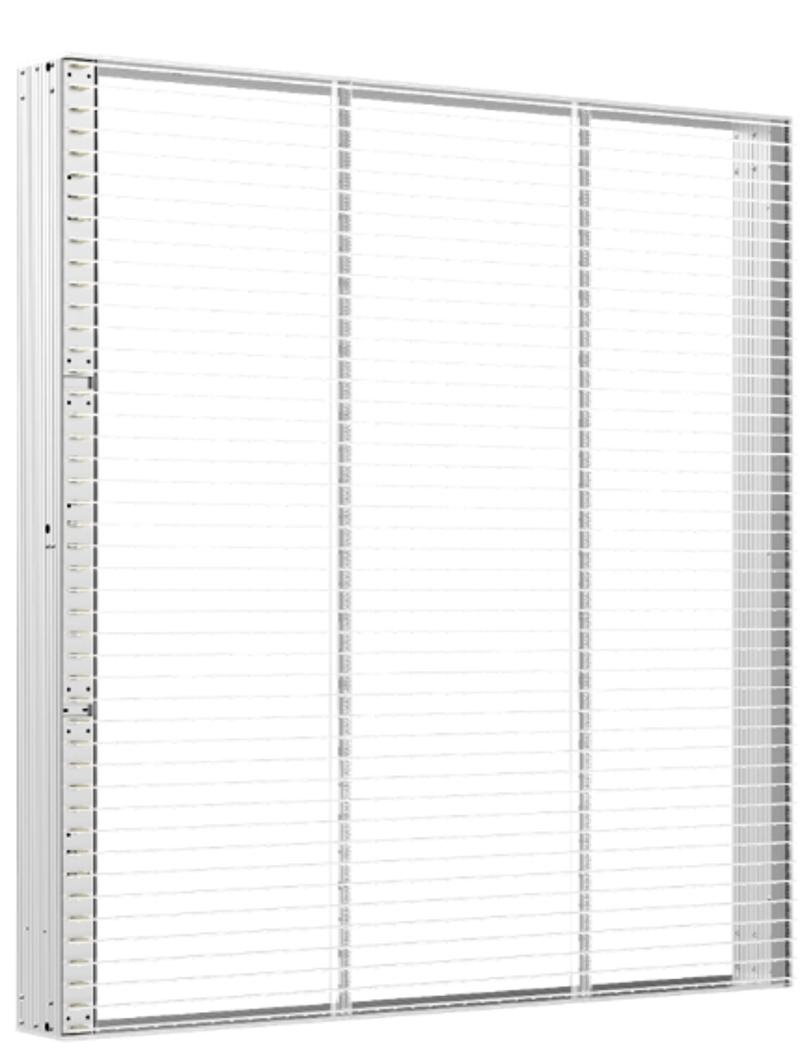

Ecran LED color transparent 2500 nit brightness Hikvision DS-D4239TI-SLC

Descriere

• Cabinet
• Pixel Configuration1R1G1B
• Pixel PitchHorizontal: 3.9 mm, Vertical: 7.8 mm
• Dimensions (W × H × D)Different dimensions for flexible splicing: 1 m × 1 m, 1 m × 0.75 m, 0.75 m × 1 m, 0.75 m × 0.75 m, 1 m × 1.25 m, 1.25 m × 1 m
• Weight15 kg/㎡
• Pixel Density32768 dot/㎡
• Cabinet MaterialAluminum alloy
• Protection LevelIP43

• Display
• White Balance BrightnessTypical：2000 nits（2500nits Peak）
• Color Temperature2000K to 10000K adjustable
• Viewing Angle120° (H)/120° (V)
• Brightness Uniformity≥ 98%
• Color Uniformity± 0.001 Cx, Cy
• Contrast Ratio≥ 3000:1
• Transmittance60%
• Display Color281.4 trillion

• Processing Performance
• Brightness ControlManual/Auto
• Driving MethodConstant current driving 1/4 scan
• Frame Frequency60 Hz
• Refresh Rate≥ 1920 Hz
• Grey Level65536 Level
• Processing Depth16 bits

• Power
• Max. Consumption800 W/㎡
• Average Consumption300 W/㎡
• Input Voltage110 to 220 VAC ± 15%

• Working Environment
• Working Temperature-10 ℃ to 65 ℃ (14 ℉ to 149 ℉)
• Working Humidity10% to 90%
• Storage Temperature-20 ℃ to 90 ℃ (-4 ℉ to 194 ℉)
• Storage Humidity10% to 90%
