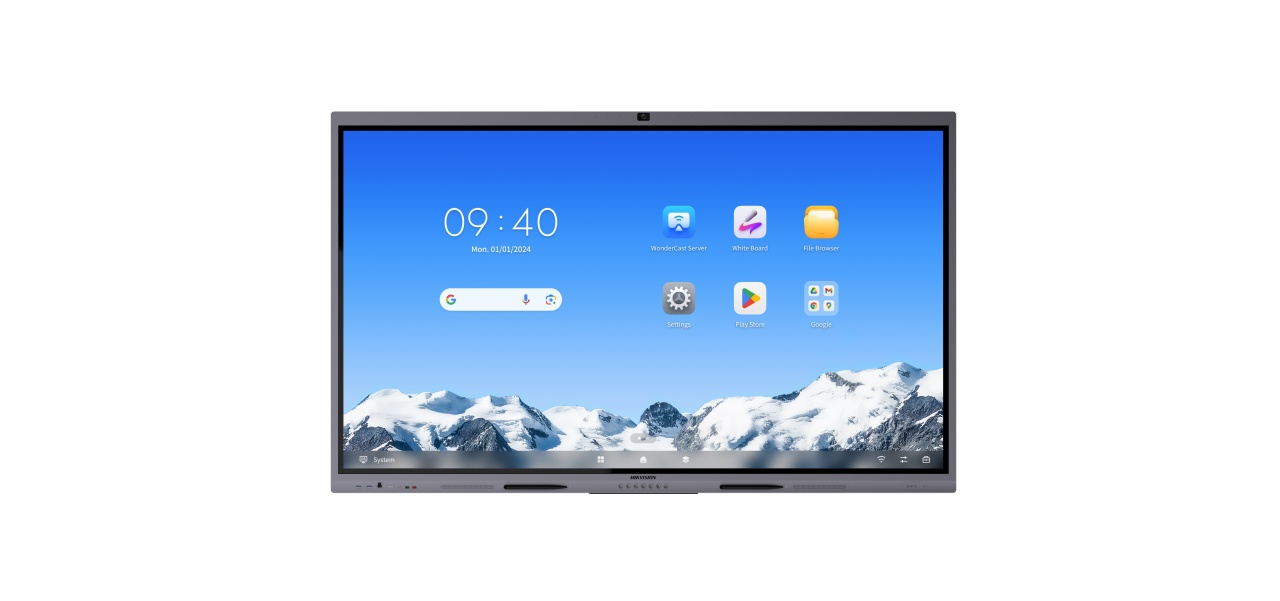

Ecran interactiv LED HikVision DS-D5C86RB/B2L(EDLA), 86 inch, camera 8MP, 4K UHD, Android 14, 8GB RAM, 128GB stocare, microfon, NFC, certificare EDLA, design anti-glare, difuzoare 45W, Bluetooth, senzori mediu, VESA 800x600

Descriere

Un monitor LED sau afisaj LED este un ecran plat , un monitor , computer cu ecran plat sau televizor . Are o adancime foarte scurta si este usor din punct de vedere al greutatii. Diferenta reala intre acesta si un monitor LCD tipic este lumina de fundal .

Monitoarele LED ofera multe avantaje in comparatie cu cele care sunt aprinse CCFL , inclusiv : costuri reduse , interval de intunecare mai larg , mai fiabile , consum redus de energie , raport de contrast dinamic mai mare , durata de viata mai lunga si impact diminuat asupra mediului.

• Product Model
• Product ModelDS-D5C86RB/B2L

• Display
• Screen Size86 inch
• BacklightDLED
• Pixel Pitch0.164 (H) × 0.493 (V) mm
• Resolution3840 × 2160 @60 Hz
• Brightness480 cd/m² (Typ.)
• Color Depth10 bit (8 bit + FRC)
• Display Color1.07 G
• Response Time5 ms
• Panel TypeVA
• Contrast Ratio

  5000:1 (Static)

  30,000:1 (Dynamic)

• Color Gamut72% NTSC (CIE1931) (Typ.)
• Refresh Rate60 Hz
• Viewing Angle178° (H)/178° (V)
• Aspect Ratio16:9
• Surface Hardness

  9H (Pencil)

  7 (Mohs)

• Surface GlassAnti-Glare & Anti-Fingerprint glass
• Surface Haze25% Haze
• Glass Bonding MethodZero Lamination
• Display Area1895.04 × 1065.96 mm
• Working Duration7 × 16 H
• Transmittance88% ± 3
• Lifespan50,000 hours

• Touch
• TypeInfrared Touch Screen
• Touch PointUp to 50-point multi-touch
• Touch Response Time≤ 2 ms
• Minimum Touch Object≥ 1.5 mm (≥ 90% touching area)
• Touch Precision± 0.5 mm (≥ 90% touching area)
• Touch Resolution32768 × 32768

• Built-in System
• Operation SystemAndroid 14.0
• Memory8 GB
• Built-in Storage128 GB
• ProcessorQuad-core Cortex-A76 × 4（2.4 GHz）and quad-core Cortex-A55 × 4（1.8 GHz）
• GPUMali-G610 MC4
• HDCP Version2.3 & 2.0 & 1.4

• Camera
• PixelPixel 48 MP for Photos & 8 MP for Video
• Camera FunctionSupport intelligent switching between Android system, OPS, and PC.
• Field Angle93.4° (diagonal), 84.5° (horizontal), 54.1° (vertical)
• Distortion≤ 2.5%
• Camera Resolution RatioUp to 4K

• Microphone
• SpecificationOmni-directional 8-array layout
• Mic FunctionEcho reduction and smart noise-cancellation
• Voice Distance12 m
• Sampling Rate32 K
• Mic Depth16 bit

• Internal Function
• LoudspeakerBuilt-in 2 × 20 W + 25 W loudspeaker;
• BluetoothBuilt-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.4
• NFC

  Support card reader

  13.56 MHz, (ISO 14443A/ ISO 14443B/ ISO 15693)

• Light SensorYes
• Image Processing TechnologySupport 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging; support shadow correction.
• Audio Processing TechnologySupport dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection.
• Humidity and Temperature SensorRelative humidity accuracy: up to ± 1.5 %RH; Temperature accuracy: up to ± 0.1 °C

• Interface
• Video & Audio Input

  HDMI 2.1 TMDS × 3（Front x 1; Rear x 2; Support HDCP2.3 & 2.0 & 1.4; Support HDMI CEC protocol）

  VGA × 1（Rear）

  Audio × 1（Rear）

• Video & audio output

  HDMI 2.1 TMDS × 1（Rear）

  Audio × 1（Rear）

  SPDIF × 1（Rear）

• Control interface

  TOUCH-USB 3.0 × 1（Front × 1）

  TOUCH-USB 2.0 × 2（Rear × 2）

  RS232 × 1（Rear）

• Network Interface

  LAN (1000 Mbps) × 2（Rear）

  Wi-Fi AP & Station, 2.4 G/5 G

  Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP

• Data Transmission Interface

  USB 3.0 × 4（Front × 2; Rear × 2）

  USB 2.0 × 1（Rear）

  Type-C × 2 (Front × 1; Rear × 1; Support USB 2.0, 100 W charging functions, DP IN 1.2 )

• Power
• Power Supply100 to 240 VAC, 50/60 Hz
• Standby Consumption≤ 0.5 W
• Average Consumption< 274 W

• Working Environment
• Working Temperature0 °C to 40 °C (32 °F to 104 °F)
• Working Humidity10%~90% RH

• General
• VESA800 mm × 600 mm (4 × M8-25 mm)
• AccessoryWall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5 M HDMI cable (2.0), 3 M power cable, remote control, screen cleaning cloth.
• Package Dimensions (W × H × D)2157 × 1345 × 223 mm
• Net Weight58.9 ± 0.5 kg
• Gross Weight78.9 ± 0.5 kg
• Product Dimensions （With Wall Attachment）1960.4 × 1173.7 × 114.5 mm
• Product Dimensions （Without Wall Attachment）1960.4 × 1173.7 × 82.5 mm
