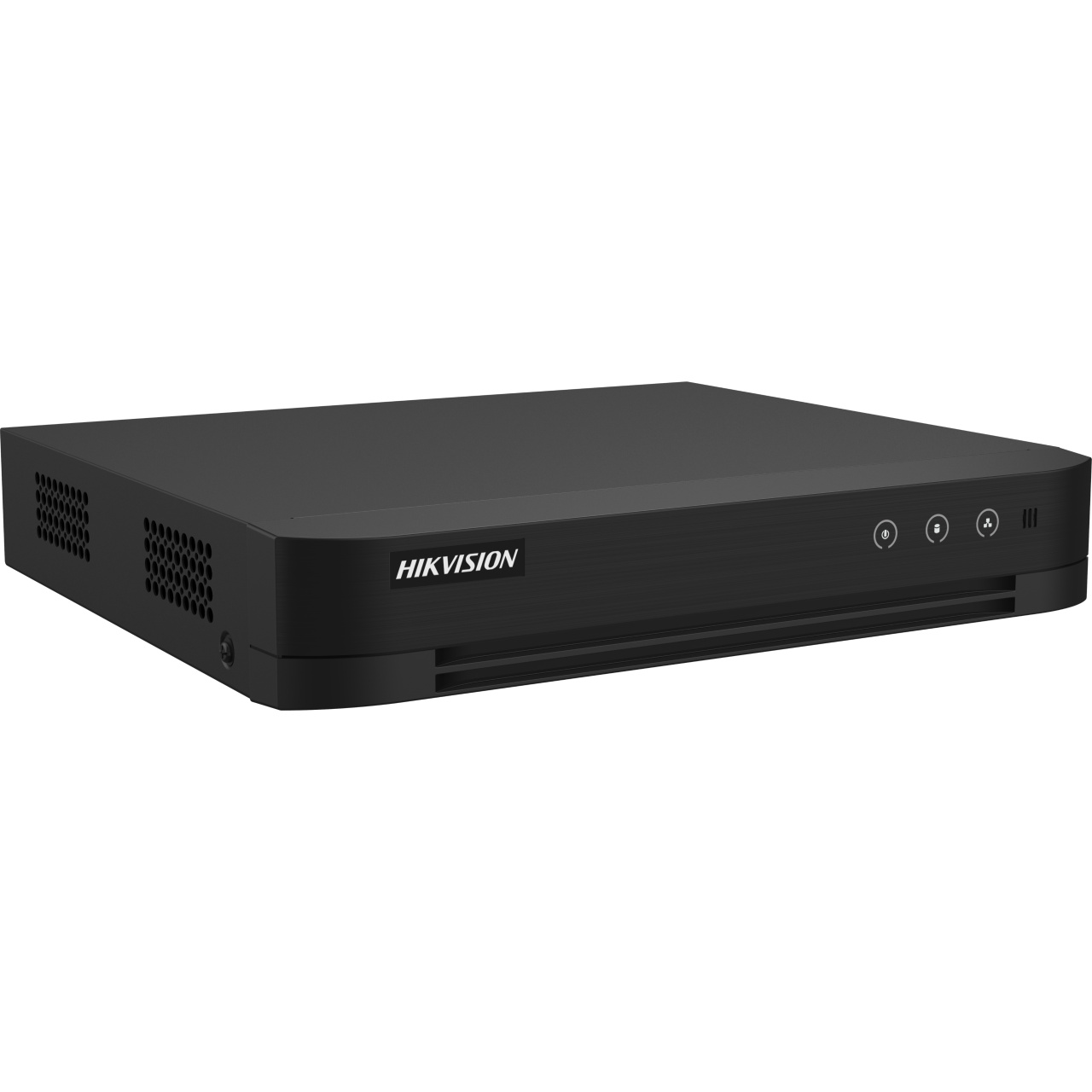

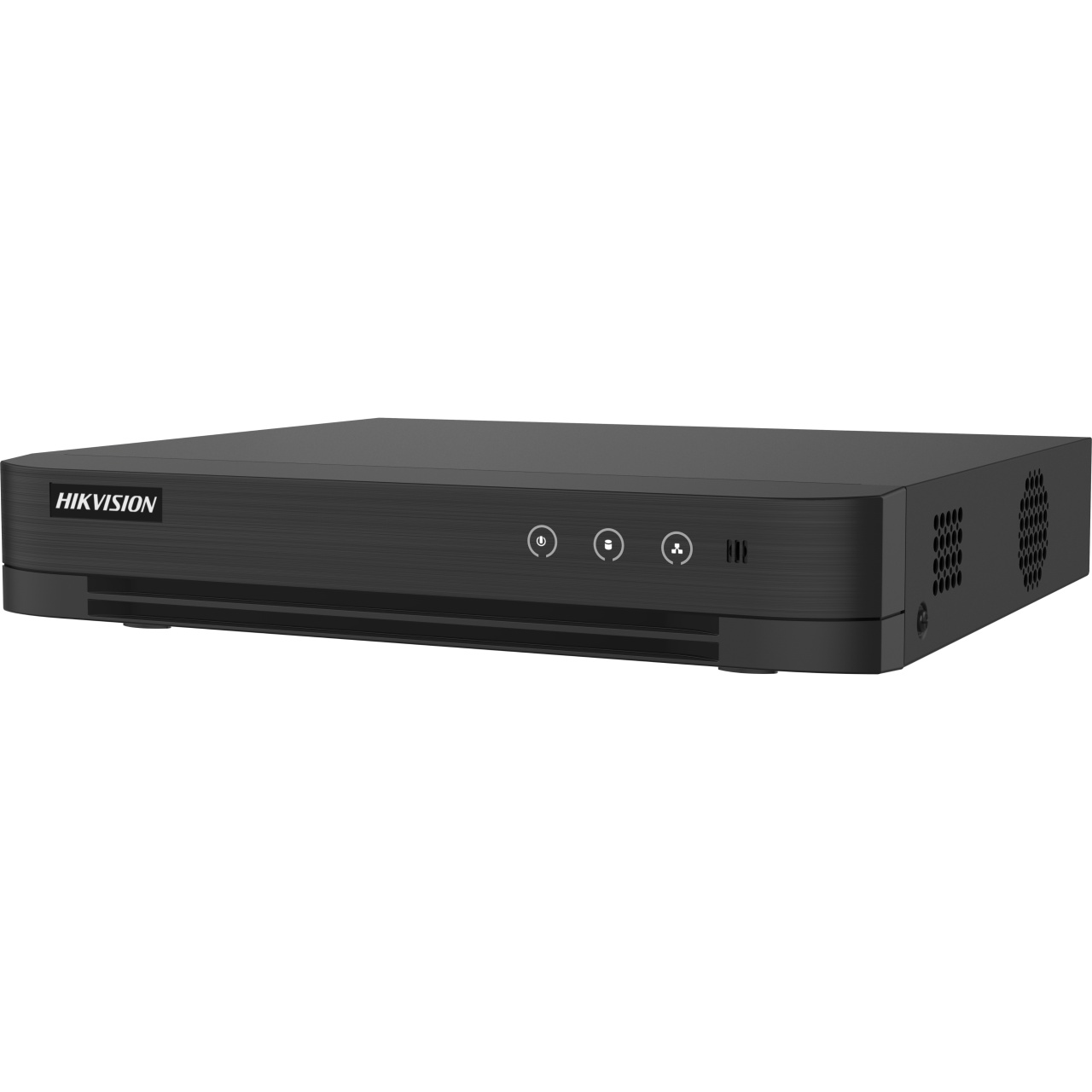

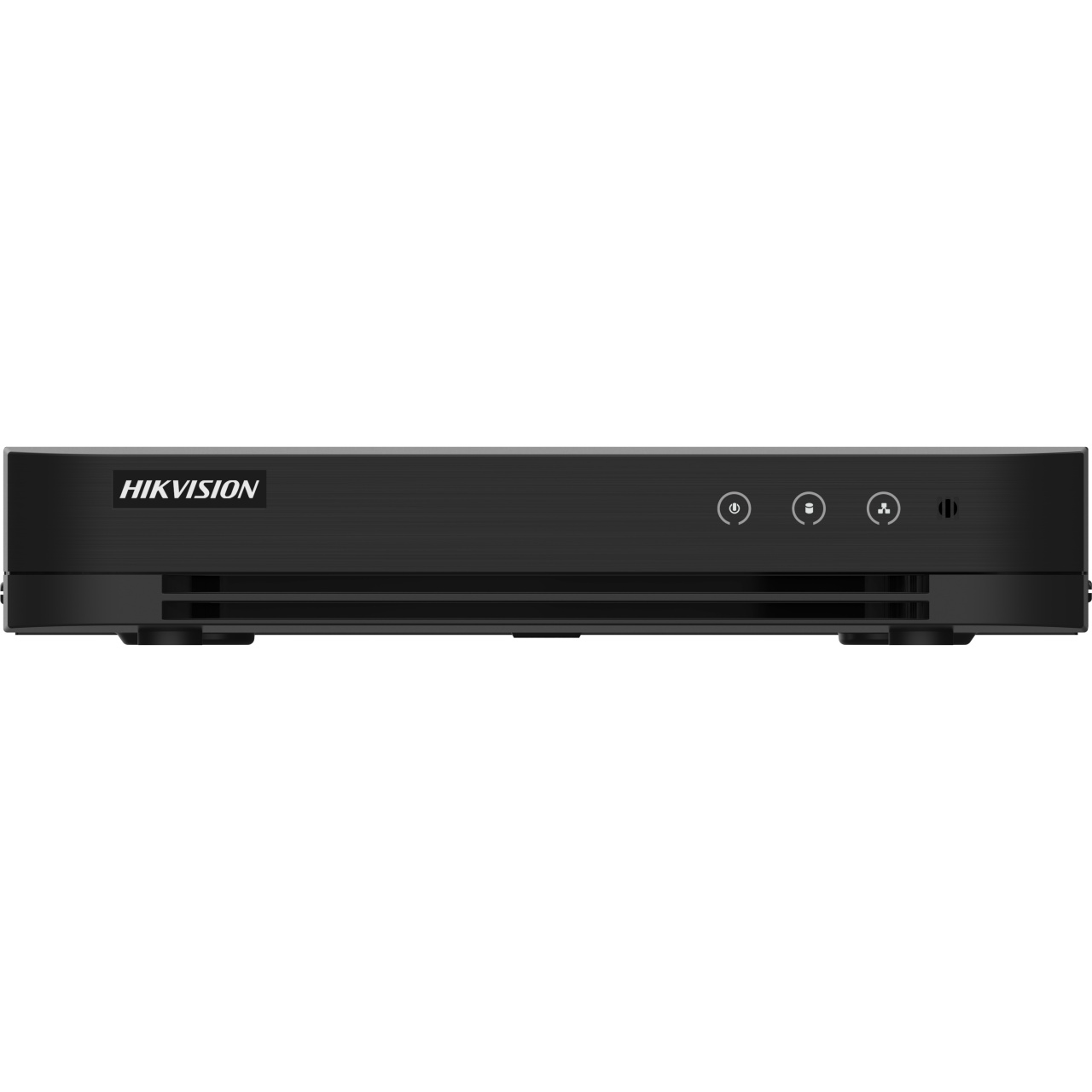

DVR HikVision iDS-7208HQHI-M1/T, 8 canale analog + 12 canale IP, deep learning perimeter protection & Motion Detection 2.0, H.265 Pro+/Pro/H.265 compression, up to 3K/5M Lite@12fps, HDTVI/AHD/CVI/CVBS/IP
Descriere
H.265 Pro+
H.265+ imbunatateste dramatic eficienta codificarii: reducerea cerintelor privind latimea de banda cu pana la 75% fata de H.2645 si ocuparea a jumatate din spatiul de stocare pentru acelasi numar de inregistrari video. H.265+ reprezinta un pas important in compresia video si inseamna economii semnificative ale costurilor de stocare pentru utilizatori.
Functia AcuSense filtreaza si elimina alarmele false (pasari, frunze, ploaie, lumina) cu o acuratete de peste 90%.
Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde
Monitorizarea de la distanta
Ofera posibilitatea de a urmari locuita personala sau spatiul comercial de la distanta, prin intermediul unui smartphone, tableta sau laptop. Aceasta este o solutie optima, pentru a vedea transmisia sistemului video de supraveghere detinut intr-o anumita locatie cu ajutorul unei conexiuni la internet, 3G sau 4G.
- Motion Detection 2.0
- Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Facial Detection
- Facial Detection and CaptureFace picture detection, face picture search
- Video and Audio
- IP Video Input
2-ch (up to 10-ch)
Enhanced IP mode on:
4-ch (up to 12-ch), each up to 4 Mbps
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input
8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDTVI Input3K(2960 x 1665)@25/20 fps, 3K(3328x1504)@20fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 2K(2304 x 1296)@20 fps, 1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
- AHD Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- HDCVI Input3K(2880 × 1620)@20/25 fps, 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- CVBS InputPAL/NTSC
- HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- Video Output ModeHDMI/VGA simultaneous output
- Audio Input1-ch(up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Synchronous Playback8-ch
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution
When 1080p Lite mode is not enabled:
2K/3K lite/5 MP lite/4 MP lite/3MP/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
2K/3K lite/5 MP lite/4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
- Frame Rate
Main stream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP@10fps;1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 2K stream access: 2K@10fps;1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3K lite/5 MP lite@12fps;4 MP lite@15fps;3 MP/2K@10fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
- Video Bitrate32 Kbps to 6 Mbps
- Dual-streamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Network
- Total Bandwidth96 Mbps
- Remote Connection64
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
- Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
- Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
- Auxiliary Interface
- SATA1 SATA interface
- CapacityUp to 10 TB capacity for each disk
- Alarm In/OutN/A (optional to support);4/1
- USB InterfaceReal panel: 2 × USB 2.0
- General
- Power Supply12 VDC, 1.5 A
- Consumption≤ 12 W (without HDD)
- Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)263 × 220 × 48 mm (10.3 × 8.7 × 1.9 inch)
- ≤ 1 kg (without HDD, 2.2 lb.)
