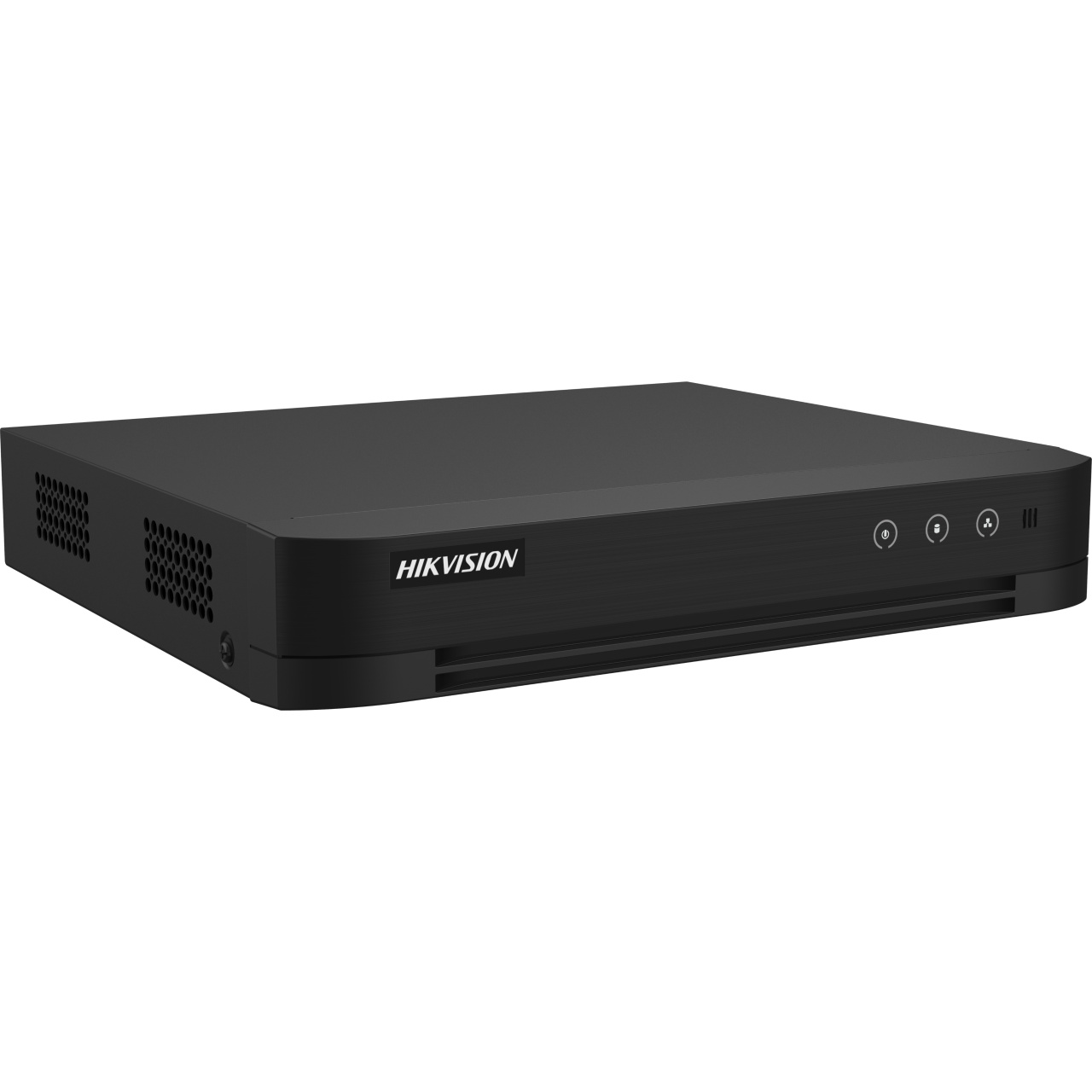

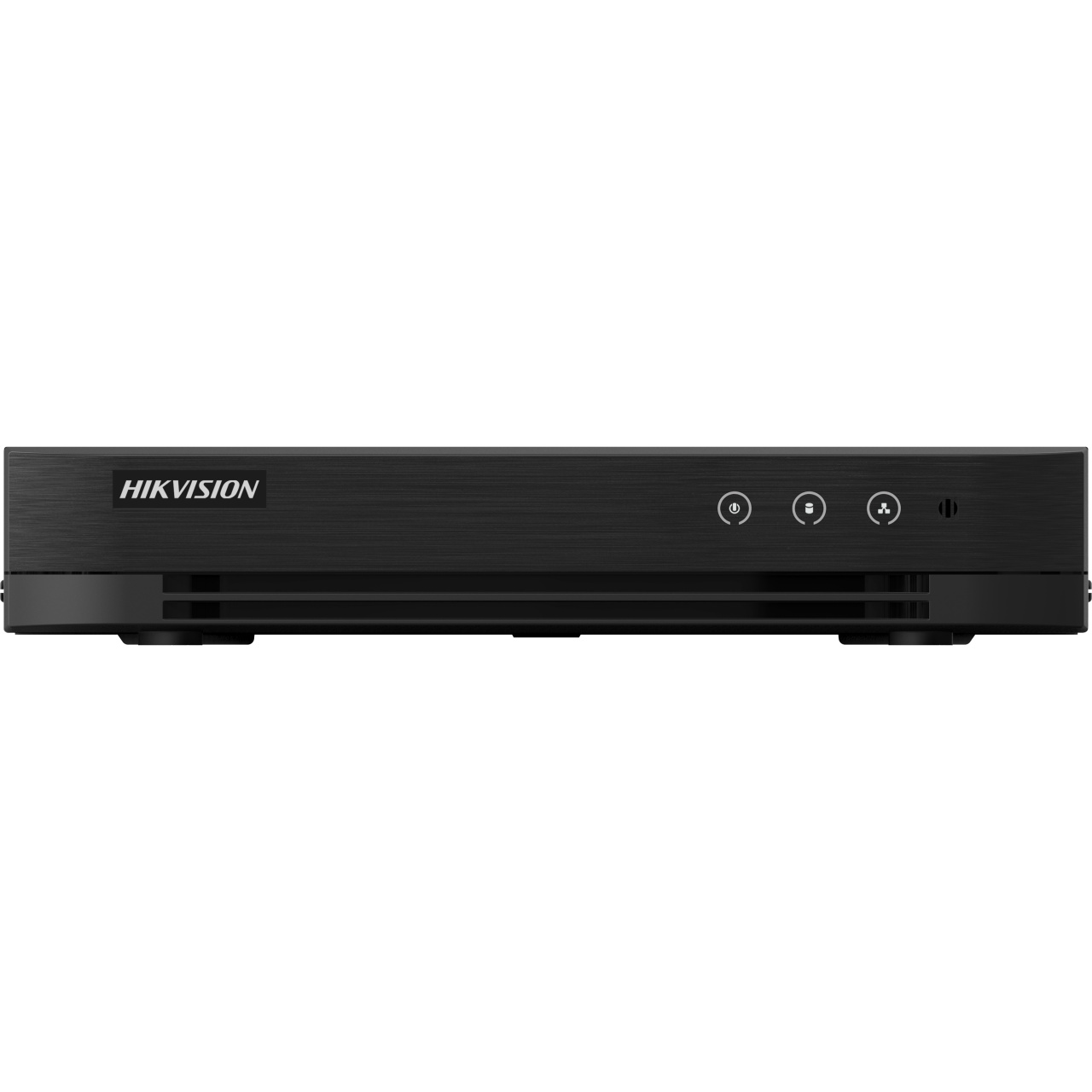

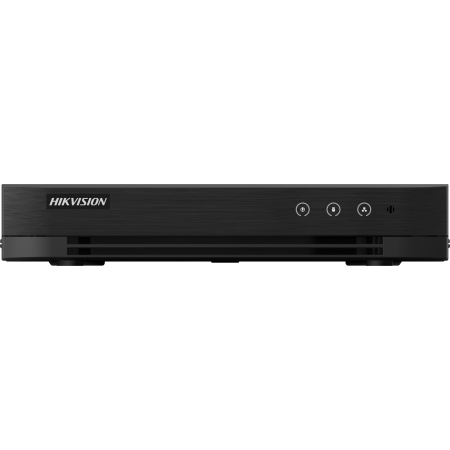

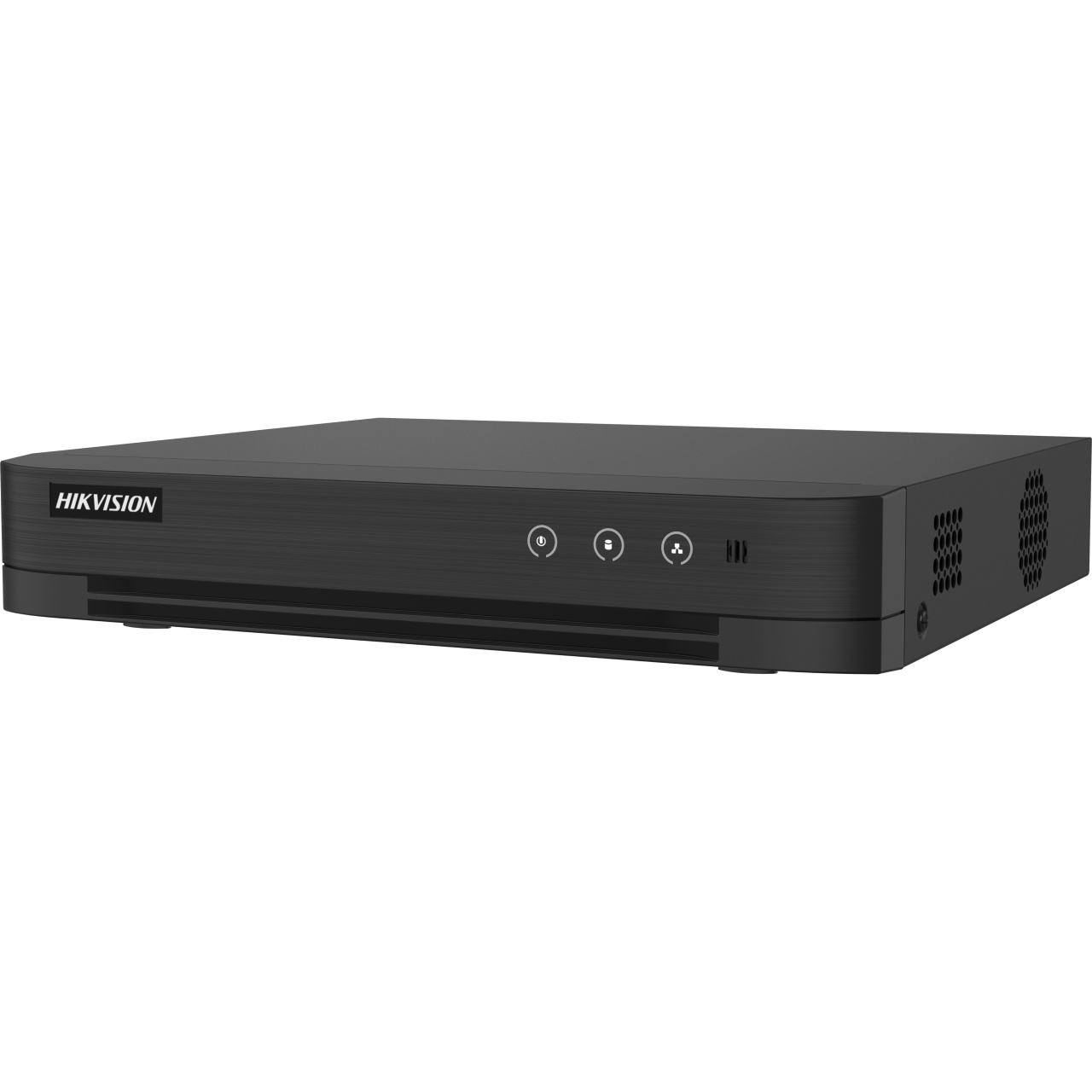

DVR HikVision iDS-7204HUHI-M1/T, 4 canale + 1 HDD, AcuSense perimeter protection deep learning, H.265 Pro+ compression, encoding 4K/8MP@8fps, 3K/5MP@12fps, 8‑ch IP inputs up to 8MP, 5‑in‑1 TVI/AHD/CVI/CVBS/IP
Descriere
H.265 Pro+
H.265+ imbunatateste dramatic eficienta codificarii: reducerea cerintelor privind latimea de banda cu pana la 75% fata de H.2645 si ocuparea a jumatate din spatiul de stocare pentru acelasi numar de inregistrari video. H.265+ reprezinta un pas important in compresia video si inseamna economii semnificative ale costurilor de stocare pentru utilizatori.
Functia AcuSense filtreaza si elimina alarmele false (pasari, frunze, ploaie, lumina) cu o acuratete de peste 90%.
Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde
Monitorizarea de la distanta
Ofera posibilitatea de a urmari locuita personala sau spatiul comercial de la distanta, prin intermediul unui smartphone, tableta sau laptop. Aceasta este o solutie optima, pentru a vedea transmisia sistemului video de supraveghere detinut intr-o anumita locatie cu ajutorul unei conexiuni la internet, 3G sau 4G.
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Motion Detection 2.0
- Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights.
Quick search by object or event type is supported.
- Facial Detection
- Facial Detection and CaptureFace picture detection, face picture search
- Video and Audio
- IP Video Input
2-ch (up to 6-ch)
Enhanced IP mode on:
4-ch (up to 8-ch), each up to 4 Mbps
Up to 8 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input
4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDTVI Input8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328x1504)@20 fps,2K(2304 x 1296)@20 fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
- AHD Input5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
- HDCVI Input8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@20/25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
- CVBS InputPAL/NTSC
- HDMI Output1-ch, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- Video Output ModeHDMI/VGA simultaneous output
- Audio Input
1-ch, RCA (2.0 Vp-p, 1 KΩ)
4-ch via coaxial cable
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Synchronous Playback4-ch
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution8 MP/5 MP/3K/4 MP/3 MP/2K/1080p/720p/WD1/4CIF/VGA/CIF
- Frame Rate
Main stream:
8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps/2K@20 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
*: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.
Sub-stream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- Video Bitrate32 Kbps to 10 Mbps
- Dual-streamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Network
- Total Bandwidth96 Mbps
- Remote Connection32
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
- Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
- Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
- Auxiliary Interface
- SATA1 SATA interface
- CapacityUp to 10 TB capacity for each disk
- Alarm In/OutN/A
- USB Interface2 × USB 2.0
- General
- Power Supply12 VDC, 1.5 A
- Consumption≤ 15 W (without HDD)
- Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)263 × 225 × 48 mm (10.3 × 8.8 × 1.9 inch)
- ≤ 1.16 kg (without HDD, 2.6 lb.)
