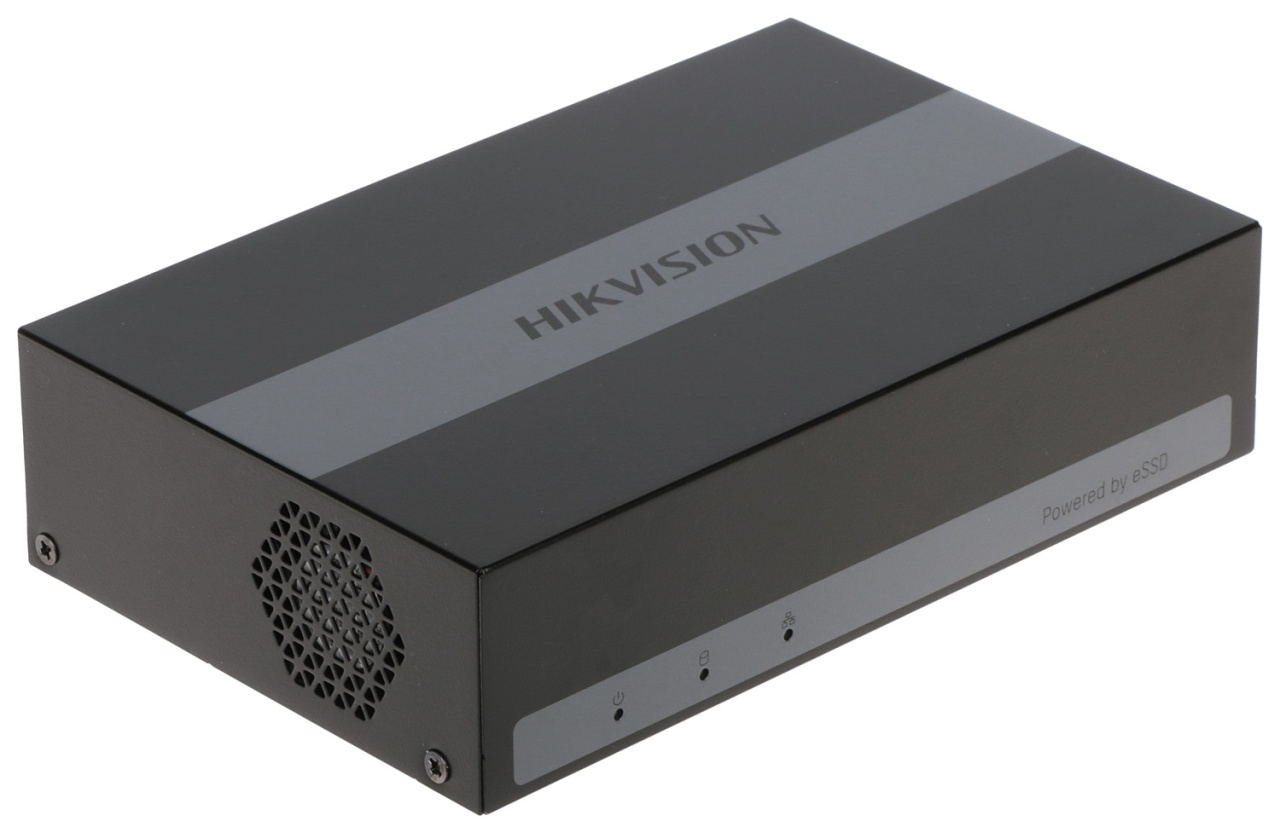

DVR Hikvision AcuSense 8-ch 1080p 1U H.265 iDS-E08HQHI-B

Descriere

• Motion Detection 2.0
• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

• Perimeter Protection
• Human/Vehicle AnalysisUp to 4-ch

• Video and Audio
• IP Video Input

  2-ch

  Up to 6 MP resolution

  Support H.265+/H.265 IP cameras

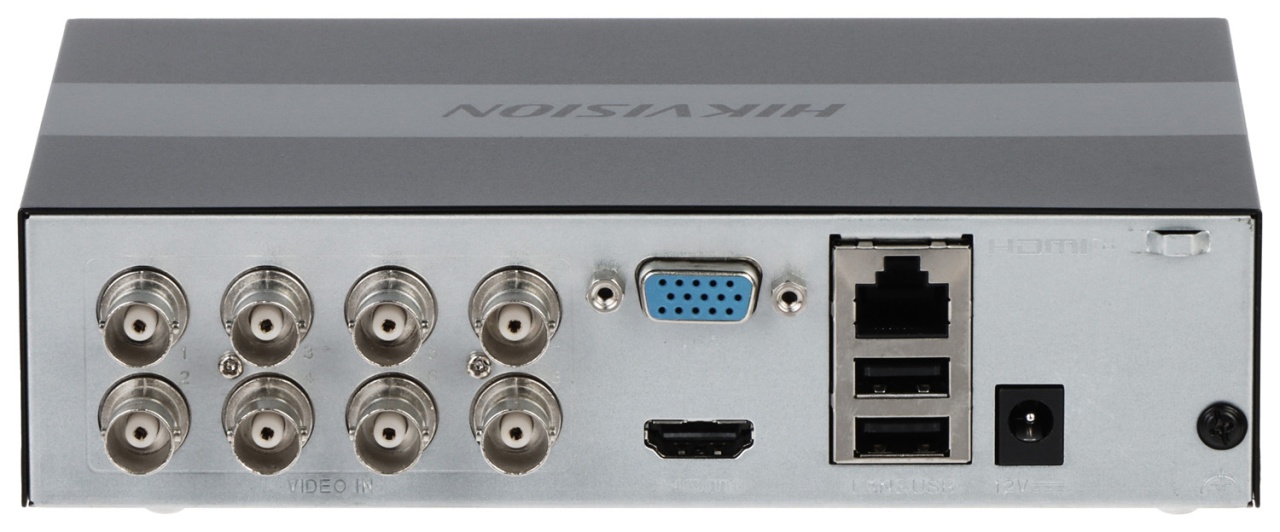

• Analog Video Input

  8-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDTVI Input3K@20 fps, 5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps, 720p50, 720p60
• AHD Input5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• HDCVI Input5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• CVBS InputSupport
• HDMI Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Input8-ch via coaxial cable
• Audio Output1-ch via HDMI
• Synchronous Playback4-ch

• Recording
• Video CompressionH.265 Pro/H.265
• Encoding Resolution

  When 1080p Lite mode is not enabled:

  5MPLite/3K/4MPLite/1080p/1080pLite/720p/WD1/4CIF;

  When 1080p Lite mode is enabled:

  5MP/3KLite/4MPLite/1080p Lite/720p/WD1/4CIF;

• Frame Rate

  Main stream:

  When 1080p lite mode not enabled:

  For 5MP stream access:

  3K/5MPLITE @12FPS；4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  For 1080p stream access:

  1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

  When 1080p Lite mode enabled:

  5MP/3K lite/ 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30fps (N)

• Video BitrateAccording to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
• Stream Type

  Video, Video & Audio

  Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.

• Audio CompressionG.711u
• Audio Bitrate64 Kbps

• Network
• Total Bandwidth

  96 Mbps

  Incoming bandwidth: 8 Mbps

• Remote Connection64
• Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
• Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface

• Auxiliary Interface
• Capacity

  Built-in 1024 GB eSSD (960 GB available)

  Note:

  The device can store about 2 weeks videos for 8-ch analog cameras (default parameters), this estimation is for reference only.

• Alarm In/OutOPTIONAL 4/1
• USB InterfaceRear panel: 2 × USB 2.0

• General
• Power Supply12 VDC, 1 A
• Consumption≤ 8.2 W (with eSSD)
• Working Temperature-10 °C to 45 °C (14 °F to 113 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)170 × 113 × 46 mm(6.7 × 4.4 × 1.8 inch)
• Weight≤ 0.5 kg (with eSSD, 1.1 lb.)
