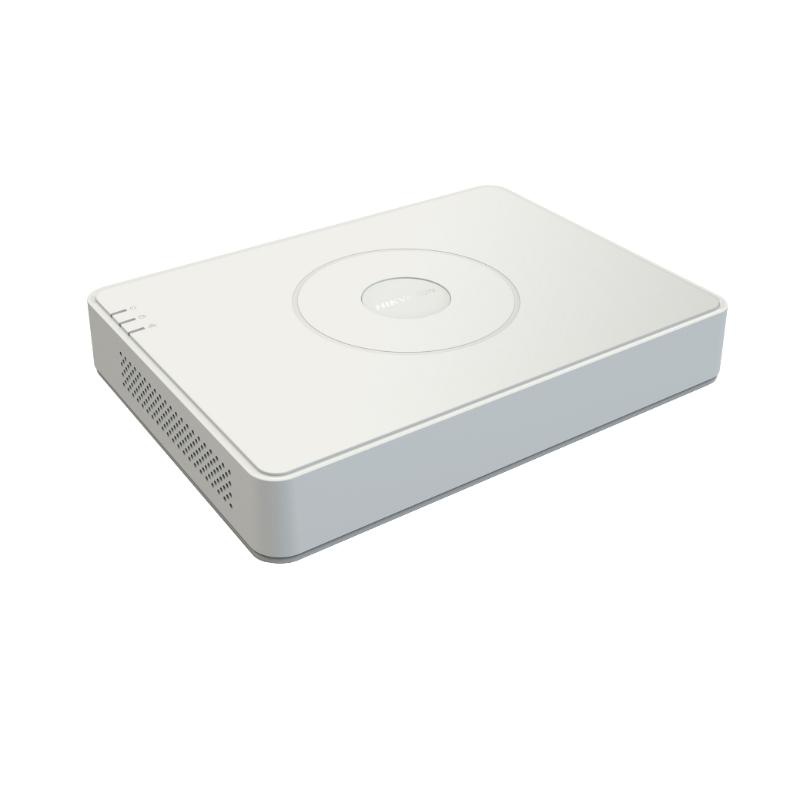

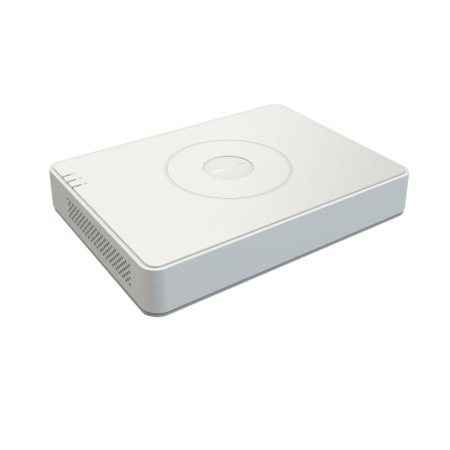

DVR Hikvision AcuSense 16 canale 3K/5MP Lite iDS-7116HQHI-M1/S(E), compresie H.265 Pro+, Motion Detection 2.0, protectie perimetru, suport 24 canale IP 6MP, Audio via Coaxial, 1 slot HDD, format Mini 1U
Descriere
Turbo HD – HD-TVI
Bucura-te de imagini la o rezolutie superioara prin Turbo HD, care are la baza tehnologia HDTVI (High Definition Transport Video Interface), dezvoltata in special pentru imbunatatirea sistemelor analogice standard, deja existente, la un cost cat mai redus.
H.265 Pro+
H.265+ imbunatateste dramatic eficienta codificarii: reducerea cerintelor privind latimea de banda cu pana la 75% fata de H.2645 si ocuparea a jumatate din spatiul de stocare pentru acelasi numar de inregistrari video. H.265+ reprezinta un pas important in compresia video si inseamna economii semnificative ale costurilor de stocare pentru utilizatori.
Functia AcuSense filtreaza si elimina alarmele false (pasari, frunze, ploaie, lumina) cu o acuratete de peste 90%.
Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde
Monitorizarea de la distanta
Ofera posibilitatea de a urmari locuita personala sau spatiul comercial de la distanta, prin intermediul unui smartphone, tableta sau laptop. Aceasta este o solutie optima, pentru a vedea transmisia sistemului video de supraveghere detinut intr-o anumita locatie cu ajutorul unei conexiuni la internet, 3G sau 4G.
Cum functioneaza DDNS?
Daca doriti sa accesati o camera CCTV sau un server de gazduire dar adresele IP atribuite lor nu sunt statice, atunci serviciul DDNS este solutia.
Majoritatea providerilor de internet nu oferta IP static, dar pentru accesarea echipamentelor de monitorizare video fara a inlocui de fiecare data adresa IP se va configura serviciul DDNS. Similar cu un server DNS, acesta creaza o baza de date care contine relatiile dintre domenii si adresele numerice, actualizarea facandu-se la intervale de timp prestabilite sau automat la schimbarea adresei IP. Datorita acestei facilitati, DVR-ul/NVR-ul sau camerele tale vor fi disponibile la domeniu cunoscut, indiferent de IP-ul acestuia.
Wide temperature
Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -10°C si +55°C si cu umiditate de pana la 90%.
- Motion Detection 2.0
- Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported
- Perimeter Protection
- Line Crossing Detection/Intrusion Detection4-ch
- Facial Detection
- Facial Detection and CaptureFace picture detection, face picture search
- Video and Audio
- IP Video Input
2-ch (up to 18-ch)
Enhanced IP mode on:
8-ch (up to 24-ch), each up to 4 Mbps
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input
16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- Incoming Bandwidth96 Mbps
- HDTVI Input3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
- AHD Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- HDCVI Input5MP(2880 × 1620)@25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- CVBS InputPAL/NTSC
- HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- Audio Input
1-ch, RCA (2.0 Vp-p, 1 KΩ)
16-ch via coaxial cable
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Synchronous playback16-ch
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution
When 1080p Lite mode is not enabled:
3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
- Frame Rate
Main stream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps
For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps
For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
- Video Bitrate32 Kbps to 6 Mbps
- Dual-streamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Network
- Remote Connection128
- Total Bandwidth128 Mbps
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Network Interface
1, RJ45 10M/100M/1000M
self-adaptive Ethernet interface
- Auxiliary Interface
- SATA1 SATA interface
- CapacityUp to 10 TB capacity for each disk
- USB InterfaceReal panel: 2 × USB 2.0
- Alarm In/OutN/A
- General
- Power Supply12 VDC, 2A
- Consumption≤ 24W
- Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)285 × 210 × 48 mm (11.2 × 8.3 × 1.9 inch)
- Weight≤ 1 kg (2.2 lb)
