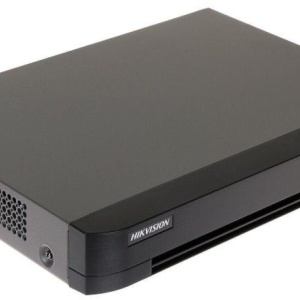

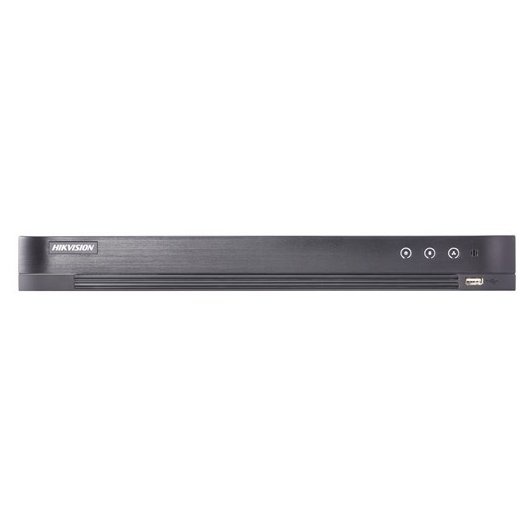

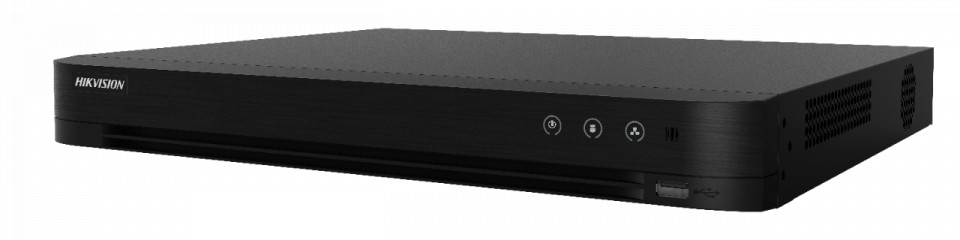

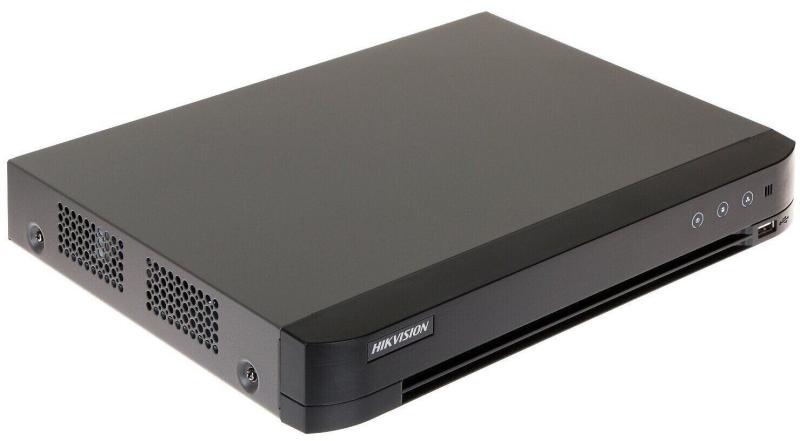

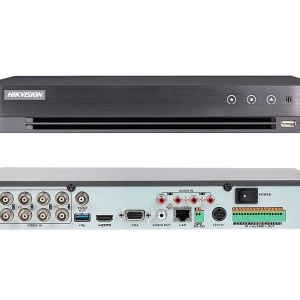

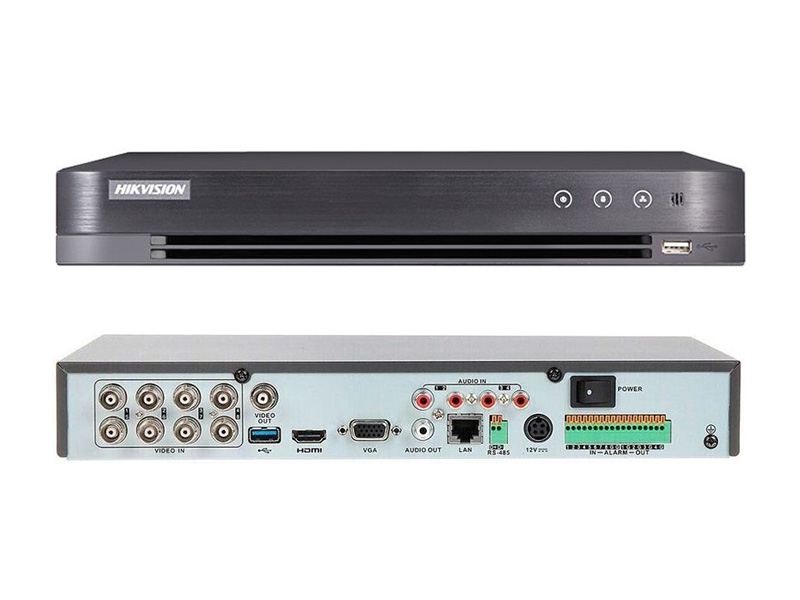

DVR Hikvision 8 canale Turbo HD 5.0 8MP iDS-7208HUHI-M2/S(C)
Descriere
H.265 Pro+
H.265+ imbunatateste dramatic eficienta codificarii: reducerea cerintelor privind latimea de banda cu pana la 75% fata de H.2645 si ocuparea a jumatate din spatiul de stocare pentru acelasi numar de inregistrari video. H.265+ reprezinta un pas important in compresia video si inseamna economii semnificative ale costurilor de stocare pentru utilizatori.
Functia AcuSense filtreaza si elimina alarmele false (pasari, frunze, ploaie, lumina) cu o acuratete de peste 90%.
Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde
Monitorizarea de la distanta
Ofera posibilitatea de a urmari locuita personala sau spatiul comercial de la distanta, prin intermediul unui smartphone, tableta sau laptop. Aceasta este o solutie optima, pentru a vedea transmisia sistemului video de supraveghere detinut intr-o anumita locatie cu ajutorul unei conexiuni la internet, 3G sau 4G.
- Recording
- Encoding Resolution
Main stream:
8 MP@8 fps/5 MP@12 fps/4 MP@15 f ps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
*: 8 MP@8 fps is only available for channel 1.
Sub-stream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- Video Bit Rate32 Kbps to 10 Mbps
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Dual StreamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bit Rate64 Kbps
- Video And Audio
- Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Synchronous Playback8-ch
- IP Video Input8-ch (up to 16-ch);Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
- HDTVI Input
8 MP, 5 MP, 4 MP, 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
- HDCVI Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
- CVBS InputPAL/NTSC
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Analog Video Input8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- AHD Input5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
- CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
- HDMI/VGA Output
HDMI:
1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz,
1920 × 1080/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz,
1024 × 768/60Hz
VGA:
1-ch, 1920 × 1080/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz,
1024 × 768/60Hz
HDMI/VGA simultaneous output
- Network
- Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Remote Connections64
- Network Interface
1,RJ45 10M/100M/1000M self-adaptive
Ethernet interface
- Auxiliary Interface
- CapacityUp to 10 TB capacity for each disk
- Serial InterfaceRS-485 (half-duplex)
- USB Interface
1 × USB 2.0；
1 × USB 3.0
- Alarm In/OutN/A
- SATA2 SATA interface
- General
- Consumption(Without HDD)≤ 15 W
- Working Humidity10% to 90%
- Power Supply12 VDC
- Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
- Dimensions(W × D × H)380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
- Weights (Without HDD)≤ 2 kg (4.4 lb)
