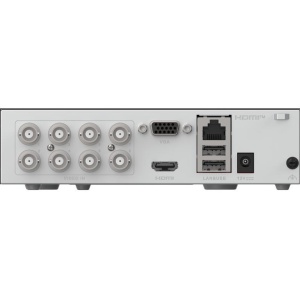

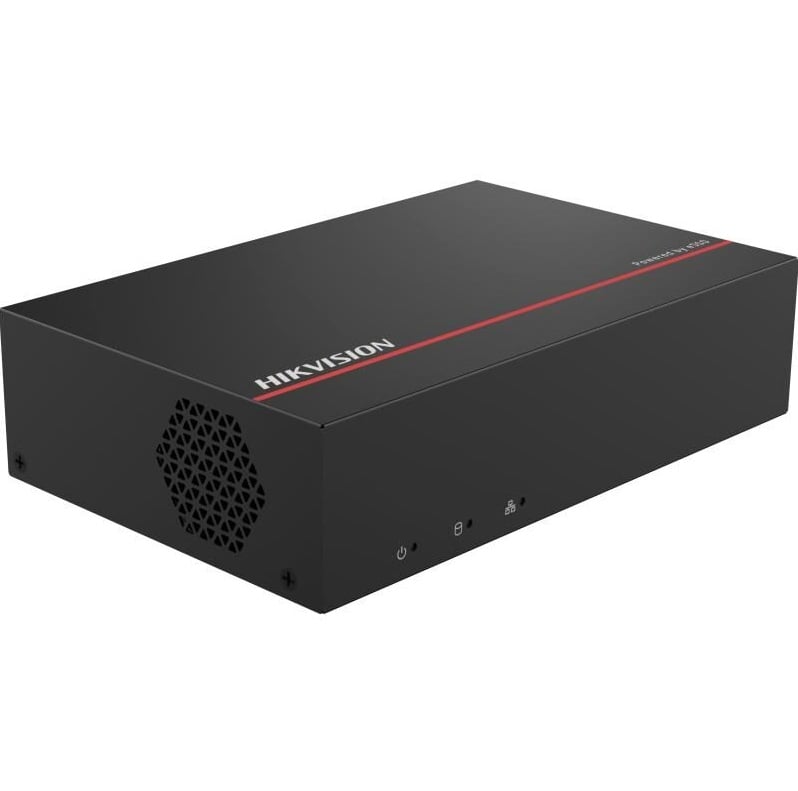

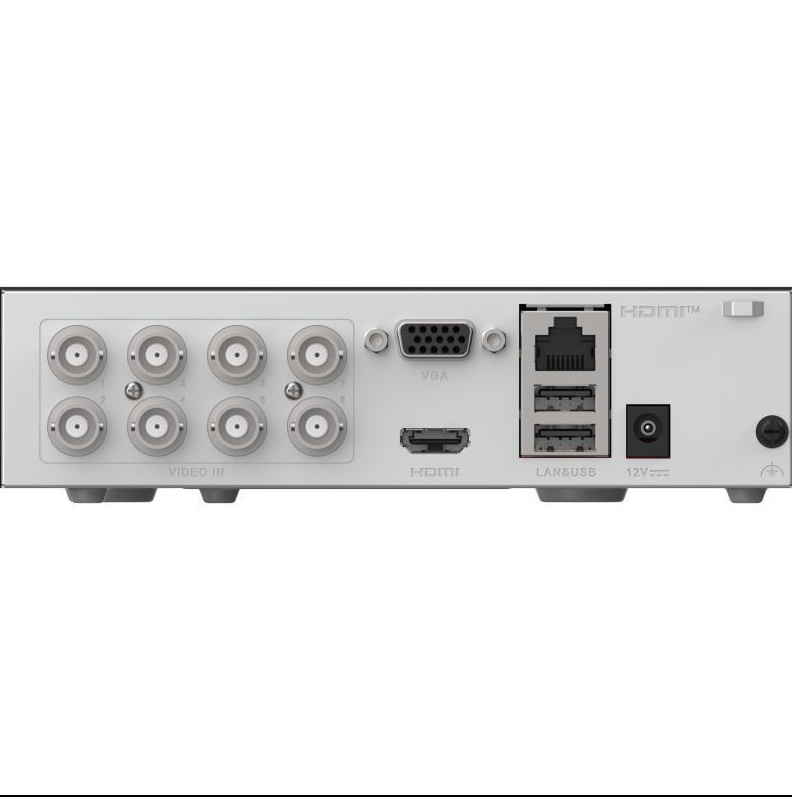

DVR Hikvision 8 canale AcuSense 2MP iDS-E08HQHI-XB

Descriere

H.265 Pro+

H.265+ imbunatateste dramatic eficienta codificarii: reducerea cerintelor privind latimea de banda cu pana la 75% fata de H.2645 si ocuparea a jumatate din spatiul de stocare pentru acelasi numar de inregistrari video. H.265+ reprezinta un pas important in compresia video si inseamna economii semnificative ale costurilor de stocare pentru utilizatori.

Functia  AcuSense filtreaza si elimina alarmele false (pasari, frunze, ploaie, lumina) cu o acuratete de peste 90%.

Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde

Monitorizarea de la distanta

Ofera posibilitatea de a urmari locuita personala sau spatiul comercial de la distanta, prin intermediul unui smartphone, tableta sau laptop.   Aceasta este o solutie optima, pentru a vedea transmisia sistemului video de supraveghere detinut intr-o anumita locatie cu ajutorul unei conexiuni la internet, 3G sau 4G.

• • • Motion Detection 2.0
    • Human/Vehicle Analysis

      Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

      Quick search by object or event type is supported;

    • Perimeter Protection
    • Human/Vehicle AnalysisUp to 4-ch
    • Video and Audio
    • IP Video Input

      2-ch

      Up to 6 MP resolution

      Support H.265+/H.265 IP cameras

    • Analog Video Input

      8-ch

      BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

    • HDTVI Input3K@20 fps, 5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps, 720p50, 720p60
    • AHD Input5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
    • HDCVI Input5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
    • CVBS InputSupport
    • HDMI Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
    • VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
    • Video Output ModeHDMI/VGA simultaneous output
    • Audio Input8-ch via coaxial cable
    • Audio Output1-ch via HDMI
    • Synchronous Playback4-ch
    • Recording
    • Video CompressionH.265 Pro/H.265
    • Encoding Resolution

      When 1080p Lite mode is not enabled:

      5MPLite/3KLite/4MPLite/1080p/720p/WD1/4CIF;

      When 1080p Lite mode is enabled:

      5MPLite/3KLite/4MPLite/1080p Lite/720p/WD1/4CIF;

    • Frame Rate

      Main stream:

      When 1080p lite mode not enabled:

      For 3K stream access:

      3K LITE @12FPS；4 MP lite@15 fps; 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

      For 5MP stream access:

      5MP LITE @12FPS；4 MP lite@15 fps; 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

      For 1080p stream access:

      1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

      For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

      When 1080p Lite mode enabled:

      5MP/3K lite/ 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30fps (N)

    • Video BitrateAccording to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
    • Stream Type

      Video, Video & Audio

      Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.

    • Audio CompressionG.711u
    • Audio Bitrate64 Kbps
    • Network
    • Total Bandwidth

      96 Mbps

      Incoming bandwidth: 8 Mbps

    • Remote Connection64
    • Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
    • Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
    • Auxiliary Interface
    • Capacity

      Built-in 1024 GB eSSD (960 GB available)

      Note:

      M-SATA interface, capable of plugging and upgrading capacity.

      The device can store about 2 weeks videos for 8-ch analog cameras (default parameters), this estimation is for reference only.

    • Alarm In/OutOPTIONAL 4/1
    • USB InterfaceRear panel: 2 × USB 2.0
    • General
    • Power Supply12 VDC, 1 A
    • Consumption≤ 8.2 W (with eSSD)
    • Working Temperature-10 °C to 45 °C (14 °F to 113 °F)
    • Working Humidity10% to 90%
    • Dimension (W × D × H)170 × 113 × 46 mm(6.7 × 4.4 × 1.8 inch)
    • Weight≤ 0.6 kg (with eSSD, 1.1 lb.)
