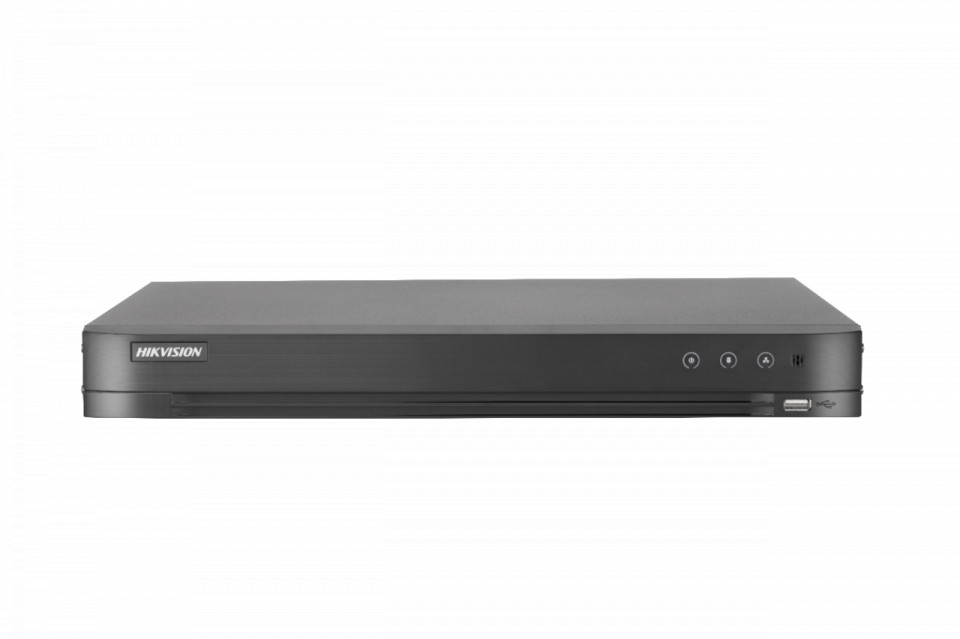

DVR Hikvision 24-ch 1080p Lite 1U H.265 DS-7224HGHI-K2
Descriere
Full HD
Nu lasa nici un detaliu sa treaca neobservat. Cu tehnologia HD poti surprinde imagini de o calitate mai buna, cu pana la 5 ori mai detaliate decat standardul SD. Deasemeni, suprafata care va fi acoperita va fi mult mai mare.
HDMI ofera o calitate sporita a imaginii
HDMI – Hight Definition Multimedia Interface ofera posibilitatea conectarii unui ecran/televizor HD pentru redarea imaginilor la o claritate sporita. Prin intermediul unei conexiuni HDMI, semnalul video este transmis in format digital pentru o imagine cat mai clara.
Turbo HD – HD-TVI
Bucura-te de imagini la o rezolutie superioara prin Turbo HD, care are la baza tehnologia HDTVI (High Definition Transport Video Interface), dezvoltata in special pentru imbunatatirea sistemelor analogice standard, deja existente, la un cost cat mai redus.
H.264+
H.265+ imbunatateste dramatic eficienta codificarii: reducerea cerintelor privind latimea de banda cu pana la 75% fata de H.2645 si ocuparea a jumatate din spatiul de stocare pentru acelasi numar de inregistrari video. H.265+ reprezinta un pas important in compresia video si inseamna economii semnificative ale costurilor de stocare pentru utilizatori.
Monitorizarea de la distanta
Ofera posibilitatea de a urmari locuita personala sau spatiul comercial de la distanta, prin intermediul unui smartphone, tableta sau laptop. Aceasta este o solutie optima, pentru a vedea transmisia sistemului video de supraveghere detinut intr-o anumita locatie cu ajutorul unei conexiuni la internet, 3G sau 4G.
Multi Chanel Synchronous Playback
Redarea sincrona va permite sa vizualizati imagini video la un anumit moment in timp, de la mai multe camere, simultan. Spre exemplu, daca doriti sa vizualizati toate imaginile video captate de mai multe camera la ora 10:00 puteti folosi redarea sincrona in loc sa examinati fiecare filmare video in parte.
Wide temperature
Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -10°C si +55°C si cu umiditate de pana la 90%.
- Recording
- Encoding Resolution
Main stream: For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) For standard definition stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream: For 1080p and 720p stream access: CIF/QVGA@15fps For standard definition stream access: CIF/QVGA@25fps (P)/30fps (N)
- Video Bit Rate32 Kbps to 4 Mbps
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Dual StreamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bit Rate64 Kbps
- Video And Audio
- Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Synchronous Playback16-ch
- IP Video Input2-ch (up to 18-ch);Up to 5 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
- HDTVI Input1080p25, 1080p30, 720p25, 720p30
- HDCVI Input1080p25, 1080p30, 720p25, 720p30
- CVBS InputPAL/NTSC
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Analog Video Input24-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- AHD Input1080p25, 1080p30, 720p25, 720p30
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω)
- HDMI/VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz;HDMI/VGA simultaneous output
- Network
- Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Remote Connections128
- Network Interface1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
- Auxiliary Interface
- CapacityUp to 10 TB capacity for each disk
- Serial InterfaceN/A
- USB Interface
1 × USB 2.0；
1 × USB 3.0
- Alarm In/OutN/A
- SATA2 SATA interface
- General
- Consumption(Without HDD)≤ 10 W
- Working Humidity10% to 90%
- Power Supply12 VDC
- Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
- Dimensions(W × D × H)380 × 320 × 48 mm (10.2 × 8.7 × 1.8 inch)
- Weights (Without HDD)≤ 2.2 kg (4.9 lb)
