DVR Hikvision 16 canale Turbo HD 5.0 DS-7316HUHI-K4
Descriere
H.265 Pro+
H.265+ imbunatateste dramatic eficienta codificarii: reducerea cerintelor privind latimea de banda cu pana la 75% fata de H.2645 si ocuparea a jumatate din spatiul de stocare pentru acelasi numar de inregistrari video. H.265+ reprezinta un pas important in compresia video si inseamna economii semnificative ale costurilor de stocare pentru utilizatori.
Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde
Monitorizarea de la distanta
Ofera posibilitatea de a urmari locuita personala sau spatiul comercial de la distanta, prin intermediul unui smartphone, tableta sau laptop. Aceasta este o solutie optima, pentru a vedea transmisia sistemului video de supraveghere detinut intr-o anumita locatie cu ajutorul unei conexiuni la internet, 3G sau 4G.
Gigabit Ethernet, o tehnologie de transmisie de date bazata pe formatul cadrului Ethernet si protocolul utilizat in retelele locale (LAN), ofera o rata de transfer de 1 miliard de biti pe secunda (un gigabit). Gigabit Ethernet este definit ca standardul IEEE 802.3 si este in prezent folosit in ulte retele de intreprinderi. Reteaua Gigabit Ethernet este realizata in principal pe fibra optica (cu distante foarte scurte pe suport de cupru). Intr-o retea Gigabit se pot alimenta si retelele Ethernet LAN deja existente de 10 sau 100 Mbps.

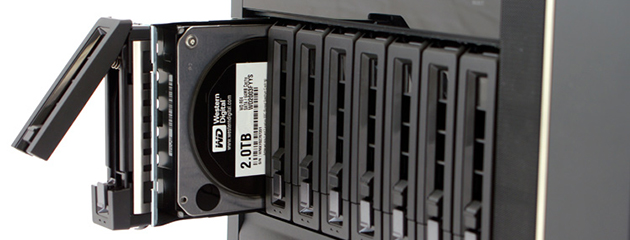

HOT SWAP
Inlocueste Hard Disk-urile cu probleme fara a opri sistemul.

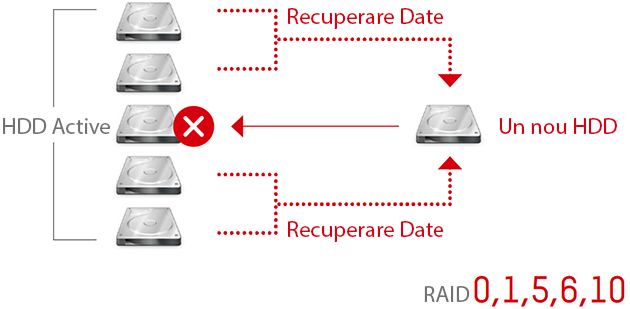

RAID (Redundant Array of Inexpensive Disks), este o tehnologie de utilizare a mai multor hard disk-uri intr-o singura entitate pentru a imbunatati performanta sau securitatea datelor. Exista mai multe tipuri de RAID, fiecare cu avantaje si dezavantaje. Tipurile de RAID pe care dorim sa le implementam tine de ceea ce ne dorim mai mult: fie un nivel mai ridicat de performanta, fie o siguranta sporita a datelor.
| Video/Audio Input | ||
|---|---|---|
| Audio Input: | 4-ch | |
| Video Compression: | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| Analog and HD-TVI video input: | 16-ch,BNC interface (1.0Vp-p, 75 Ω)connection | |
| Supported camera types: | Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 Support AHD input: 5MP,4MP,1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz Support CVI input: 4 MP, 720p25, 720p30, 1080p25, 1080p30 support CVBS input |
|
| Audio Compression: | G.711u | |
| Audio Input Interface: | 4-ch, RCA (2.0 Vp-p, 1 KΩ) | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) | |
| Video/Audio Output | ||
|---|---|---|
| HDMI2 Output: | 1-ch,4K(3840 × 2160)/30Hz,2K(2560 × 1440)/60Hz,1920×1080/60Hz,1280 × 1024/60Hz,1280 × 720/60Hz, 1024 × 768/60Hz | |
| HDMI/VGA Output: | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz | |
| Recording resolution: | 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF | |
| Frame Rate: | Main stream: 8 MP@8fps; 5 MP@12fps; 4 MP@ 15fps; 3 MP@18fps; 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N) |
|
| Video Bit Rate: | 32 Kbps-10 Mbps | |
| Stream Type: | Video/Video&Audio | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (independent) | |
| Audio Output: | 2-ch, RCA (Linear, 1 kΩ) | |
| Dual Stream: | Support | |
| Playback Resolution: | 8MP/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF | |
| Synchronous Playback: | 16-ch | |
| Network management | ||
|---|---|---|
| Remote connections: | 128 | |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF,SNMP | |
| Hard Disk Driver | ||
|---|---|---|
| Interface Type: | 4 SATA Interfaces | |
| Capacity: | Up to 10 TB capacity for each disk | |
| External Interface | ||
|---|---|---|
| Network Interface: | 2; 10M / 100M / 1000M self-adaptive Ethernet interfaces | |
| USB Interface: | 2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel | |
| Serial Interface: | 1 RS-232 serial interface 1 RS-485 serial interface, full-duplex,1 RS-485 keyboard interface |
|
| Alarm Input: | 16-ch | |
| Alarm Output: | 4-ch | |
| General | ||
|---|---|---|
| Power Supply: | 100 to 240 VAC | |
| Consumption: | ≤ 65W(without hard disks) | |
| Working Temperature: | -10 oC to +55 oC (+14 oF to +131 oF) | |
| Working Humidity: | 10% to 90% | |
| Dimensions: | 445 × 390 × 70 mm (17.5 × 15.4 × 2.8 inch) | |
| Weight: | ≤ 5 kg (11.0 lb) | |
