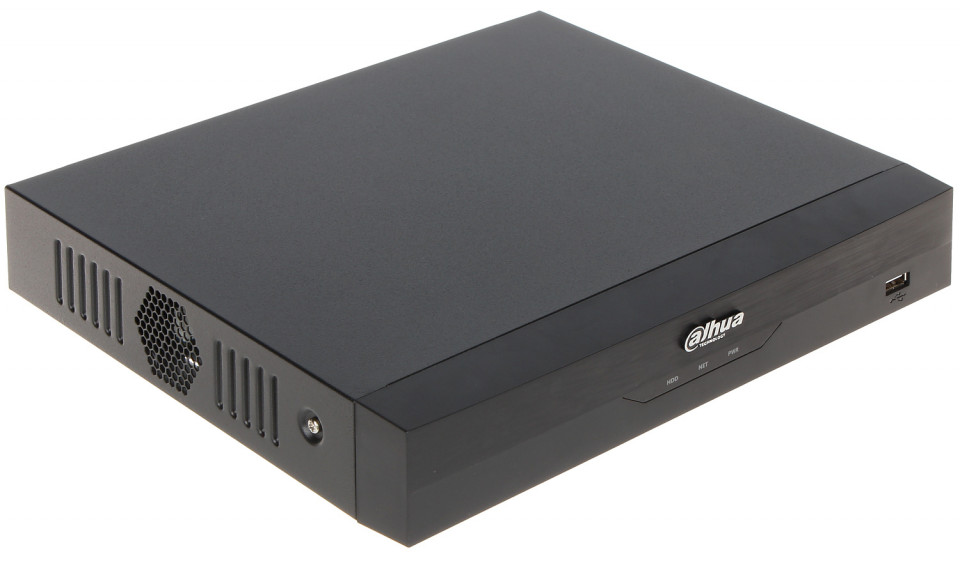

DVR Dahua Pentabrid 4 canale WizSense DHI-XVR5104HS-4KL-I2

Descriere

HDMI ofera o calitate sporita a imaginii

HDMI – Hight Definition Multimedia Interface ofera posibilitatea conectarii unui ecran/televizor HD pentru redarea imaginilor la o claritate sporita. Prin intermediul unei conexiuni HDMI, semnalul video este transmis in format digital pentru o imagine cat mai clara.

H.265+

H.265+ imbunatateste dramatic eficienta codificarii: reducerea cerintelor privind latimea de banda cu pana la 75% fata de H.2645 si ocuparea a jumatate din spatiul de stocare pentru acelasi numar de inregistrari video. H.265+ reprezinta un pas important in compresia video si inseamna economii semnificative ale costurilor de stocare pentru utilizatori.

On Screen Display – OSD

Reprezinta o modalitate avansata de reglaj, a proprietatilor unei camera de supraveghere video CCTV. Aceasta permite utilizatorului/instalatorului sa ajusteze functiile camerei, direct de pe ecranul monitorului / televizorului. Setarea ajuta la adaptarea semnalului generat, in functie de locatia unde echipamentul este instalat.

Multi Chanel Synchronous Playback

Redarea sincrona va permite sa vizualizati imagini video la un anumit moment in timp, de la mai multe camere, simultan. Spre exemplu, daca doriti sa vizualizati toate imaginile video captate de mai multe camera la ora 10:00 puteti folosi redarea sincrona in loc sa examinati fiecare filmare video in parte.

Wide temperature

Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -10 ºC - +55 ºC si cu umiditate de pana la 85%.

Standard:	AHD, HD-CVI, HD-TVI, CVBS, TCP/IP

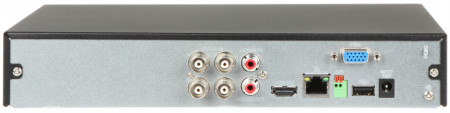

Video inputs:	4 pcs BNC
Video outputs:	1 pcs HDMI 4K 1 pcs VGA
Audio inputs:	1 pcs - CINCH 4  - Audio support via coaxial cable, HD-CVI only
Audio outputs:	1 pcs CINCH
Image compression method:	AI Coding / H.265+ / H.265 / H.264+ / H.264
Image records resolutions:	AHD / HD-CVI / HD-TVI : 8 Mpx - 3840 x 2160  , 4K-N - 1920 x 2160  , 6 Mpx - 2880 x 1920  - HD-CVI only , 5 Mpx - 2592 x 1944  , 4 Mpx - 2560 x 1440  , 4M-N - 1280 x 1440  , 3 Mpx - 2048 x 1536  - AHD / HD-TVI only , 1080p - 1920 x 1080  , 720p - 1280 x 720  CVBS : 960H - 960 x 576  IP : max. 8 Mpx - 3840 x 2160
Recording speed adjustment:	8 Mpx IP @ 1 ... 25 fps 8 Mpx @ 1 ... 7 fps 4K-N @ 1 ... 15 fps 6 Mpx @ 1 ... 10 fps 5 Mpx @ 1 ... 12 fps 4 Mpx @ 1 ... 15 fps 4M-N @ 1 ... 25 fps 3 Mpx @ 1 ... 15 fps 1080p @ 1 ... 25 fps 720p @ 1 ... 25 fps 960H @ 1 ... 25 fps for each channel
Operation modes:	4 x  AHD / HD-CVI / HD-TVI / CVBS / IP + 4 x IP
Recording modes:	Manual, Motion Detection, Schedule
Supported hard drives:	1  x 10 TB SATA
External storage devices backup:	Save single frames and whole records from DVR drive to the USB drive
Searching and playback the records:	Records searching: by time + timeline with record type. Playback: forward, fast, slow, step Advanced searching (to the one second accuracy) Intelligent face search AI - simultaneous search in the archive of face recordings based on max 8 photos taking into account the similarity threshold (for each photo separately)
Network functions:	Network Client Software and IE browser: live view, playback and backup of the records, partial configuration of the recorder parameters
Mobile phones support:	Port no.: 37777 or access by a cloud (P2P) Android: Free application gDMSS Plus iOS (iPhone): Free application iDMSS Plus See how to configure the P2P function in Dahua recorders and how to enable the mobile application
Alarm inputs / outputs:
PTZ control:	IP Speed Dome Cameras Control compatible with coax PTZ HD-CVI RS-485 - PELCO-D/P
Motion Detection:	Split the screen into zones : 22 x 18 motion zones
Main features:	Cooperation with Dahua devices working in the concept of the Internet of Things (IoT), POS - support the machines installed in the points of sales and displaying the date from them as overlaid text on selected channel window, Coax Audio/Alarm support, Intelligent Image Analysis : crossing the line (tripwire), crossing the line (tripwire), abandoned/missing object, classification of people and vehicles advanced face and vehicle recognition and search functions Support for up to 10 face databases, including 20 000 face images Detection of faces not included in the device database Searching for faces in recordings based on max 8 selected photos with the ability to independently set the similarity threshold for each photo
USB:	2 pcs USB 2.0
Mouse support:
IR remote controller in the set:
Power supply:	12 V DC / 2 A (power adapter included)
Color:	Black
Weight:	0.87 kg
Dimensions:	260  x 236  x 48 mm
Supported languages:	Polish, English, Czech, Danish, Finnish, French, Greek, Spanish, Dutch, German, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Hungarian, Italian
