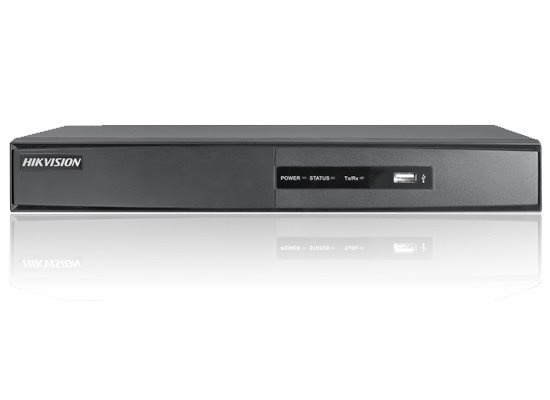

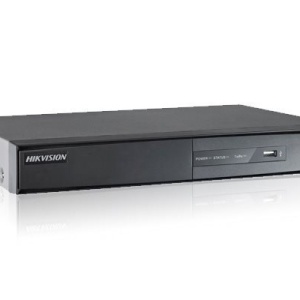

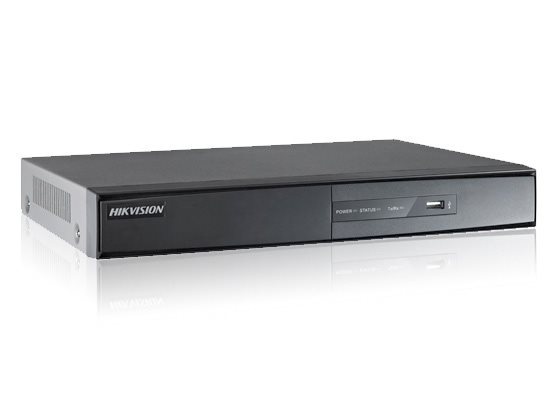

DVR 8 canale analogice, HIKVISION DS-7208HVI-SV-A

Descriere

Video/Audio Input
Audio Input:1-ch
Video Compression:H.264
PAL/NTSC Adaptive:Support
Video Input:16-ch
Video Input Interface:BNC (1.0 Vp-p, 75Ω)
Audio Compression:G.711u
Audio Input Interface:RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio:1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)

Video/Audio Output
VGA Output:1-ch, resolution:
1920×1080P/60Hz,1280×1024/60Hz,1280×720/60Hz, 1024×768/60Hz
CVBS Output:1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI Output:1-ch, resolution:
1920 × 1080P / 60 Hz ,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution:WD1/ 4CIF / 2CIF / CIF / QCIF
Frame Rate:WD1 @ 8 fps; or 4CIF/2CIF @ 10 fps; or CIF/QCIF @ 25 fps (P) / 30 fps (N)
Video Bit Rate:32 Kbps ~ 3072 Kbps, or user defined (Max. 3072 Kbps)
Stream Type:Video/Video&Audio
Audio Output:1-ch RCA(Linear, 1kΩ)
Audio Bit Rate:64kbps
Dual Stream:Support
Playback Resolution:WD1/ 4CIF / 2CIF / CIF / QCIF
Synchronous Playback:16-ch

Hard Disk Driver
Interface Type:1 SATA Interface
Capacity:Up to 4TB capacity for each disk

External Interface
Network Interface:1 RJ45 10M/100M adaptive Ethernet Interface
USB Interface:2 USB 2.0 Interfaces
Serial Interface:1 RJ45 RS-485 half-duplex interface

General
Power Supply:12 VDC
Consumption:≤ 15 W
Working Temperature:-10 oC ~+55 oC
Working Humidity:10% ~ 90%
Chassis:Standalone 1U chassis
Dimensions:315 × 230 × 45 mm (W × D × H)
Weight:≤ 2 kg (without hard disk or DVD-R/W)
