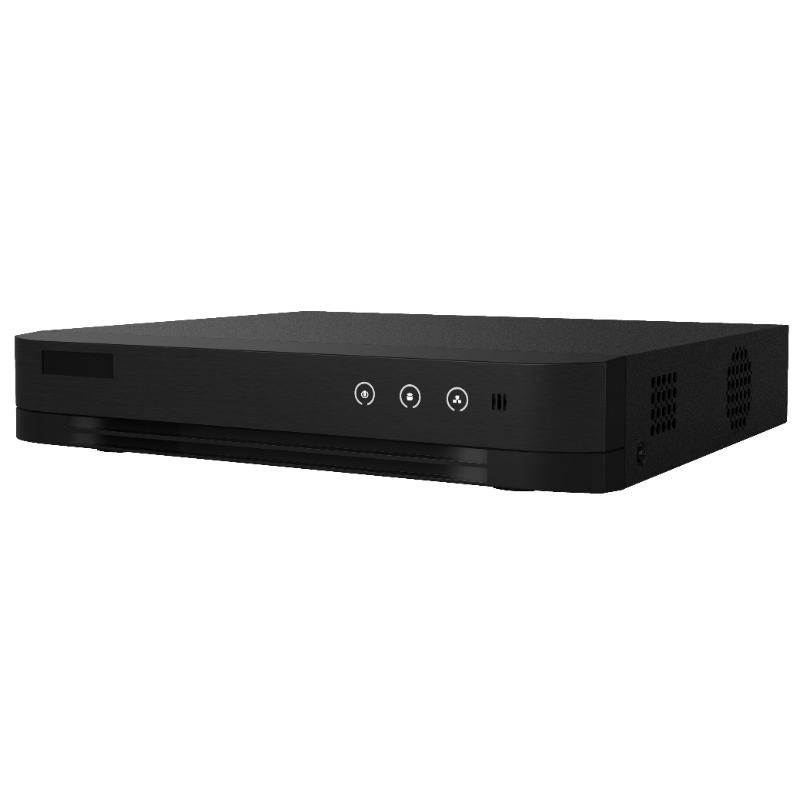

DVR 16 canale, Hikvision AcuSense IDS-7216HUHI-M2/X
Descriere
Turbo HD – HD-TVI
Bucura-te de imagini la o rezolutie superioara prin Turbo HD, care are la baza tehnologia HDTVI (High Definition Transport Video Interface), dezvoltata in special pentru imbunatatirea sistemelor analogice standard, deja existente, la un cost cat mai redus.
H.265 Pro+
H.265+ imbunatateste dramatic eficienta codificarii: reducerea cerintelor privind latimea de banda cu pana la 75% fata de H.2645 si ocuparea a jumatate din spatiul de stocare pentru acelasi numar de inregistrari video. H.265+ reprezinta un pas important in compresia video si inseamna economii semnificative ale costurilor de stocare pentru utilizatori.
Functia AcuSense filtreaza si elimina alarmele false (pasari, frunze, ploaie, lumina) cu o acuratete de peste 90%.
Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde
Monitorizarea de la distanta
Ofera posibilitatea de a urmari locuita personala sau spatiul comercial de la distanta, prin intermediul unui smartphone, tableta sau laptop. Aceasta este o solutie optima, pentru a vedea transmisia sistemului video de supraveghere detinut intr-o anumita locatie cu ajutorul unei conexiuni la internet, 3G sau 4G.
Cum functioneaza DDNS?
Daca doriti sa accesati o camera CCTV sau un server de gazduire dar adresele IP atribuite lor nu sunt statice, atunci serviciul DDNS este solutia.
Majoritatea providerilor de internet nu oferta IP static, dar pentru accesarea echipamentelor de monitorizare video fara a inlocui de fiecare data adresa IP se va configura serviciul DDNS. Similar cu un server DNS, acesta creaza o baza de date care contine relatiile dintre domenii si adresele numerice, actualizarea facandu-se la intervale de timp prestabilite sau automat la schimbarea adresei IP. Datorita acestei facilitati, DVR-ul/NVR-ul sau camerele tale vor fi disponibile la domeniu cunoscut, indiferent de IP-ul acestuia.
Wide temperature
Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -10°C si +55°C si cu umiditate de pana la 90%.
- Facial Recognition
- Face Picture Library
Up to 16 face picture libraries;
HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.
- Face Picture Comparison (Captured from Camera)4-ch face picture comparison alarm (HD analog camera)
- Motion Detection 2.0
- Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels,
it can classify human and vehicle, and extremely reduce false alarms caused by objects
like leaves and lights;
Quick search by object or event type is supported;
- Perimeter Protection
- Human/Vehicle AnalysisUp to 8-ch (advanced model)
- Facial Detection
- Facial Detection and Capture
Face picture detection, face picture search；
4-ch face picture capture
- Video and Audio
- IP Video Input
16-ch (up to 32-ch), each up to 4 Mbps
Up to 8 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input
16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDMI Output
1-ch, 4K (3840 × 2160)/30Hz,
2K (2560 × 1440)/60Hz,
1920 × 1080/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz
HDMI/VGA simultaneous output
- VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
HDMI/VGA simultaneous output
- CVBS InputPAL/NTSC
- CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
- Synchronous playback16-ch
- HDTVI Input8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328x1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
- AHD Input5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
- HDCVI Input8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@25fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Audio Input1-ch (up to 16-ch is optional), RCA (2.0 Vpp,1 KΩ), 16-ch via coaxial cable
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
- Frame Rate
Main stream:
8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- Video Bitrate32 Kbps to 10 Mbps
- Dual-streamSupport main stream or sub stream
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Decoding
- Decoding Capabilityup to 24-ch 1080P@30fps
- Network
- Total Bandwidth256 Mbps
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
- Remote Connection128
- Network Interface
1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- SATA2 SATA interfaces
- CapacityUp to 12 TB capacity for each disk
- Serial InterfaceRS-485 (half-duplex)
- USB Interface
Front panel: 1 × USB 2.0
Rear panel: 2 × USB 3.0
- Alarm In/OutN/A (optional to support)
- General
- Power Supply12 VDC, 5 A
- Consumption≤ 15 W (without HDD)
- Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)384 × 317 × 52 mm (15.1 × 12.5 × 2.0 inch)
- Weight≤ 2.1 kg (4.6 lb)
