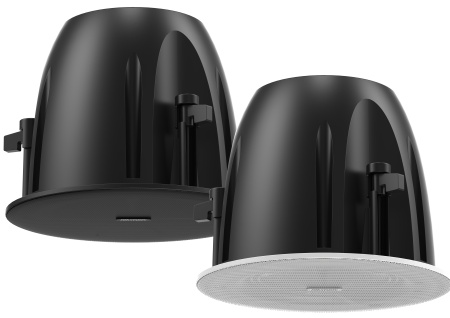

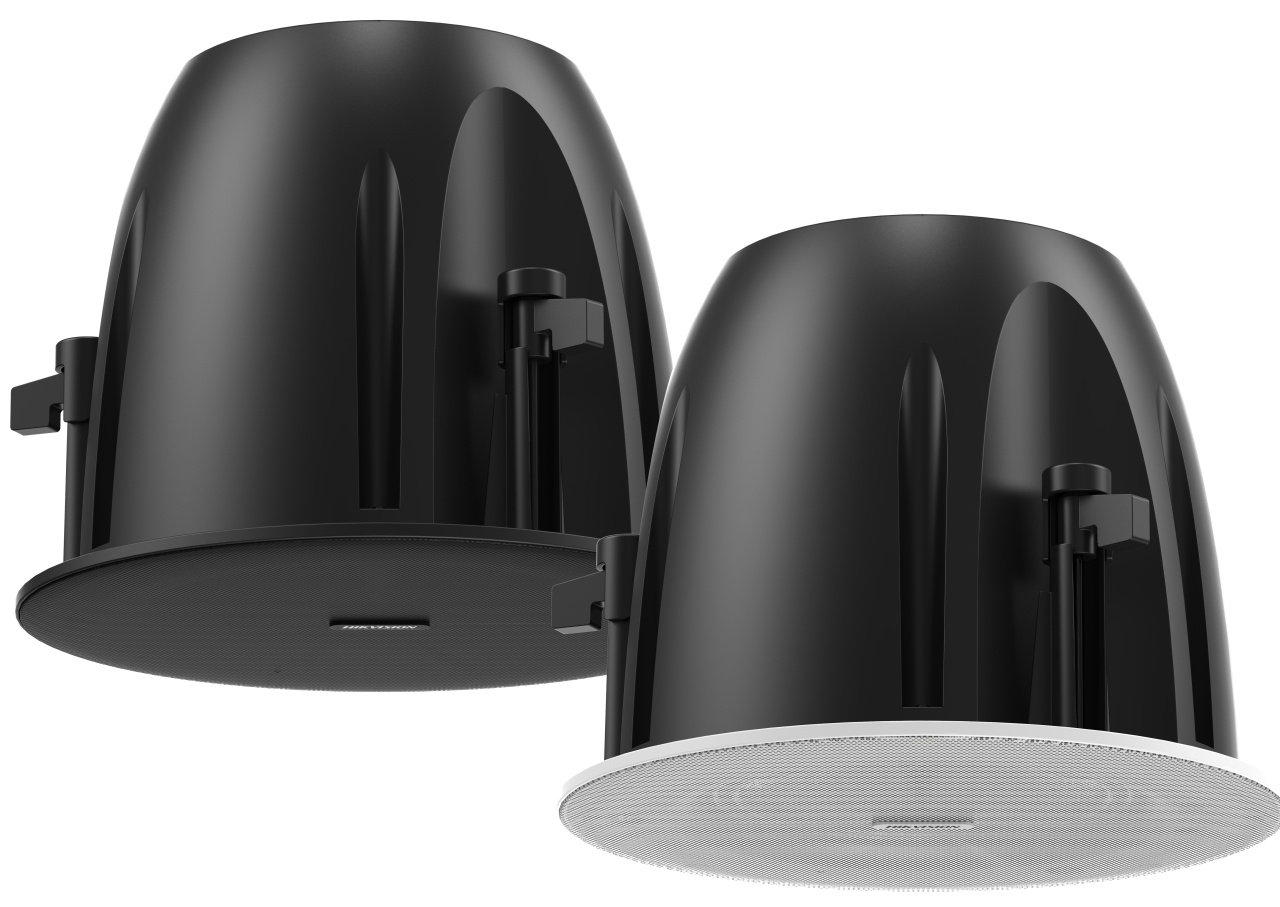

Difuzor IP PoE 10W Hikvision DS-QAZ1610G1-BE, tweeter 1” si woofer 6.5”, putere 10W, suport Hi PoE, broadcast schedule/live/emergency, audio bidirectional, alarm linkage, RJ45 Ethernet

HikVision
639,44 RON (TVA inclus)
528,46 RON (fara TVA)
HikVision
Cumpara de minim 500 lei pentru transport gratuit
Stoc 2
Cod produs - SKU DS-QAZ1610G1-BE
EAN 8922
Stoc limitat
Adauga la Favorite
Cum te putem ajuta?
Suna-ne: 0761.40.40.40 (Luni - Vineri: 08:30 - 17:30)
Trimite-ne un mesaj

Descriere

  • Protocol
  • Network ProtocolIPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP
  • Microphone
  • TypeMEMS
  • Amount2
  • Frequency Response100 Hz to 10 kHz
  • Sensitivity-38dBV/Pa
  • Speaker
  • Impedance8Ω
  • Rated Power10W
  • Total Harmonic Distortion (THD)≤1%
  • Sensitivity(1 m, 1 W)89dB
  • Max. Acoustic Pressure98dB
  • Frequency Response120Hz~20kHz(-10dB)
  • Speaker Unit1 × 1.0-inch tweeter and 1 × 6.5-inch woofer
  • Coverage AngleConical Coverage: 88°
  • Function
  • Audio AlgorithmAEC、AGC、ANS、DRC
  • Audio Bit Rate

    G.711ulaw（64 Kbps）/G.711alaw（64 Kbps）/MP3（128 Kbps）

    Sampling bit width: 16 bits

  • Speech SynthesisLanguage Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean, French
  • Audio
  • Number of Sub Speaker

    Hi-PoE/PoE++ (802.3bt) 60W: support 2* 10W sub speakers

    Hi-PoE/PoE++ (802.3bt) 90W: support 3* 10W sub speakers

    PoE midspan injector 60W: support 2* 10W sub speakers

    PoE midspan injector 75W: support 2* 10W sub speakers

    24 V, 5 A, max. 60 W: support 3* 10W sub speakers

  • Secondary Speaker Connection MethodVoltage Input
  • Interface
  • AlarmAlarm in
  • Network InterfaceRJ45 10 M/100 M Adaptive Ethernet port × 1
  • Local StorageBuilt-in 64 GB EMMC (Audio file storage is 55 GB.)
  • Audio In3.5 mm audio interface × 1
  • LED Indicator

    Solid green: normal working

    Flashing green: intercom in progress

    Solid red: start or network disconnection

    Flashing red: upgrading

  • ResetSupport
  • General
  • Power24 VDC ± 10%, 2.5 A, max. 60 W, PoE: 50 V to 57 V, 0 A to 1.6 A, max. 71 W
  • Material

    Main body: PC

    Base: ABS

  • DimensionØ242.78 mm × 192.7 mm (9.56" × 7.59")
  • Approx. 2.7 kg (5.95 lb.)
  • Language41 languages: English, French, Spanish, German, Italian, Japanese, Thai, Russian, Portuguese (Brazil), Arabic, Bulgarian, Czech, Danish, Greek, Spanish (Mexico), Estonian, Persian, Finnish, Hebrew, Croatian, Hungarian, Indonesian, Kazakh, Korean, Kirgiz, Lao, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Serbian, Swedish, Turkish, Ukrainian, Uzbek, Vietnamese
  • Package Dimension305 mm × 305 mm × 315 mm (12.01" × 12.01" × 12.4")
  • With Package WeightApprox. 2.9 kg (6.49 lb.)
  • Packing List

    Device × 1

    Regulatory Compliance and Safety Information × 1

    2-pin phoenix connector × 1

    4-pin phoenix connector ×1

  • BluetoothBluetooth 5.0, 10 m
  • Operating Temperature-10 °C to 45 °C
  • Operating Humidity＜90% (No condensation)
