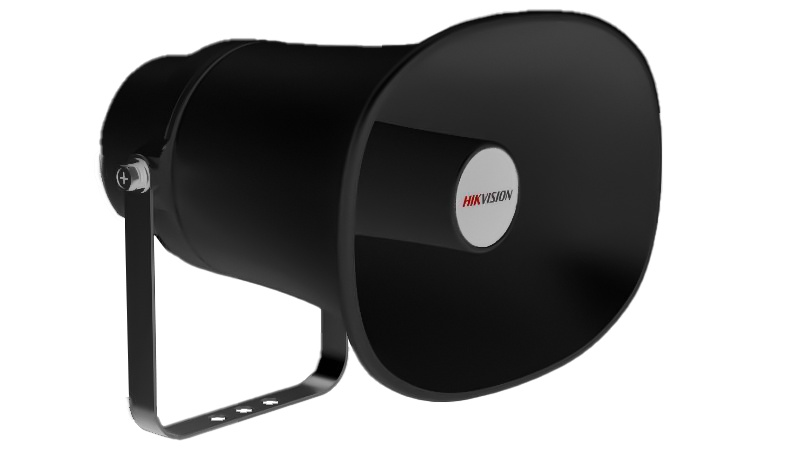

Difuzor IP HikVision tip Horn DS-PA0103-B, broadcast retea, redare audio de pe card SD, comunicare unidirectionala, colectare sunet in timp real de la distanta, alimentare PoE, suporta fisiere audio sau stream live

Descriere

• Parameters
• Max sound pressure level120 db
• Network Interface10/100Base-TX self-adaptive network, RJ45 interface
• Network ProtocolTCP, UDP, RTP, ARP, ICMP, DHCP, DNS, IGMP, HTTP
• Audio ProtocolMP3, G.711a/u, G.722
• Storage

  Micro SD Card, up to 32 GB

  *need SD card to play pre-recorded audio

• MIC Input0.2 Vrms
• Speaker Output8 Vrms
• Power InputPoE (IEEE 802.3af), maximum 13 W
• Approvals

  EN 55022 Class B, EN 61000-6-1, EN 61000-6-2, EN 55024,

  EN 50121-4, IEC 62236-4, FCC Part 15 Subpart B Class B,

  ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22 Class B,

  KCC KN22 Class B, KN24, IEC/EN/UL 60950-1,

  IEC/EN/UL 60950-22, IEC 60068-2-1, IEC 60068-2-2,

  IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-64,

  IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67,

• ColorWhite
• WeightApprox. 1.5 kg (3.31 lb.)
• Material

  Casing: aluminum alloy

  Rear cover: stainless steel

• Dimension

  With bracket: 242 mm × 182 mm × 338.5 mm (9.53" × 7.17\" × 13.33\")

  Without bracket: 242 mm × 182 mm × 250 mm (9.53 × 7.17\" × 9.84\")"

• Power consumption< 1 W (without sound), maximum 13 W (producing sound)
• Protection levelIP67
• Operating Temperature-40°C to 60°C (-40°F to 140°F)
• Frequency Response300 Hz~12.5 kHz
• Coverage Pattern70° horizontal by 100° vertical
• Amplifier DescriptionBuilt-in 15 W Class-D amplifier
