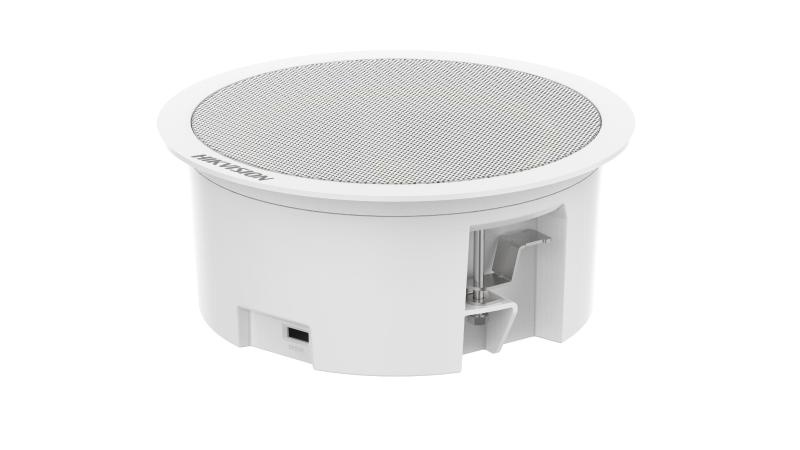

Difuzor de tavan IP Hikvision Ceiling 3W DS-QAZ1203G1-BE, retea Network, alimentare PoE, TTS speech synthesis, SPL maxim 97 dB, difuzare live/urgenta, linkare alarma, gama completa 5", culoare alb, montaj incastrat

Descriere

• Speaker
• Rated Power3 W
• Impedance8 Ω
• Max. Acoustic Pressure97 dBSPL
• Sensitivity(1 m, 1 W)93 dB
• DirectionAll directions
• Frequency Response300 Hz to 15 kHz
• SNR82 dB
• Speaker UnitFull frequency 5′′ × 1

• Function
• Audio AlgorithmAEC、AGC、ANS、DRC
• Audio Bit Rate

  G.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps)

  Sampling bit width: 16 bits

• Audio File FormatMP3, WAV
• NTP TimingSupport
• BroadcastRegular broadcast, live broadcast, emergency broadcast
• Speech SynthesisLanguage Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil)

• Network
• Network ProtocolIPv4, HTTP, HTTPS , SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH
• Interface Protocol (API)ISAPI, ISUP, SIP, RTP,ONVIF
• ClientHik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone

• Functions
• Audio FunctionSupports digital noise reduction, manually adjustable for 5 gears to ensure communication/audio quality.

• Communication
• Communication MethodSupport wired network and bluetoothcommunication

• Interface
• Ethernet InterfaceRJ45 10 M/100 M Adaptive Ethernet port × 1
• Local StorageBuilt-in 4 GB EMMC (Audio file storage is 1 GB.)
• APIISAPI, ISUP, SIP,ONVIF
• AlarmAlarm input × 2
• Audio In3.5 mm audio interface × 1
• Audio Out

  Fixed resistance output × 1，phoenix terminal，8 Ω

  *The primary speaker(3 W, 8 Ω) can be connected to a maximum of 3 secondary speakers(3 W, 8 Ω).

• General
• PowerPoE: 802.3at，12 VDC/1.5 A
• MaterialDevice body: plastic; Mesh cover: metal
• Language9 languages: English, French, Spanish, German, Italian, Russian, Japanese, Thai, Portuguese (Brazil)
• DimensionØ179 mm × 73.5 mm (Ø7.05" × 2.89") (Hole size: 160 mm）
• Package Dimension255mm × 243mm × 175mm (10.04" × 9.57" × 6.89")
• WeightApprox. 0.3 kg (0.66 lb.)
• With Package WeightApprox. 0.5 kg (1.1 lb.)
• ColorWhite
• Packing List

  Device × 1

  Mesh cover × 1

  Regulatory Compliance and Safety Information × 1

• BluetoothBluetooth 5.0, 10 m
• Operating Temperature-10 °C to 50 °C(14 °F to 122 °F)
• Operating Humidity＜90% (No condensation)

• Approval
• RF

  CE-RED:EN 301489-1 V2.2.3 (BT or 2.4G),EN 301489-17 V3.2.4 (BT or 2.4G),EN 300 328 V2.2.2 (BT or 2.4G) ,EN62311 2020(BT or 2.4G)

  RCM: EN 300 328 V2.2.2 (BT or 2.4G) ,AS/NZS 2772.2:2016+A1:2018, ARPANSA RPS S-1 Radiation Protection Series S-1 (Rev.1), ARPANSA RPS S01 Advisory Note

  IC ID: RSS-247(BT or 2.4G)

  ANATEL: Resolution No. 680/2017,Act No. 14448/2017,Act No. 950/2018,Act No. 1120/2018

• EMCCE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7
• Safety

  CB: IEC 62368-1:2014

  CE-LVD: EN 62368-1:2014/A11:2017

• Environment

  CE-RoHS: 2011/65/EU

  WEEE: 2012/19/EU

  Reach: Regulation (EC) No 1907/2006
