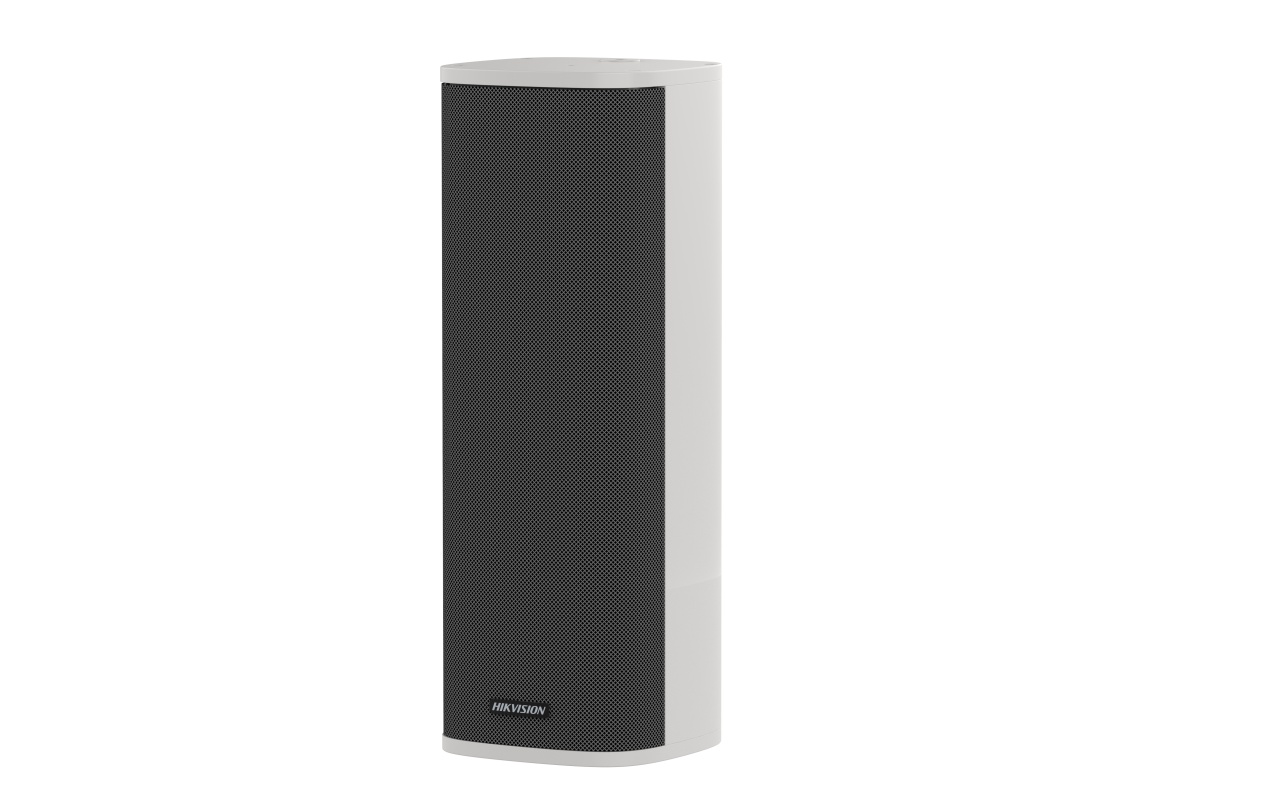

Difuzor de retea audio public Hikvision DS-QAZ14A2G1, 2×5.25″ low + 1×1″ high, putere 120W, sensibilitate 86 dB, max SPL 107.5 dB, frecventa 100 Hz–20 kHz, live/schedule/emergency broadcast, TTS, doua cai audio

HikVision
2.488,92 RON (TVA inclus)
2.056,96 RON (fara TVA)
HikVision
Cumpara de minim 500 lei pentru transport gratuit
Stoc 1
Cod produs - SKU DS-QAZ14A2G1
EAN 8762
Stoc limitat
Adauga la Favorite
Cum te putem ajuta?
Suna-ne: 0761.40.40.40 (Luni - Vineri: 08:30 - 17:30)
Trimite-ne un mesaj

Descriere

  • Microphone
  • Tipelectret
  • Amount2
  • Frequency Response100 Hz to 20 kHz
  • Sensitivity-42 dBV/Pa
  • Sampling Rate48 kHz
  • Quantization Bits16 bit
  • Speaker
  • Rated Power120 W
  • Impedance4 Ω
  • Max. Acoustic Pressure107.5 dBSPL
  • Sensitivity(1 m, 1 W)86 dB
  • DirectionAll directions
  • Frequency Response100 Hz to 20 kHz
  • SNR85 dB
  • Speaker UnitLow frequency 5.25′′ × 2，high frequency 1′′ × 1
  • Coverage Angle

    Horizontal: 190°

    Vertical: 140°

  • Function
  • Audio AlgorithmAEC、AGC、ANS、DRC
  • Audio Bit Rate

    G.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps)

    Sampling bit width: 16 bits

  • Audio File FormatMP3, WAV
  • NTP TimingSupport
  • BroadcastRegular broadcast, live broadcast, emergency broadcast
  • Two-Way AudioSupport
  • Speech SynthesisLanguage Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean, French
  • Network
  • Network ProtocolIPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH
  • Interface Protocol (API)ISAPI, ISUP, SIP, RTP,ONVIF
  • ClientHik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone
  • Communication
  • Communication MethodSupport wired network communication
  • Interface
  • Ethernet InterfaceRJ45 10 M/100 M Adaptive Ethernet port × 1
  • Local StorageBuilt-in 4 GB EMMC (Audio file storage is 1 GB.)
  • APIISAPI, ISUP, SIP,ONVIF
  • AlarmAlarm input × 2
  • Audio InLine in × 1, phoenix terminal
  • LED Indicator

    Green light on: normal

    Green light flash: intercom in progress

    Red light on: start or network disconnection

    Red light flash: upgrading

  • RESETARESupport
  • General
  • Power100 VAC to 240 VAC
  • MaterialMetal
  • Operating Temperature-40°C to 60 °C(-40 °F to 140 °F)
  • Operating Humidity＜90% (No condensation)
  • Dimension160 mm × 160 mm × 446.8 mm(6.3" × 6.3" × 17.59")
  • Package Dimension715 mm × 265 mm × 250 mm(28.1" × 10.4" × 9.8")
  • Approx. 6.2 kg(13.67 lb.)
  • ColorWhite
  • With Package WeightApprox. 8 kg(17.64 lb.)
  • Packing List

    Device × 1

    Screw pack × 1

    Support × 1

    L-shaped wrench × 1

    Regulatory Compliance and Safety Information × 1

  • Language41 languages: English, French, Spanish, German, Italian, Japanese, Thai, Russian, Portuguese (Brazil), Arabic, Bulgarian, Czech, Danish, Greek, Spanish (Mexico), Estonian, Persian, Finnish, Hebrew, Croatian, Hungarian, Indonesian, Kazakh, Korean, Kirgiz, Lao, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Serbian, Swedish, Turkish, Ukrainian, Uzbek, Vietnamese
  • Approval
  • ProtectionIP66: IEC 60529-2013
  • EMCCE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7
  • Safety

    CB: IEC 62368-1:2014

    CE-LVD: EN 62368-1:2014/A11:2017

  • Environment

    CE-RoHS: 2011/65/EU

    WEEE: 2012/19/EU

    Reach: Regulation (EC) No 1907/2006

Detalii

SKU
DS-QAZ14A2G1
EAN
8762
Categorii
Sonorizare
Brand
HikVision
Fisa tehnica
DS-QAZ14A2G1_Datasheet_20240531.pdf
