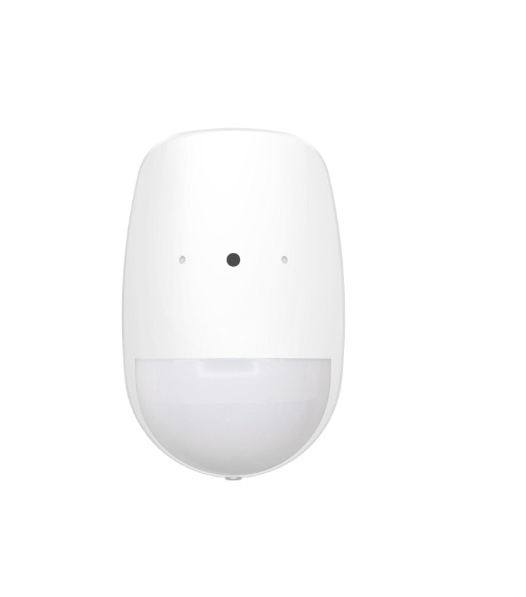

Detector PIR de geam Hikvision DS‑PDPG12P‑EG2 cu detectie PIR 12m/85.9°, detectie spartura geam 8m/120°, imunitate animale pana la 30 kg, rezistori EOL selectabili, alimentare 9‑16 VDC cu protectie polaritate inversa

Descriere

• Detection Performance
• Detection MethodPassive Infrared;Acoustic Sensor
• Detection Range12m
• Detection Angle85.9°
• Detection Zones52
• Detectable Speed0.3～2m/s
• Pet Immunity30Kg
• PIR SensitivityAuto,Pet
• White Light Filter6500lux
• Glass Break Range8m
• Glass TypeFloat;Plate;Tampered;Wired;Laminated Leaded;Double Glazing
• Glass Break SensitivityPotentiometer Adjustment
• Glass Thickness2.4mm to 6.4mm
• Digital Temperature CompensationSupport
• Glass Size0.3m x 0.3m to 3m x 3m
• Creep Zone ProtectionSupport

• Feature
• Digital ProcessingSupport
• Sealed OpticsSupport
• Tamper ProtectionFront

• Interface
• Alarm OutputNormally Closed
• LED IndicatorGreen(PIR),Red(BG),Blue(alarm)

• Transmission
• Transmission MethodWired

• Electrical Characteristics
• Power Supply9 to 16 VDC
• Typical Voltage12 VDC
• Power Consumption

  Maximum current：26mA @12VDC

  Quiescent current：36mA@12VDC

• General
• Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
• Operation Humidity10% to 90%
• Dimension(WxHxD)65.5mm×103mm×48.5mm
• Weight98.5g
• Mounting Height1.8 to 2.4m
• Mounting MethodWall
• Application ScenarioIndoor
• BracketOptional Wall & Ceiling Accessory
