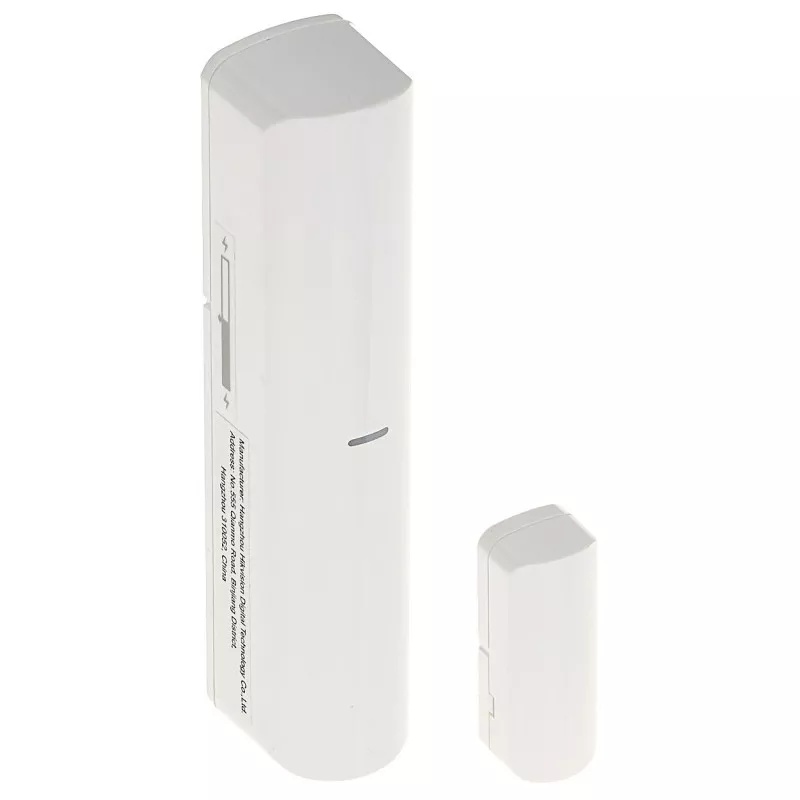

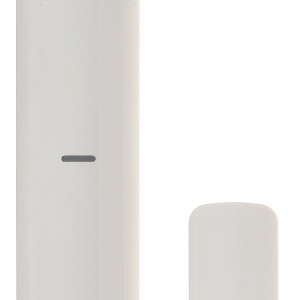

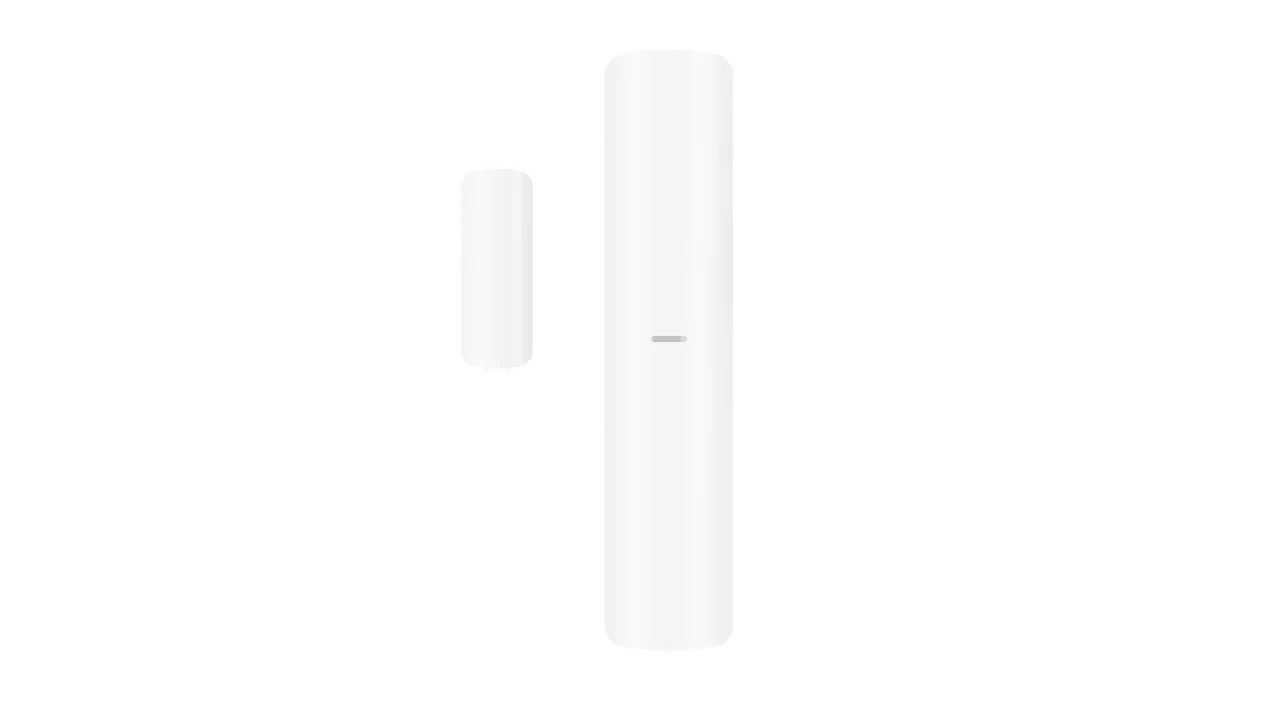

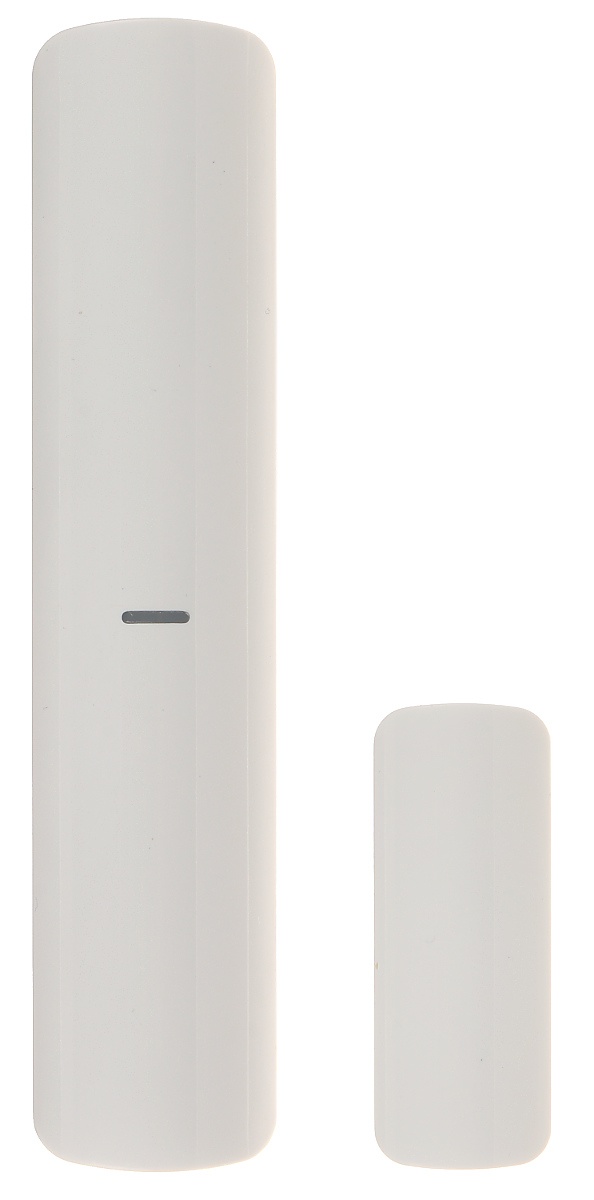

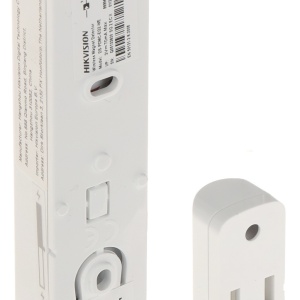

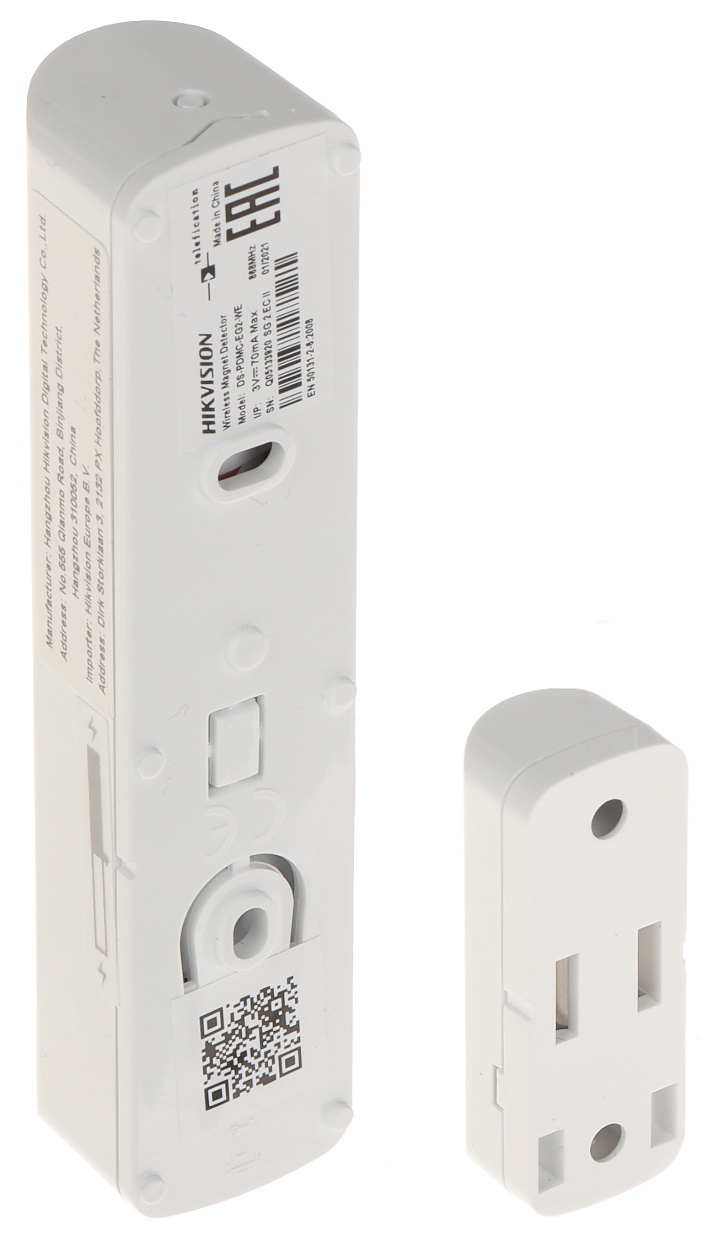

Detector Hikvision de șocuri magnetice fără fir DS-PDMCK-EG2-WE

Descriere

• Detection Performance
• Detection MethodOpening Contact;Shock Sensor
• Detection Gap43mm Max
• Sensitivity

  Shock Detection: High,Normal,Low

  Tilt Detection: Up to 25°

• Feature
• Digital ProcessingSupport
• Tamper ProtectionFront;Rear
• Environment Temperature IndicatorSupport
• Signal Strength IndicatorSupport

• Interface
• Alarm InputNormally Closed;Normally Open;Impulse Count
• Power SwitchPower Up Enrolling
• LED IndicatorGreen(MC),Orange(tilt),Red(shock),Blue(alarm)

• Transmission
• Transmission TechnologyTri-X Wireless
• Transmission MethodTwo-Way RF Wireless
• Transmission Frequency868MHz
• Transmission SecurityAES-128 Encryption
• Transmission Range(Free Space)1.6Km
• Frequency HoppingSupport
• Enrolling MethodPower up;Remote ID;QR Code

• Electrical Characteristics
• Standard Battery Life

  3 years in work status (being triggered 20 times per day)

• Power SupplyBattery Powered

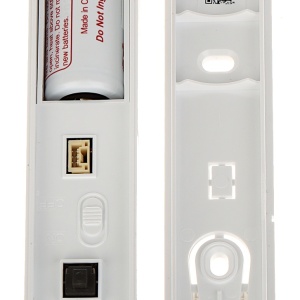

• Battery TypeCR123A x 1
• Typical Voltage3V

• General
• Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
• Operation Humidity10% to 90%
• Dimension(WxHxD)

  22.5mm × 103mm × 23.2mm

  13mm × 34.4mm × 11.4mm

• 60g
• Application ScenarioIndoor
