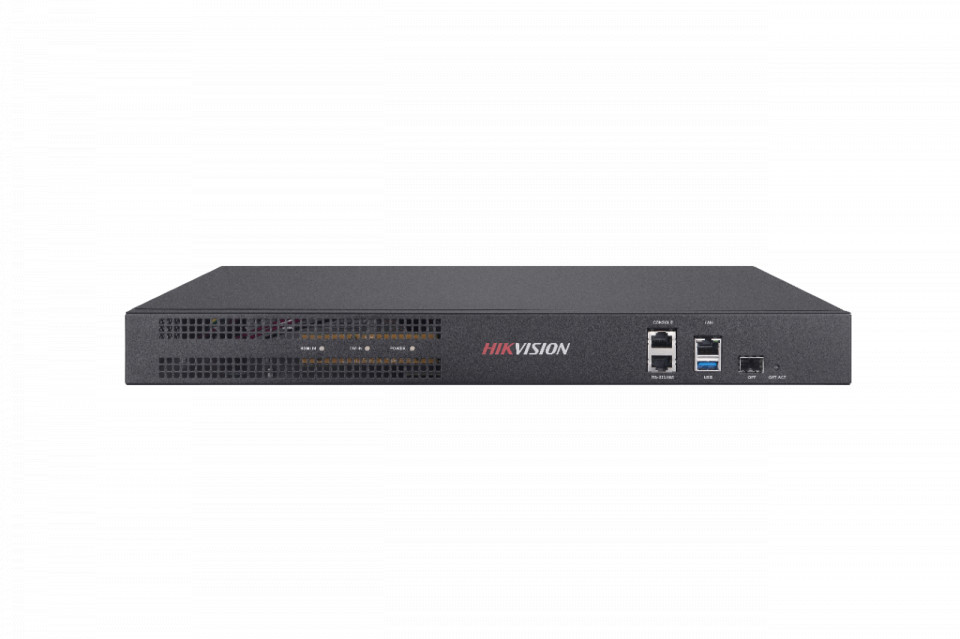

Decodor Video 4K HikVision DS-6904UDI(B), 4 iesiri HDMI, 2 iesiri BNC, decodare pana la 24MP, capacitate 36 canale 1080p, interfata optica SFP, intrare HDMI 4K si DVI, management Video Wall, rackabil 1U

Descriere

• Input/Output
• InputHDMI, DVI-I
• Input Resolution4K: 3840 × 2160@30 Hz (only for HDMI), 1080p: 1920 × 1080@50/60 Hz, 720p: 1280 × 720@50 Hz/60 Hz
• OutputHDMI × 4, BNC × 2
• Output Resolution

  HDMI:

  4K: 3840 × 2160@30 Hz ( only for odd interface), 1080p: 1920 × 1080@50/60 Hz, 720p: 1280 × 720@50 Hz/60 Hz

  BNC:

  PAL: 704 × 576, NTSC: 704 × 480

• Decoding
• Decoding ResolutionUp to 24MP (only for 3 encoder tracks mode)
• Decoding Channel72-ch
• Decoding Capability

  24MP@30fps: 2-ch,

  12MP@20fps: 4-ch,

  8MP@30fps: 8-ch,

  5MP@30fps: 12-ch,

  3MP@30fps: 20-ch,

  1080p: 36-ch,

  720p: 72-ch

• Split Screen1/2/4/6/8/9/12/16/25/36

• Interface
• Network Interface

  RJ45 interface × 1, 10/100/1000 Mbps adaptive

  Optic interface × 1, 100 base-FX/1000 base-X

  An RJ45 interface and an optic interface form a combo.

• Serial InterfaceRS-232 (RJ45) × 1, RS-485 × 1
• Two-Way Audio OutN/A
• Two-Way Audio InN/A
• Alarm InN/A
• Audio Output4
• Alarm OutN/A

• General
• Power Supply100 to 240 VAC
• Power Consumption≤ 70 W
• Dimensions(W × D × H)440 mm × 320.8 mm × 44.5 mm (17.32 inch × 12.63 inch × 1.75 inch)
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90%
• ≤ 5.2 kg (11.46 lb)
