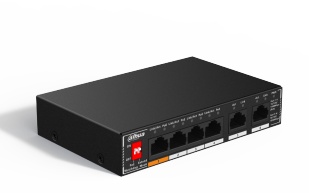

Dahua PoE Unmanaged Desktop Gigabit Switch, 4xGbit RJ-45, 2xGbit RJ-45, DH-SG1006P

Descriere

Specification
Hardware Feature
Ethernet Port Port 1-4:4 × RJ-45 10/100/1000Mbps(PoE)
Port 5-6:2 × RJ-45 10/100/1000Mbps(Uplink)
PoE Power Consumption
Port1≤ 60 W (Hi-PoE)
Port2-4 ≤30 W
Total≤60 W
Power Consumption Idling: 0.96 W
Full load: 60 W
Standard IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
PoE
PoE Protocol IEEE802.3af/ IEEE802.3at/ Hi-PoE
Power Supply Pin 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Long Distance 250 m long distance PoE transmission
PoE Power Management Yes
PoE Watchdog Yes
Performance
Switching Capacity 14 Gbps
Packet Forwarding Rate 8.928 Mbps
Packet Buffer Memory 1 Mbit
MAC Address Table 2 K
Flow Control Enable by default
Working Temperature –10 °C to 55 °C (+14°F to +131°F)
Application Humidity 5%–95% (RH)
General
Power Input 48 V - 57 V DC
Lighting Protection Common mode: 4 kV
Differential mode: 2 kV
ESD Protection Air discharge: 8 kV
Contact discharge: 6 kV
Wall-mount Installation Yes
Anti-theft Lock Hole Yes
Weight 0.30 kg (0.64 lb)
Dimension 130 mm × 85 mm × 26 mm (5.12" × 3.35" × 1.02")
Dimensions (mm[inch])
Panels
All-giga PoE Switch | DH-SG1006P
130.0 [5.12]
26.0 [1.02] 84.8 [3.34]
90.6 [3.57]
Rev 002.000 © 2023 Dahua. All rights reserved. Design and specifications are subject to change without notice.
The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product.
Transmission Performance:
Switch power supply voltage 53V.
CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m
Cable(m) Load Capacity(W) Bandwidth(Mbps)
IEEE802.3bt 90 W
100 71.3 100
150 62 10
200 51 10
250 40 10
Hi-PoE 60 W
100 53 100
150 50 10
200 47 10
250 37 10
IEEE802.3at 30 W
100 25.5 100
150 25.5 10
200 25.5 10
250 25.5 10
