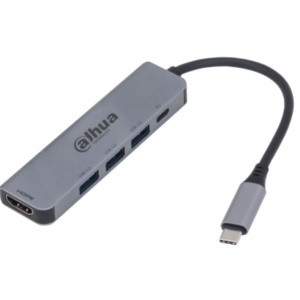

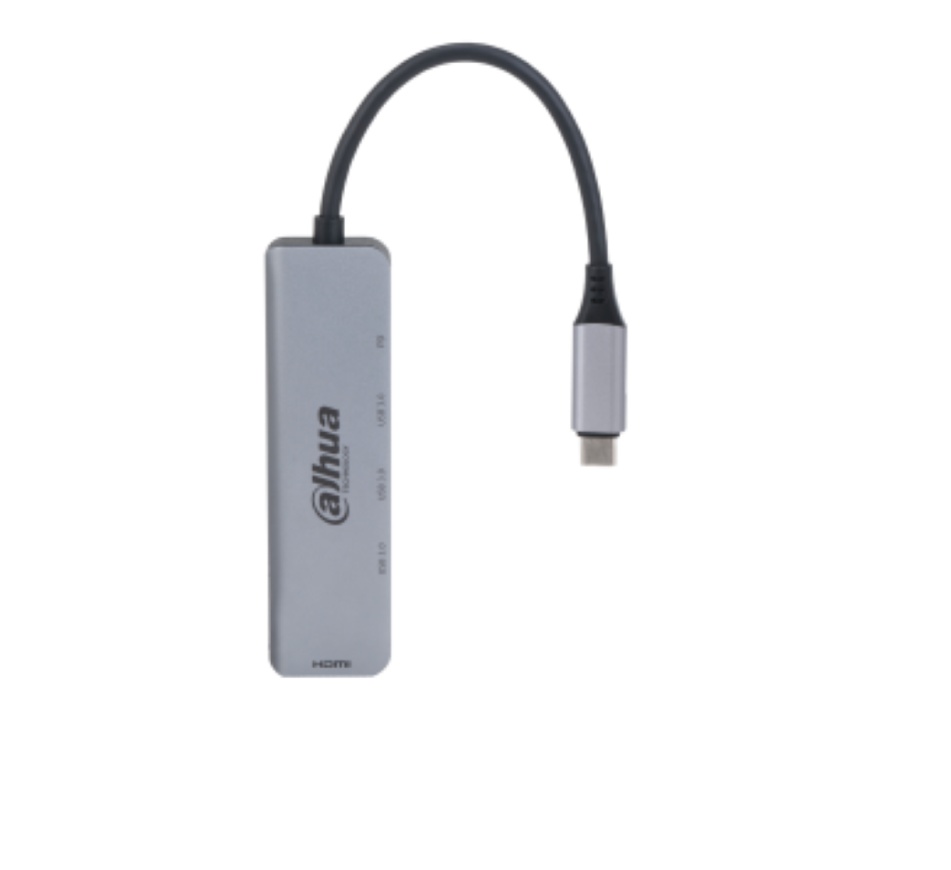

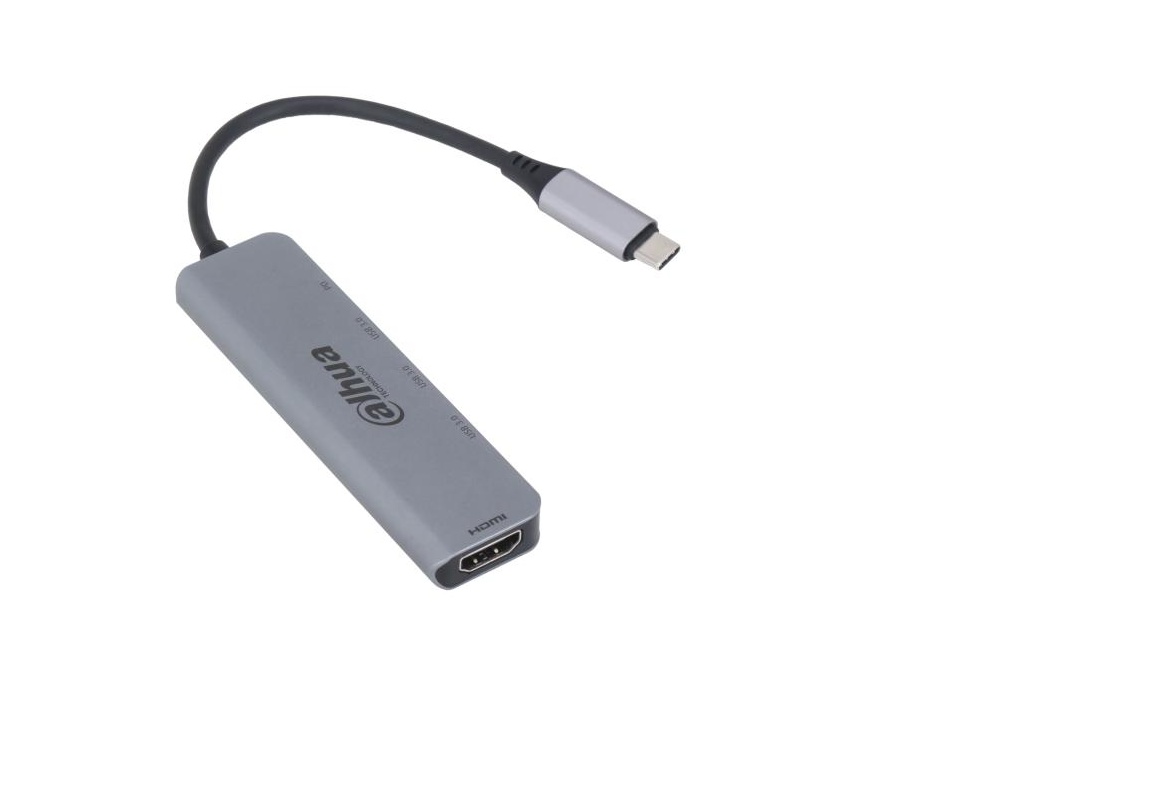

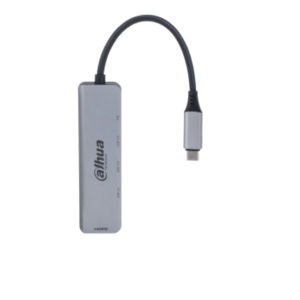

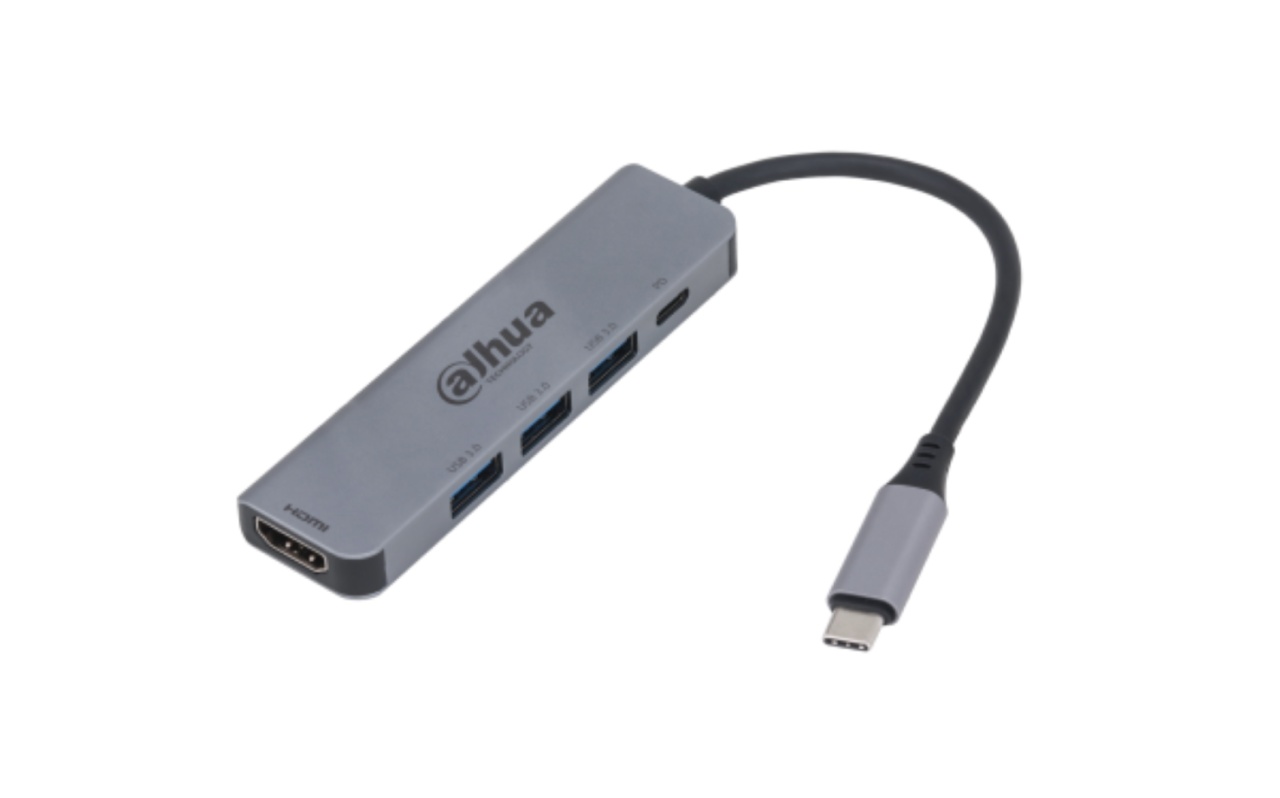

DAHUA 5 IN 1 USB 3.1 TYPE-C TO HDMI Docking station, intrare: USB Type- C, Iesire: 3 x USB 3.0, 1 x HDMI, 1 x PD, DH-TC35

Descriere

Specification
Docking Station
Number of Ports 6
Port Type
Input:
USB 3.1 Type-C Plug
Output:
3 * USB 3.0
1 * HDMI
1 * PD
HDMI Supports 4K@30 Hz
USB 3.0 3 × USB 3.0-A, supports USB 3.0 GEN1 speed read and
write, and is compatible with USB 2.0.
Type-C Plug Supports charging devices with 100 W and data
transmission.
Operating Voltage 20 VDC
Current 2.125 A
Power Consumption 42.5 W
Operating Temperature 0 °C to +40 °C (+32 °F to +104 °F)
Storage Temperature –20 °C to +70 °C (–4 °F to +158 °F)
Net Weight 40 g (0.088 lb)
Gross Weight 75 g (0.17 lb)
Product Dimensions 101.0 mm × 28.0 mm × 10.0 mm
(3.97" × 1.10" × 0.39") (L × W × H)
Packaging Dimensions 210.0 mm × 96.0 mm × 25.5 mm
(8.27" × 3.78" × 1.00" ) (L × W × H)
DC Charging Yes
4K Output to External
Displays Yes
Compatibility Game console, phone, laptop and tablet.
Casing Material Aluminum Alloy
