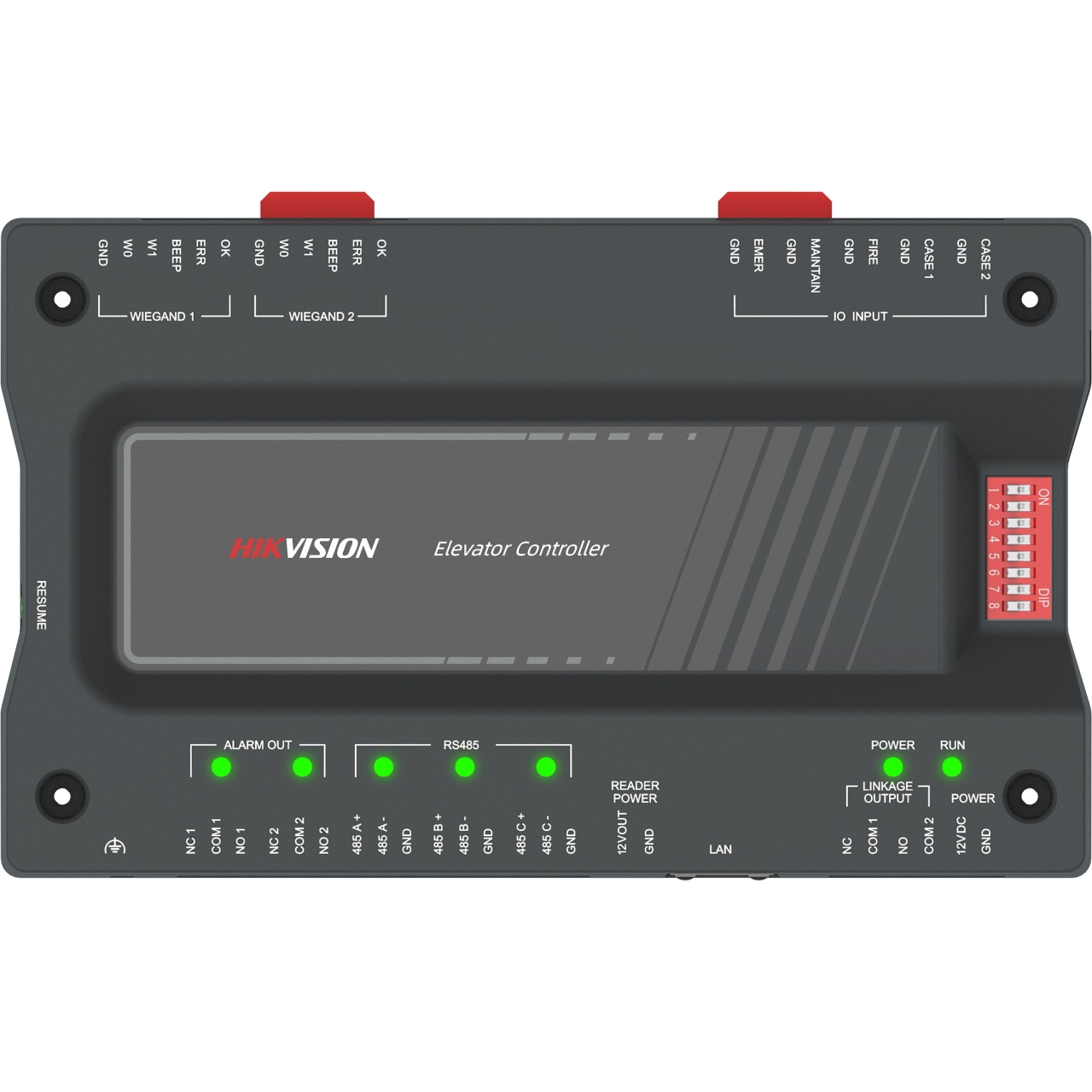

Controler acces HikVision DS-K2220X-P, master elevator controller, TCP/IP & RS-485, 2× Wiegand/RS485 reader support, 10,000 users, 30,000 cards, 10,000 fingerprints, 100,000 events, alarm I/O, DIN-rail
Cumpara de minim 500 lei pentru transport gratuit
Cum te putem ajuta?
Descriere
System
- Operating systemLinux
- Processor32 bit
Network
- Communication protocolTCP/IP
Interface
- Alarm input1 Panic Button; 1 Fire Alarm Button; 1 Maintenance Button
- Alarm output2 Relay Outputs
- RS-4853
- Wiegand2
Capacity
- User capacity10,000
- Fingerprint capacity10,000
- Card capacity30,000
- Event capacity100,000
General
- Indicator
1. Power On: Solid Green
2. Network Armed: Flashing Green, Network Not Armed: Solid Red
3. Serial Port Not Communicating: Light Off, Serial Port Communicating: Solid Green
4. Relay NC: Light Off, Relay NO: Solid Green
5. Network Disconnected: Light Off, Network Cable Connected: Solid Green, Flashing Green
- Power supply12 VDC±15%
- Working temperature-10 °C to 55 °C (14 °F to 131 ° F)
- Working humidity0% to 90% (No Condensation)
- Dimensions166.85 mm × 101 mm × 29.5 mm (6.57" × 3.98" × 1.16")
- InstallationDIN Rail installation
