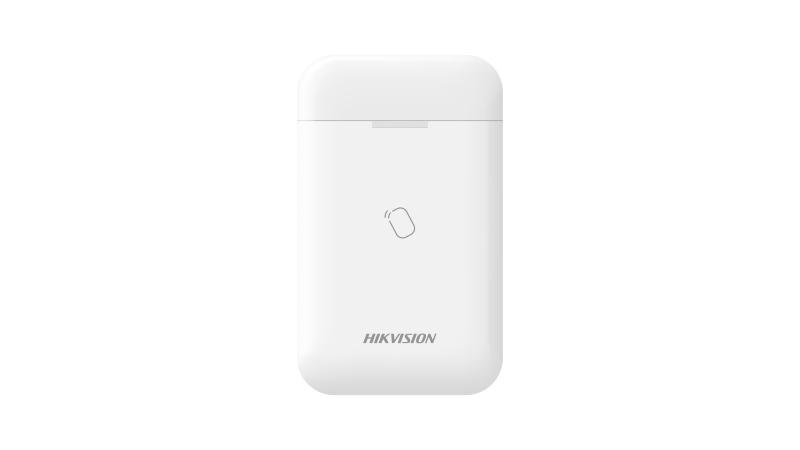

Cititor acces control card , wireless ,Hikvision DS-PT1-WE(B)

Descriere

• Hardware features
• Power switchPower on/off

• Electrical characteristics
• Battery type3 × AA batteries
• Operation humidity10% to 90% (no condensing)
• Operation temperature-10°C to 55°C (-4°F to +122°F)
• Power consumption

  Quiescent current: 110 uA

  Max current: 292mA

  Voltage: 1.5 VDC

• Battery life spanUp to 2 years (standby time)

• Wireless transmission
• RF frequency868 MHz
• RF modulation2GFSK
• RF distance1200 m (open area)

• Display
• Indicator5, area(blue), fault(orange), arm(blue), disarm(green), alarm(red), signal(red/green)

• General
• Installation methodWall-mounting
• Dimension(WxHxD)75 ×124 × 21 mm
• Colorwhite
• Weight183 g
