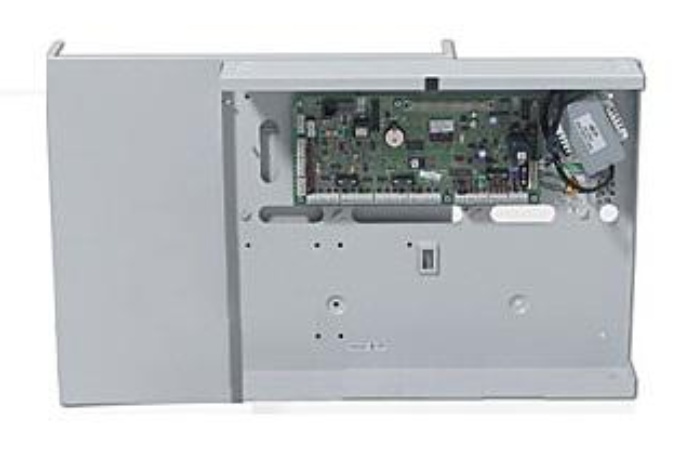

Centrala Galaxy pana la 96 de zone, Honeywell C096-D-E4

Descriere

Basic parameters
Power supply voltage 230 V / 50 Hz
Recommended transformer type included
Max. total consumption from AUX terminals 1 A
Max. size of recharging current to the accumulator 1,25 A
Max. capacity of backup ACU 34 Ah / 12 V (max. 17 Ah into Galaxy cover)
Individual consumption of control panel 250 mA
Bus branching forbidden
Max. bus length 1000 m
Output types for siren relay
Siren output load 1 A
Control panel cover dimension - heigth 352 mm
Control panel cover dimension - width 440 mm
Control panel cover dimension - depth 90 mm
Control panel cover color gray
Weight (without accumulator) 6,4 kg
Environment class II - general indoor
Security grade 3
NBU SS91=3
Zones
Basic number of control panel's zones 16
Max. total number of zones 96
Max. number of concentrators 10

Wireless zones yes, optional accessories
Operating frequency 868 MHz
Zone ending DBAL (1k, 2k2, 4k7, 5K6) optional EOL (1k, 2k2, 4k7, 5K6)
Number of zone types 60
Global zones omitting in group yes
Groups
Max. number of groups 16
Partial arming / night arming yes / Yes
Automatic control of common space yes
Logical switch on of common space yes
Library (number of words) yes (538)
Programmable outputs
Basic number of control panel PGM outputs 8+6
Max. number of PGM outputs 48+6
PGM output load 400 mA (10mA)
Number of output types 92
PGM output of LINK type yes
Number of LINK type outputs 15
Number of all links 128
User parameters
Number of user codes 250
Max. number of users of access control 250 (* a subset of superuser)
Max. number of wireless controllers/keyfob 100 (* a subset of superuser)
User code length four to six-digit
Počet vzorů přístupových práv 50
Event memory 1500
Event memory - reader pass 1000
Automatic arming / disarming yes
Week timer yes (2 x output)
Týdenní časové rozvrhy 35
Detector control before arming yes
Max. number of keypads 16
Function keys on keypad 2
Controlling
Numerical user code yes
Wireless control / keyfob yes
Proximity card yes
Contact (keyswitch zone) yes
Simultaneous more users operation yes (max 8)
Keyboard
LCD yes (MK7)
