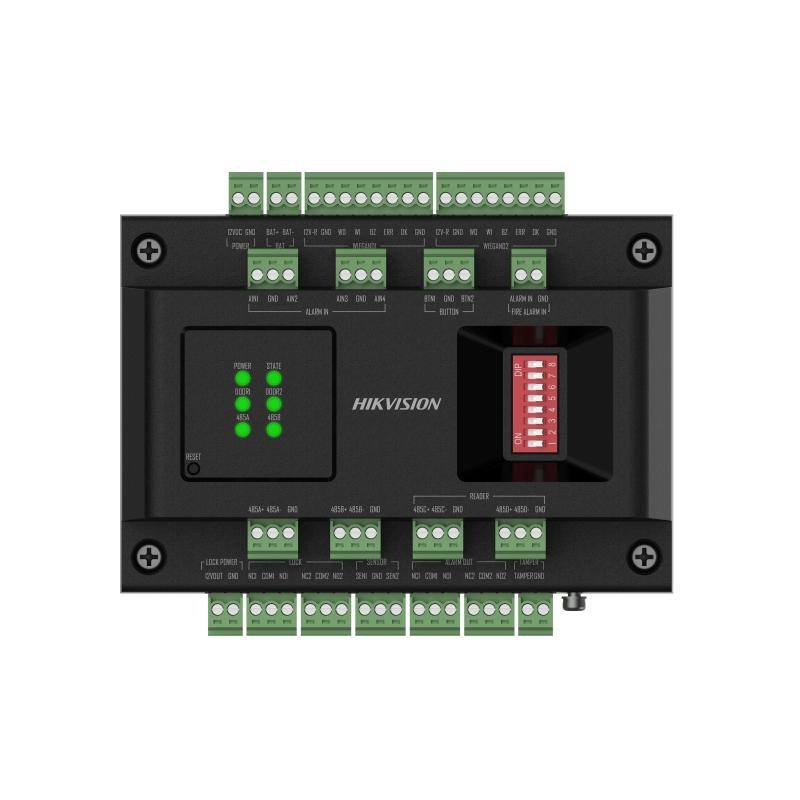

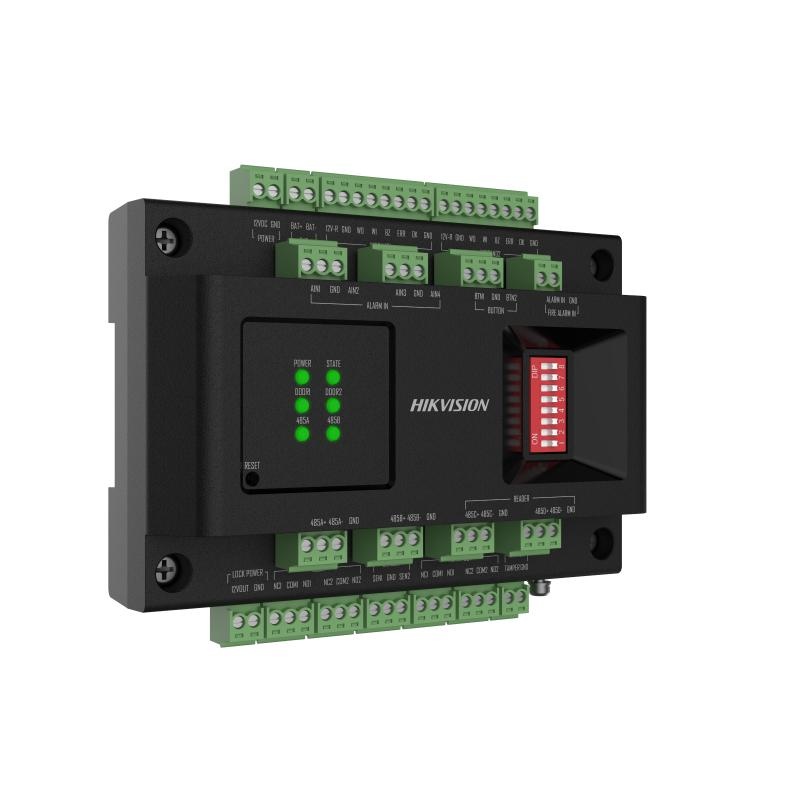

Centrala control acces Hikvision DS-K2M002X

Descriere

• System
• Operating systemMCU

• Interface
• Lock control2
• Exit button2
• Door contact input2
• Alarm input4
• Alarm output2
• TAMPER1
• RS-4854, 2 for card reader, 2 for access controller
• Wiegand2, standard 26/34 input, supports custom Wiegand settings

• Capacity
• Linked door capacity2 doors
• Linked card reader capaciry4 RS-485 card readers (OSDP protocol) and 2 Wiegand card readers

• General
• Indicator6 indicators, 1 for indicating power status, 1 for running status, 2 for communication status, and 2 for door status
• BatteryCharge and discharge
• Power supply12 ± 15% VDC
• Power consumption≤ 50 W
• Working temperature-10 °C to 55 °C (14 °F to 131 ° F)
• Working humidity0% to 90% (No condensing)

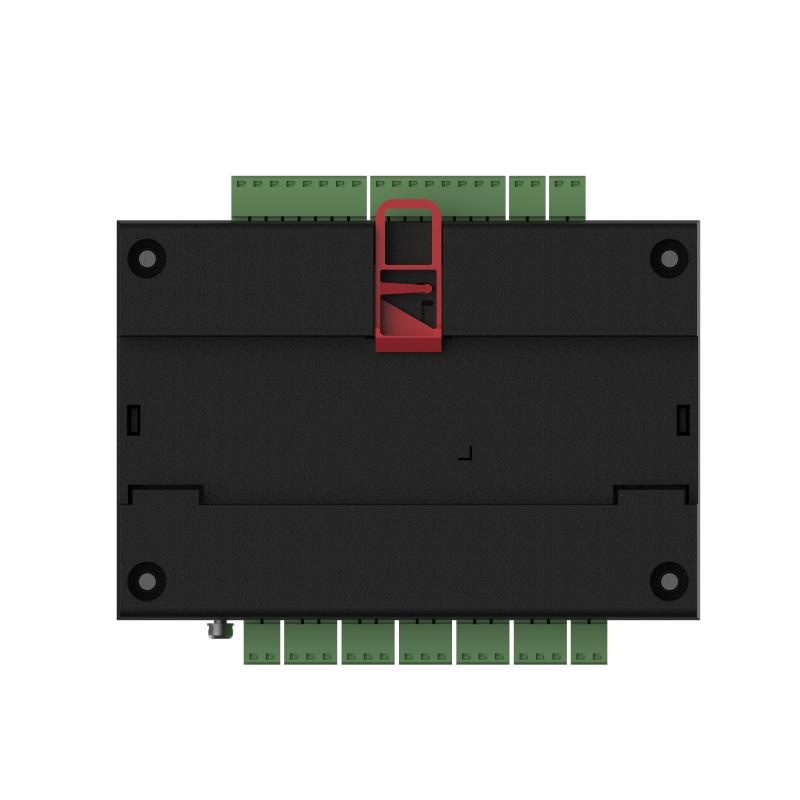

• InstallationInstallation with guide rail

• Function
• Configuration via Web browserSupport via access controller
• Multi-factor authenticationSupport via access controller
• First person inSupport via access controller
• Multi-door interlockingSupport via access controller: supports 32 groups (32 doors each)
