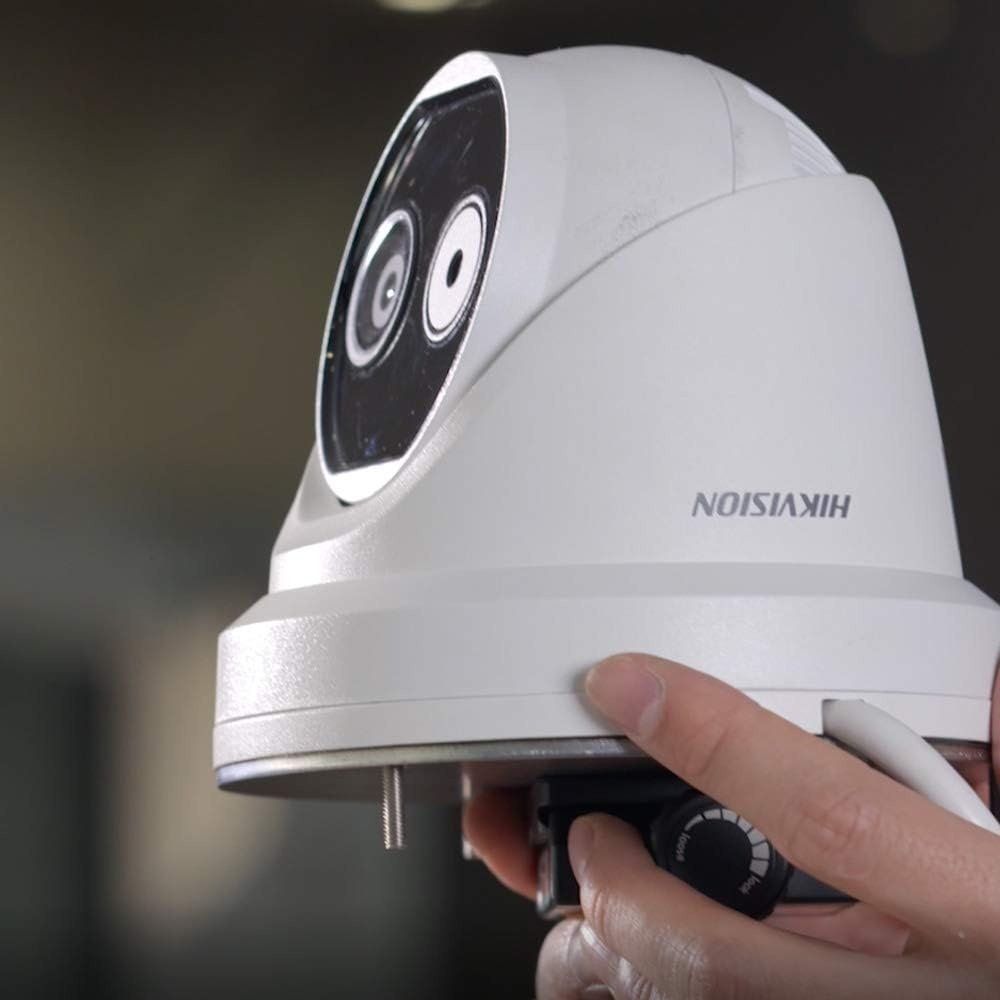

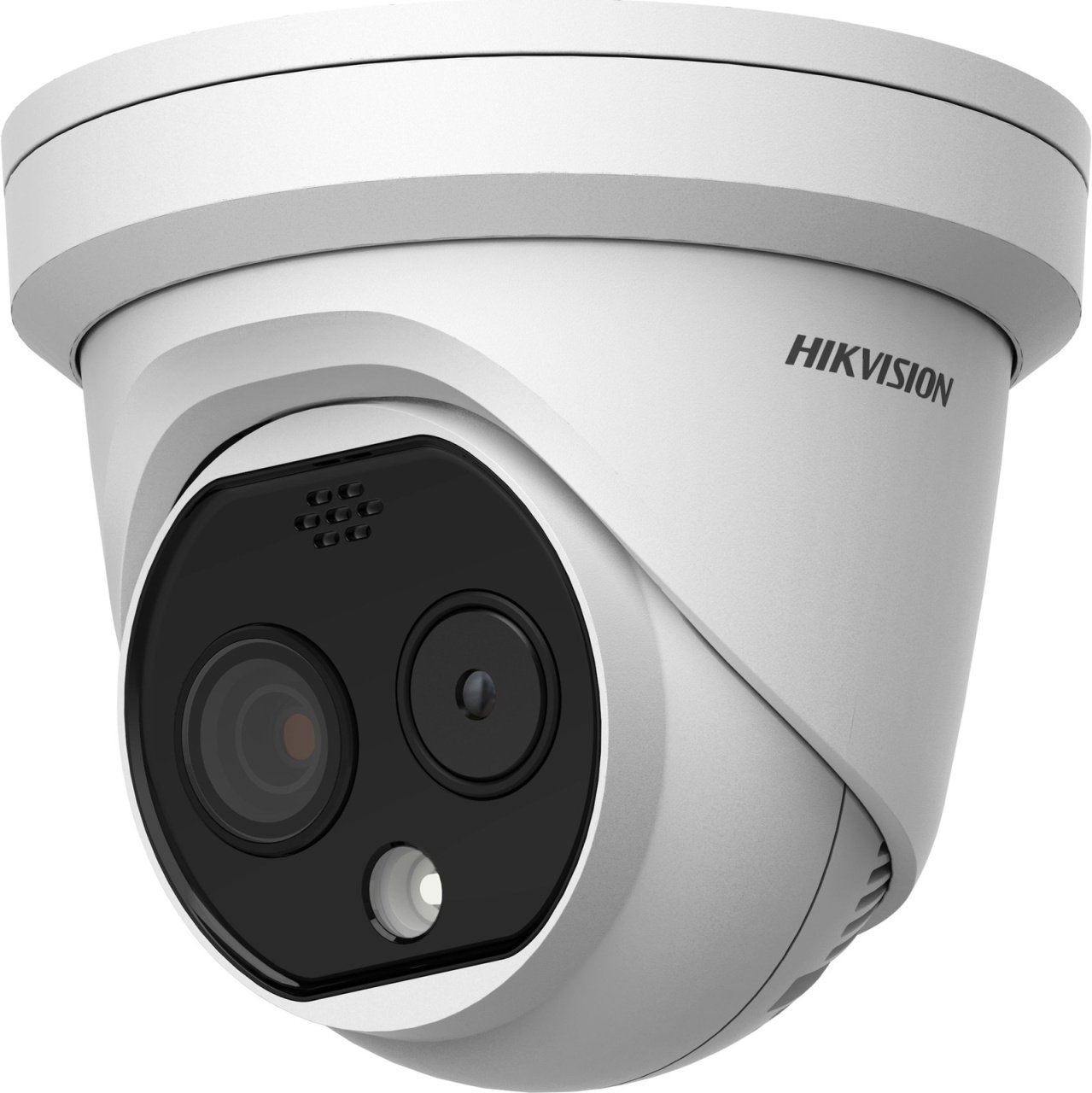

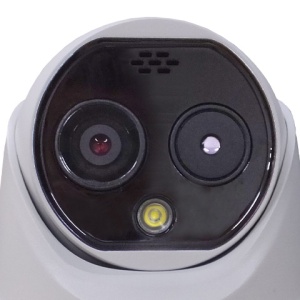

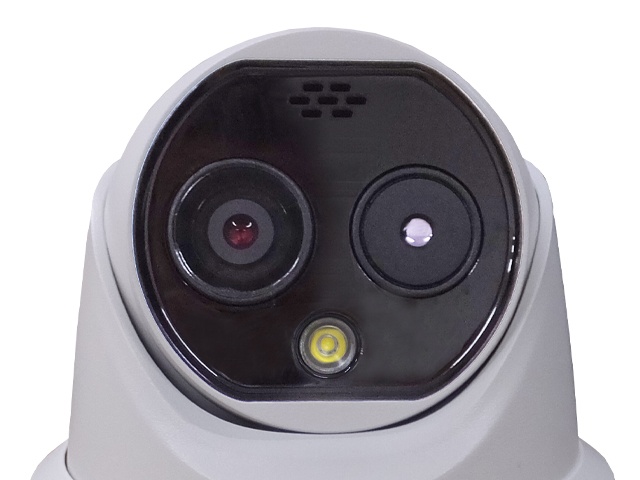

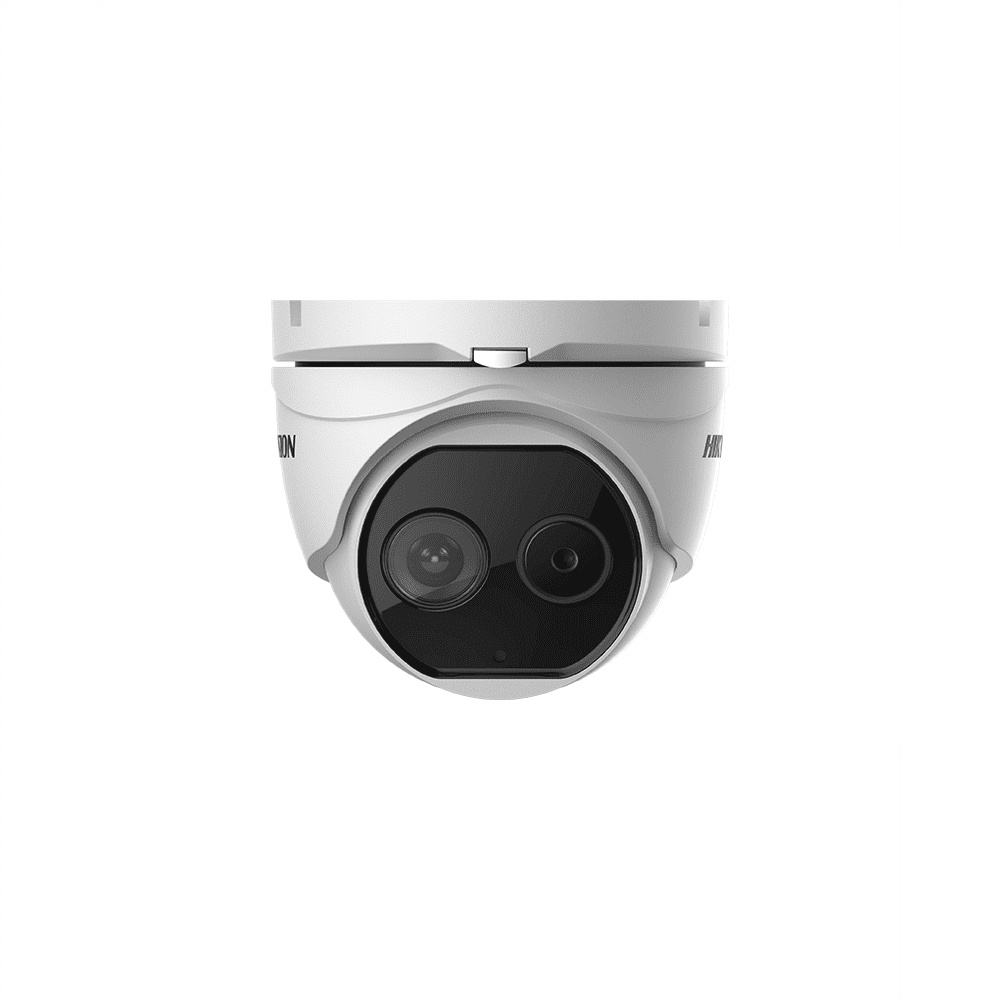

Camera termica HikVision IP cu functie de detectie temperatura corporala DS-2TD1217B-6/PA

Descriere

FUNCTIONALITATI TERMICE

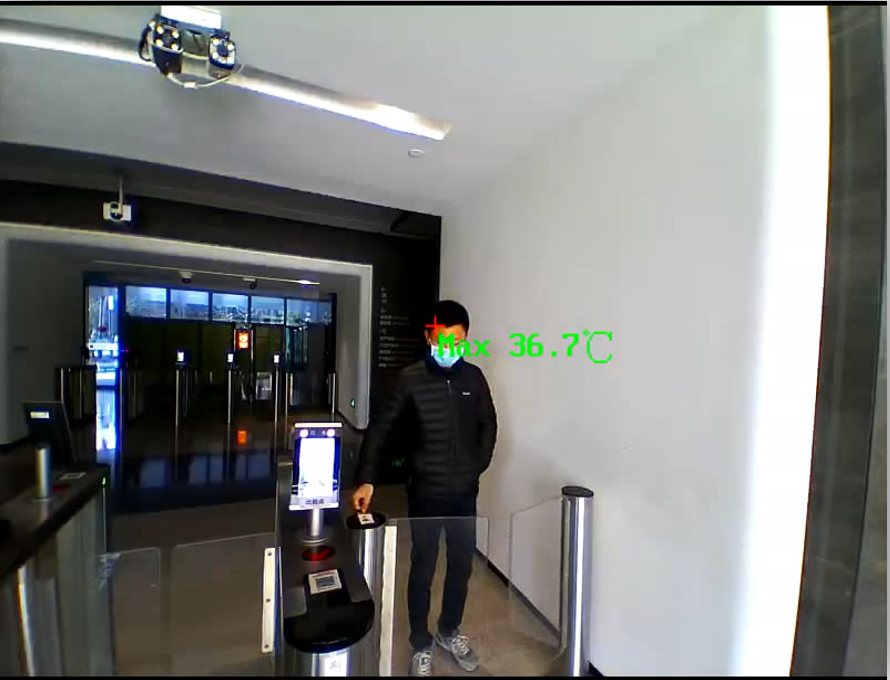

Bi-spectrum

Este functia care permite vizualizarea in acelasi timp a imaginii normale cat si a celei din spectrul termic pentru o usoara identificare a persoanelor vizate .

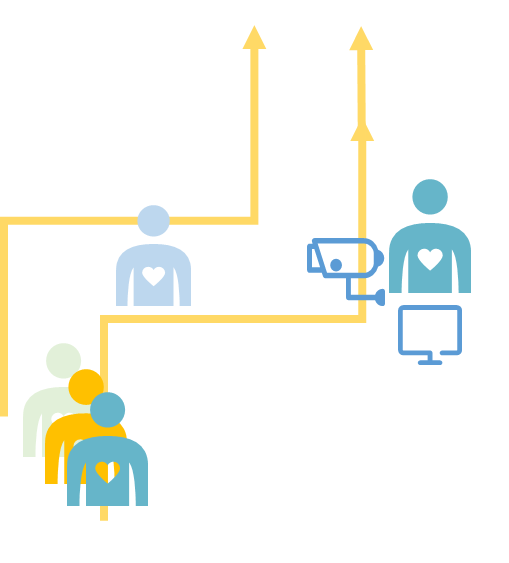

Procesul de depistare

Pentru procesul de depistare, se creeaza culuare de separarea in mai multe parti, unde se va folosi camera termica pentru ca detectia sa fie rapida si eficienta si in locurile aglomerate .

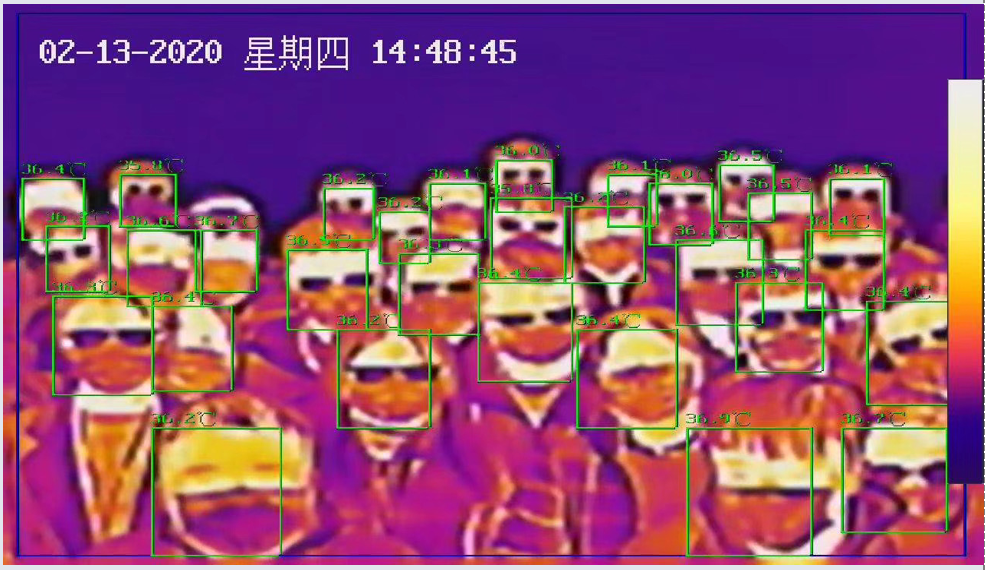

Numar maxim de persoane

Camerele termice cu detectie a temperaturii corporale pot scana cu eficienta ridicata pana la 30 de persoane simultan .

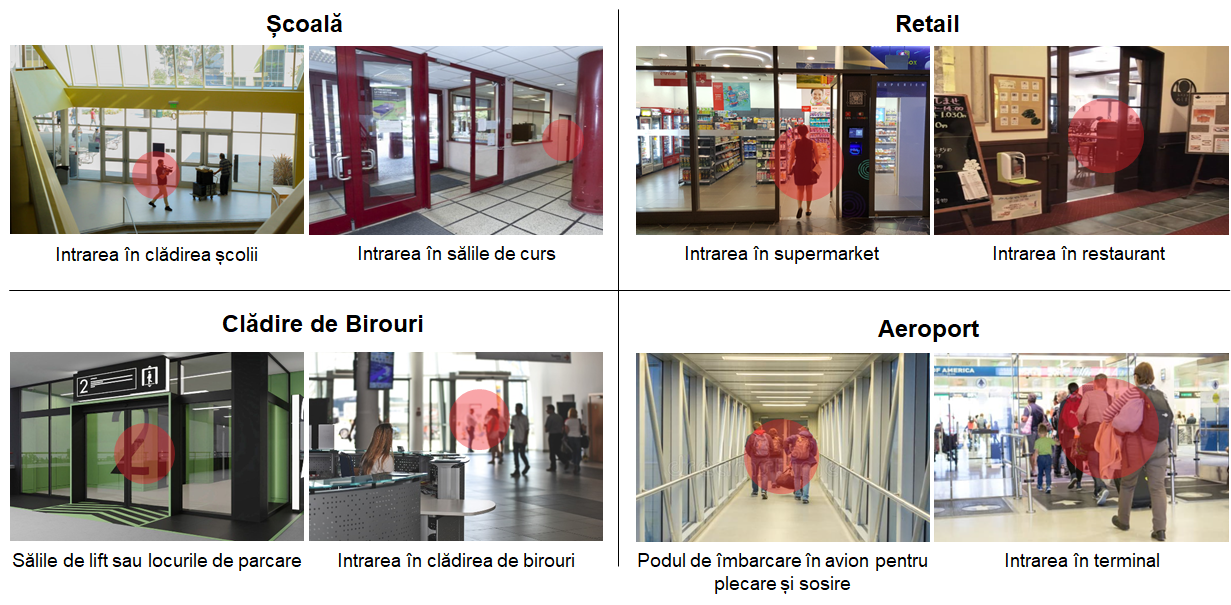

Zone de aplicare

Camerele se recomanda a fi utilizate la interior in apropierea intrarilor pentru ca in exterior pot exista fluctuatii din cauza temperaturii mediului.

Materiale video ale camerelor termice

Functionalitati IP

Tehnologia CMOS

Utilizata si in senzorii de imagine al camerelor de supraveghere, tehnologia CMOS ajuta la captarea imaginilor la o calitate superioara. Printre caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie.

Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

SD card

Scapa de grija instalatiilor complexe , de amalgamul de cabluri si echipamente grele si costisitoare, deoarece acum poti inregistra si stoca  imaginile pe propriul card SD pe care il conectezi direct la camera.

Microfonul incorporat ofera utilizatorului accesul la supravegherea audio a locatie si nu mai este necesara adaugarea unui dispozitiv aditional pentru captarea semnalului audio.

IP66

Nivelul de protectie asigurat de carcasa camerei impotriva accesului la componentele interne, a corpurilor solide sau a patrunderii apei. IP 66 indica un grad superior de protectie asupra factorilor externi

Thermal

• Image SensorVOx Uncooled Focal Plane Arrays
• Resolution160×120
• Pixel Interval17μm
• Response Waveband8μm to 14μm
• NETDLess than 40 mK (@25°C,F#=1.1)
• Focal Length6.2mm
• IFOV2.74 mrad
• ApertureF1.1
• Field of View25.0° × 18.7° (H × V)
• Min. Focusing Distance0.6 m

• Optical
• Image Sensor1/2.7" Progressive Scan CMOS
• Resolution2688×1520, 4MP
• Min. IlluminationColor: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON)
• Field of View39.42° × 22.14°(H × V)
• Focal Length8mm
• Shutter Speed1s to 1/100,000s
• White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
• Day & Night ModeIR cut filter with auto switch
• WDR120 dB

• Illuminator
• IR DistanceUp to 15 m
• IR Intensity and AngleAutomatically adjusted

• Feature
• Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
• Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel

• Smart Function
• Temperature RangeFrom 30°C to 45°C (86°F ~ 113°F)
• Temperature Accuracy± 0.5 °C

• Network
• Main StreamThermal: 25fps(1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240);Optical: 50Hz: 25fps (2688 × 1520), 25fps (1920 × 1080), 25fps (1280 × 720);Optical: 60Hz: 30fps (2688 × 1520), 30fps (1920 × 1080), 30fps (1280 × 720)
• Sub StreamThermal: 25fps(704 × 576, 352 × 288, 320 × 240);Optical: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144);Optical: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
• Video CompressionH.264 (Baseline/Main/High Profile) /MJPEG/H.265
• Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
• SecurityPassword protection, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP over HTTPS
• Simultaneous Live ViewUp to 20

• Interface
• ClientiVMS-4200, Hik-Connect
• Web BrowserPlug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51
• Alarm Input1-ch inputs (0-5 VDC)
• Alarm Output1-ch relay outputs, alarm response actions configurable
• Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
• Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
• Audio OutputLinear Level; Impedance: 600Ω
• Communication Interface1, RJ45 10M/100M Self-adaptive Ethernet interface. 1, RS-485 interface
• On-board StorageBuilt-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recording

• General
• Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
• PowerPoE (802.3af, class 3), 42.5 V to 57 V, 0.14 A to 0.22 A;DC 12V, 0.5A
• Power ConsumptionPoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 6.5 W 12 VDC ± 20%: 0.5 A, max. 6 W
• Work Temperature/HumidityFrom 10 °C to 35 °C (Indoor and windless environment use only); Humidity: 95% or Less
• Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
• Dimension138.3 mm × 138.3 mm × 123.1 mm (5.45 " × 5.45" × 4.85 ")
• Weight940 g (2.07 lb)
