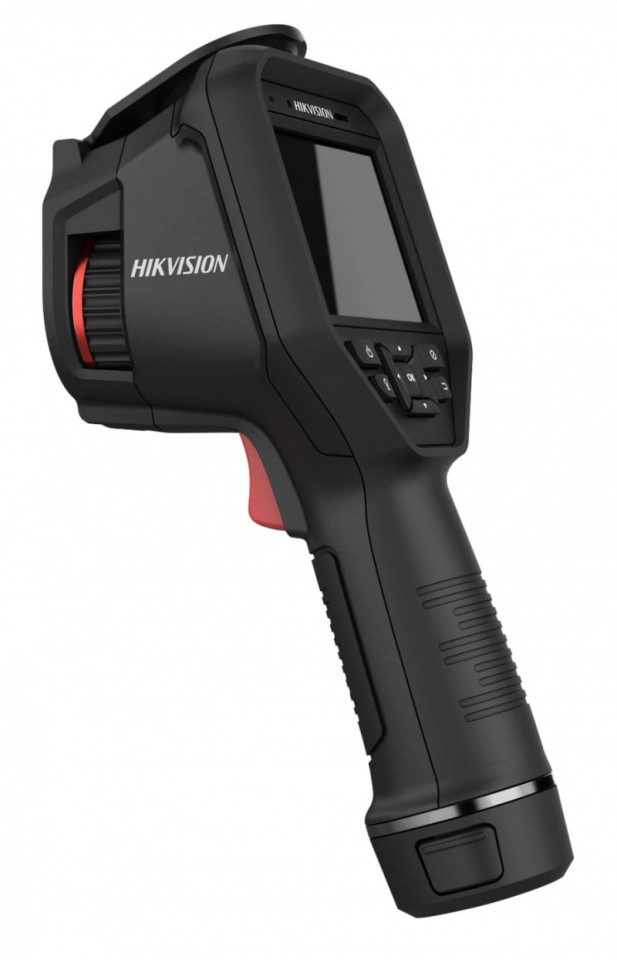

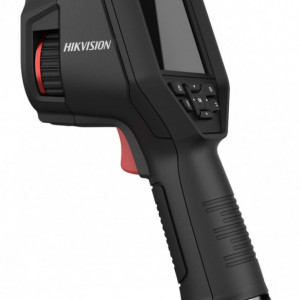

Camera termica HikVision cu Wi-Fi cu functie de detectie temperatura corporala DS-2TP21B-6AVF/W

Descriere

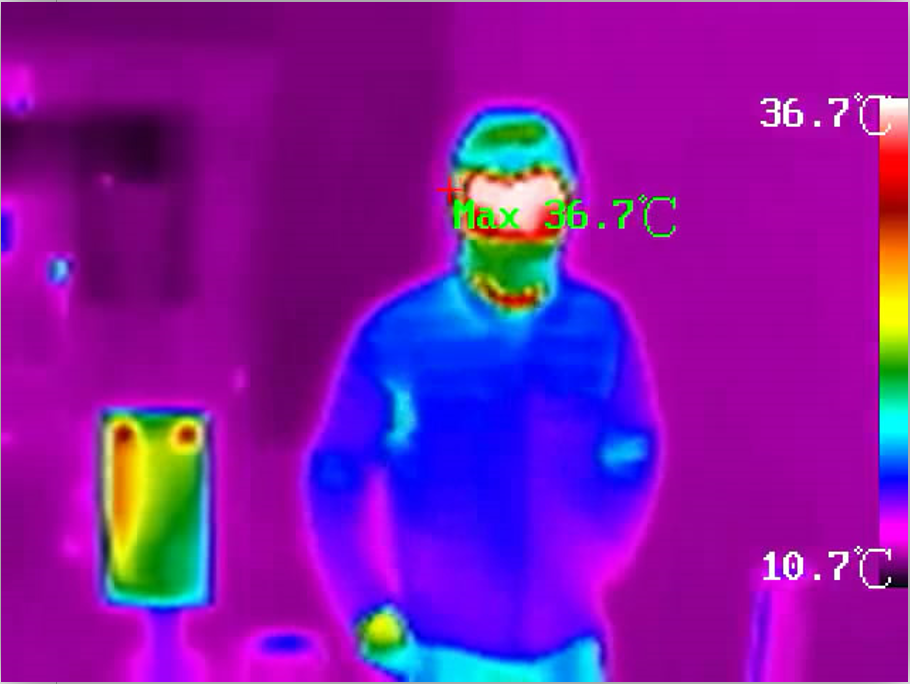

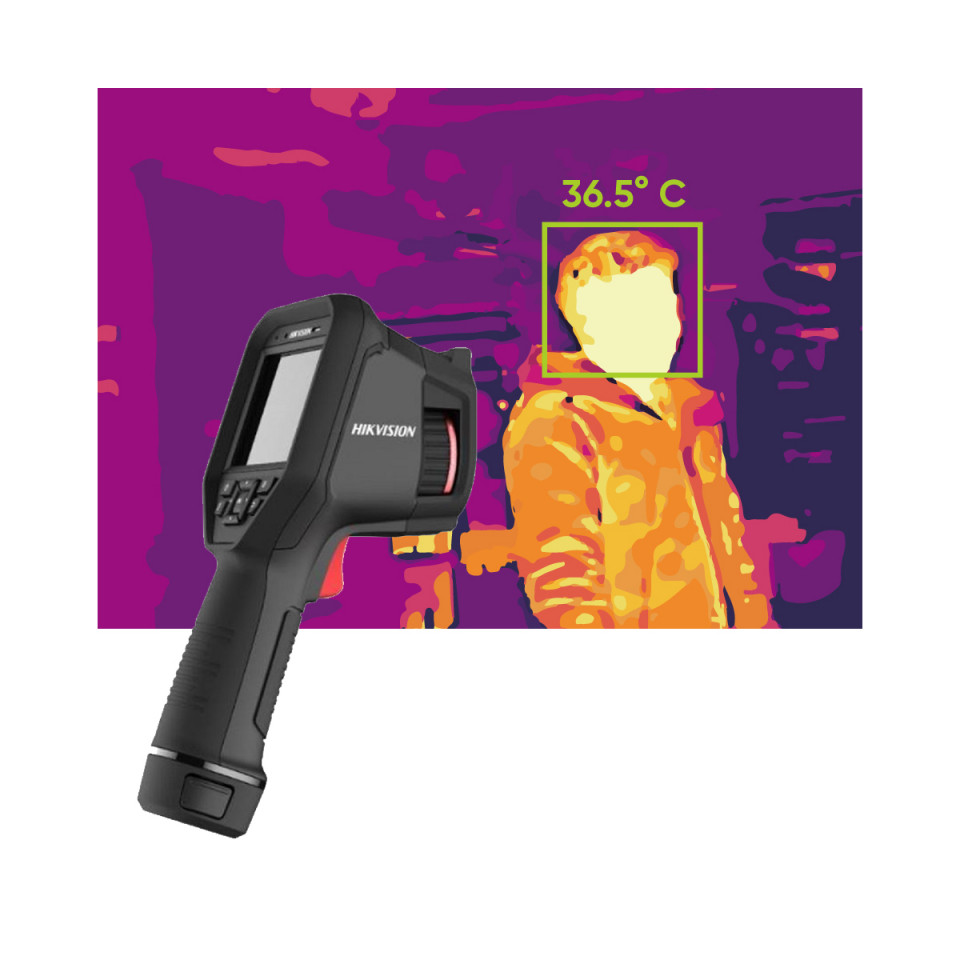

Bi-spectrum

Este functia care permite vizualizarea in acelasi timp a imaginii normale cat si a celei din spectrul termic pentru o usoara identificare a persoanelor vizate .

Zone de aplicare

Camerele se recomanda a fi utilizate la interior in apropierea intrarilor pentru ca in exterior pot exista fluctuatii din cauza temperaturii mediului.

Materiale video ale camerelor termice

https://www.youtube.com/watch?v=C8MF1cBXzQs&feature=youtu.be

https://www.youtube.com/watch?v=l2wroHzdxHQ&feature=youtu.be

Functionalitati IP

Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde

3D- DNR

DNR este o functie care reduce zgomotul de imagine , in scopul de a imbunatati calitatea imaginii aparatului.In special , se reduce zgomotul  care este generat in conditii de luminozitate slaba.

3D se refera la trei dimensiuni si incorporate in 3D DNR este un circuit  de reducere a zgomotului digital, capabil de a reducezgomotul de imagine si de a imbunatati esecul amestecat de culori si contactul de culori.

Automatic Gain Control - AGC

AGC - este o functie realizata de camera de supraveghere video, care are rolul de a mari/micsora calitatea imaginilor surprinse in conditii de iluminat scazut/ridicat.

Daca semnalul este prea slab, datorita scaderii iluminatului, atunci acest circuit amplifica semnalul din ce in ce mai mult. Daca semnalul este adecvat, circuitul responsabil cu functia AGC nu va aplica nici o amplificare. Iar daca lumina este prea puternica acest circuit va diminua semnalul video.

Wi-Fi

Wi-Fi sau WiFi este o tehnologie , care permite dispozitivelor electronice sa se conecteze la o retea fara a fi nevoie de fir.Reteaua folosind in general  2,4 gigahertzi UHF  si 5 gigahertzi SHF ISM benzi radio

• Thermal
• Image SensorVOx Uncooled Focal Plane Arrays
• Resolution160×120
• Pixel Interval17μm
• Response Waveband8μm to 14μm
• NETDLess than 40 mK (@25°C,F#=1.1)
• Focal Length6.2mm
• Focus ModeManual
• Field Of View25° × 18.7°
• IFOV2.74 mrad
• Image Frequency25 hz
• ApertureF 1.1

• Optical
• Picture ResolutionConfigurable: 2 MP, 5 MP, 8 MP
• Video Resolution640 × 480

• Thermography
• RulesMax. Temperature; Min. Temperature; Center Temperature; Custom Point/Line/Area Thermography
• Thermographic RangeFrom 30 °C to 45 °C
• Accuracy± 0.5 °C

• Image Display
• Monitor640 × 480 resolution 3.5-inch LCD touch display
• Image ModeThermal view, B/W optical view, image fusion view are selectable
• PalettesBlack hot, White hot, Red hot, Rainbow, Ironbow, Fusion, Rain
• Image FusionFusion view of thermal view and overlaid details of the optical channel
• Digital ZoomThermal：1×, 2×, 4×

• System Function
• Laser LightSupport (Point to the thermography target)
• CaptureThermal/Optical/Fusion image
• VideoThermal/Optical/Fusion image
• Text CommentYes
• Voice CommentYes
• Wi-FiYes
• StorageBuilt-in memory module (16 G)
• ClientiVMS-4800 (PC);Hik-Thermal (Mobile APP)
• Battery TypeDismountable and rechargeable Li-ion Battery
• Battery Operating Time5 hours in normal temperature, with Wi-Fi, Bluetooth, and supplement light off. 4 hours in normal temperature, with Wi-Fi, Bluetooth, and supplement light on.

• General
• Hardware InterfaceType-C USB
• Power Supply5 VDC/2 A
• Power ConsumptionMax. 4.5 W
• Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
• Protection LevelIP54
• Drop Test Height2 m (6.56 feet)
• WeightWith Battery: 653 g (1.44 lb) Without Battery: 511 g (1.13 lb)
• Dimension244 mm × 100 mm × 104 mm (9.6 ″ × 3.9 ″ × 4.1 ″)
