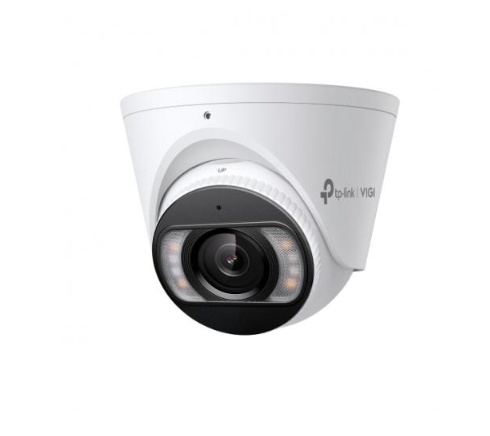

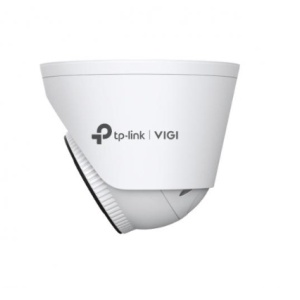

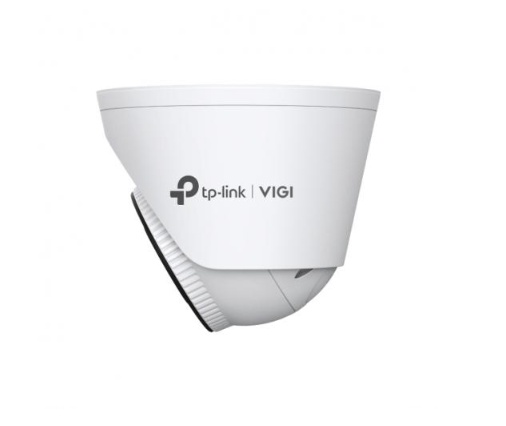

Camera supraveghere turret 4MP, Network, TP-Link VIGI C445(2.8MM)

Descriere

Specifications
Camera
Product Model VIGI C445(2.8mm/4mm)
Image Sensor 1/2.7“ Progressive Scan CMOS
Min. Illumination 0.005 Lux; 0 Lux with IR/White Light
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Day & Night Mechanism IR Cut Filter
Day/Night Switch Unified/Scheduled/Auto
Lens
Type Fixed Focal Lens
Focal Length
4 mm
2. 8mm
Aperture F1.6
FOV
• 2.8 mm:
Horizontal FOV: 100°, Vertical FOV: 54°, Diagonal FOV: 118°
• 4 mm:
Horizontal FOV: 80.4°, Vertical FOV: 41.8°, Diagonal FOV: 98.7°
Lens Mount M12*P 0.5
DORI Distance
• 2.8 mm
Detect: 64 m (210 ft)
Observe: 27 m (89 ft)
Recognize: 13 m (43 ft)
Identify: 6 m (20 ft)
• 4 mm
Detect: 80 m (262 ft)
Observe: 33 m (108 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
Illuminator
IR LED
Quantity: 4
Range: 30m
Wavelength: 850nm
White LED Quantity: 4
Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
Video
Max. Resolution 2688x1520
Main Stream
• Frame Rate
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080,
1280x720
Note:
• If the image rotation is set to 90° or 270°, the frame rate only
supports up to 20fps.
Sub-Stream
Frame Rate
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
704x576,640x480, 352x288, 320x240
Note:
• If the image rotation is set to 90° or 270°, the frame rate only
supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression Main stream: H.265/H.265+/H.264/H.264+
Sub-stream: H.265/H.264
Video Bit Rate • Main Stream: 256 Kbps to 6 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps
Image Settings
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure,
WDR, White Balance, Prevent Overexposure to Infrared Light, HLC
Adjustable by Client Software
Day/Night Switch Unified, Scheduled, Auto
Image Enhancement BLC, HLC, 3D DNR
Wide Dynamic Range (WDR)
120dB
Note: When People & Vehicle Analytics is enabled, only DWDR is
supported.
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
Audio
Audio Communication Two-way audio
Audio Input Yes
Audio Output Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
Network
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP,
SSL/TLS
API Open Network Video Interface (Profile S)
Web Browser
Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest
Authentication
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, VIGI NVR, Web,VMS
Cloud Yes
ONVIF Yes
Interface
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Speaker Yes
Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera
Audio N/A
Alarm N/A
Reset Button Yes
Power DC Power Port
Alarm and Event Management
Smart Event
• Human & Vehicle Classification
• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Loitering Detection
• Smart Frame
• People Detection
• Vehicle Detection
Basic Event
• Motion Detection
• Video Tampering Detection
• Exception ( Illegal Login)
• Scene Change Detection
Alarm Linkage
• Memory Card Video Recording
• Message Push
• Audible Warning
• White Light Flashing
Linkage Method N/A
Output Notification Message Push
Deep Learning Function
People & Vehicle Analytics Search and filter to people or vehicle of interest based on many
different attributes, making post-event search faster and easier.
General
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-condensing)
Storage Humidity 95% or Less (Non-condensing)
Power Supply • 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug
• PoE: 802.3af/at, class 0, Max. 12 W
Material Metal
Protection IP67
Product Dimensions (L x W x H) 111*111*83.7mm
Package Contents
VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Net Weight 0.48 Kg
Certifications CE, NTRA, VCCI, KC, BSMI, FCC, IC
