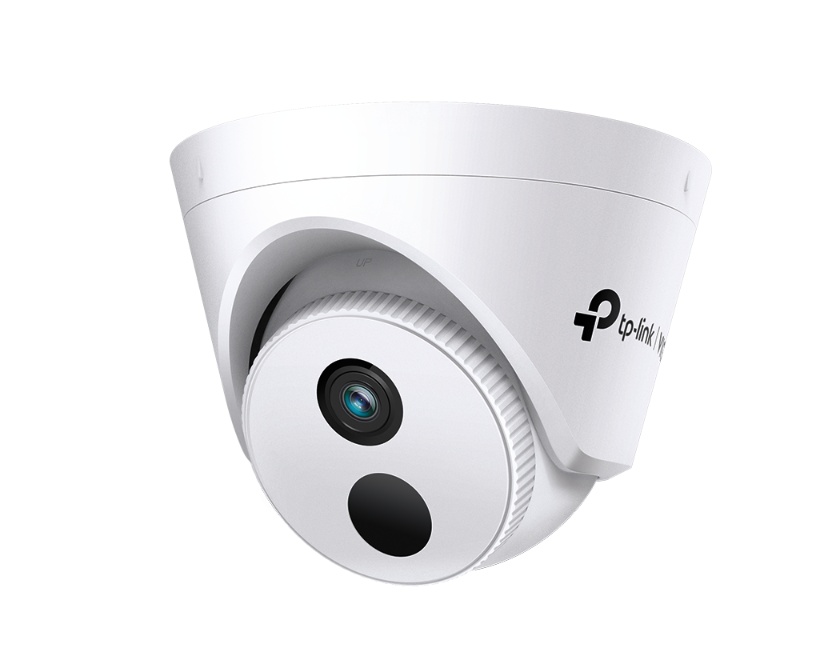

Camera supraveghere turret 4MP, Network, TP-Link VIGI C440I(2.8MM)

Descriere

Security Never Shuts Down
Datasheet
IR Turret
Network Camera
MODEL: VIGI C420I (2.8/4mm), VIGI C430I (2.8/4mm),
VIGI C440I (2.8/4mm)

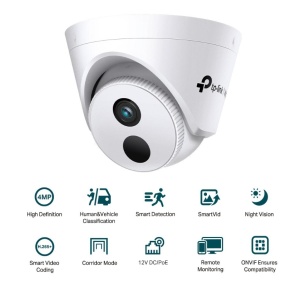

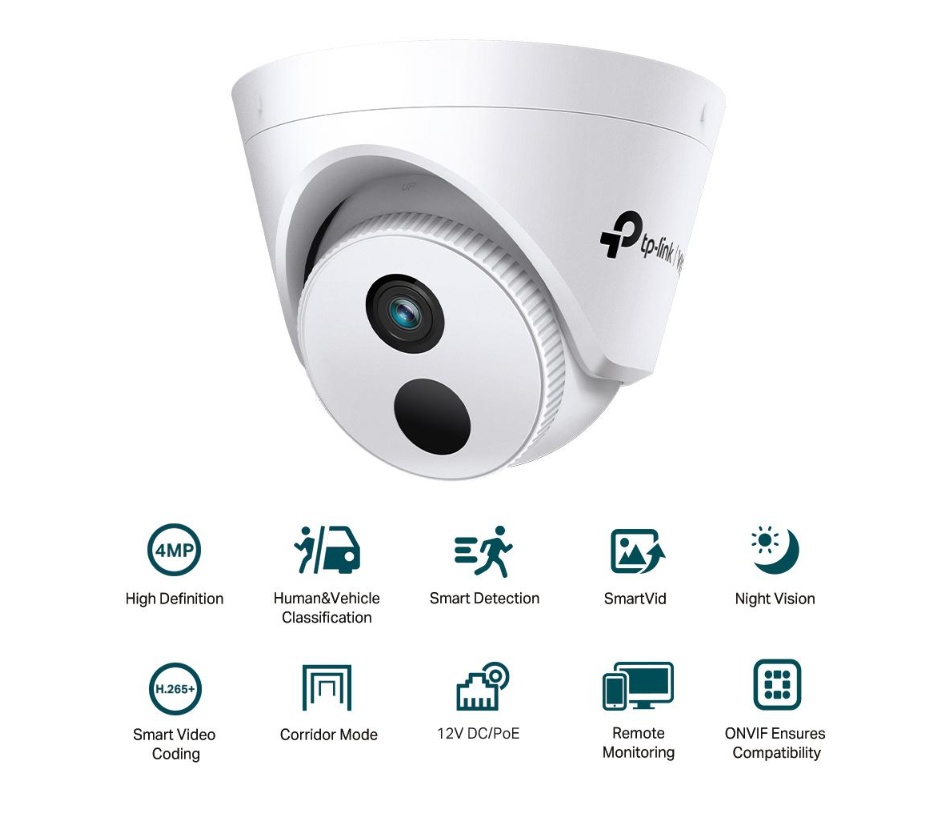

Human & Vehicle Smart Detection
Classification
SmartVid Remote Monitoring

Intelligently distinguishes humans and vehicles from other objects, so you
receive more accurate event notifications.
Human & Vehicle Classification
Smart Detection
Region Exiting
Detection
Intrusion
Detection
Camera
Tampering
Region Entering
Detection
Line-Crossing
Detection
Motion
Detection
Object Abandoned
Detection
Object Removal
Detection
Smart IR
Keeps objects from being under-rendered when far
away or overexposed when close to camera at night.
Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing
effects and renders images true to life.
3D DNR
Removes abnormal pixelation to provide clearer
video and eliminate distortion.
SmartVid
Monitor VIGI NVR TP-Link Switch
VIGI
Camera

The VIGI professional surveillance system by TP-Link is dedicated to protecting
the business that you've worked hard to build—whenever, wherever.
Outstanding functions, reliable quality guarantees, and simplified installation
work together to ensure your business stays safe and sound.
VIGI Surveillance Solution

Easily route your camera’s cable into a dropped ceiling or avoid drilling by slotting it through the camera’s side outlet.
Flexible Installation
Specifications
Camera
Product Model VIGI C420I VIGI C430I VIGI C440I
Image Sensor 1/3” Progressive Scan
CMOS
1/2.8” Progressive Scan
CMOS
1/3” Progressive Scan
CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Min. Illumination Color: 0.01 Lux; 0 Lux with IR Light
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
Day/Night Switch Unified/ Scheduled/ Auto
Lens
Focal length 2.8 mm/4 mm 2.8 mm/4 mm 2.8 mm/4 mm
Aperture
2.8mm: F2. 2
4mm: F2.0
2.8mm: F2. 2
4mm: F2.0
2.8mm: F2. 2
4mm: F2.0
Type Fixed
FOV
• 2.8mm:
Horizontal FOV: 88.2°,
Vertical FOV: 48.7°,
Diagonal FOV: 106.5°
• 4mm:
Horizontal FOV: 75.2°,
Vertical FOV: 40.8°,
Diagonal FOV: 88.3°
• 2.8mm:
Horizontal FOV: 97.8°,
Vertical FOV: 52.9°,
Diagonal FOV: 117.9°
• 4mm:
Horizontal FOV: 82.8°,
Vertical FOV: 44.5°,
Diagonal FOV: 98.1°
• 2.8mm:
Horizontal FOV: 88.8°,
Vertical FOV: 48.9°,
Diagonal FOV: 106.5°
• 4mm:
Horizontal FOV: 75.2°,
Vertical FOV: 40.8°,
Diagonal FOV: 88.3°
Lens Mount M12 M12 M12
DORI Distance
• 2.8 mm
Detect: 45 m (149 ft)
Observe:19 m (62 ft)
Recognize: 9 m (30 ft)
Identify: 5 m (15 ft)
• 4 mm
Detect: 60 m (198 ft)
Observe: 25 m (83 ft)
Recognize: 12 m (40 ft)
Identify: 6 m (20 ft)
• 2.8 mm
Detect: 49 m (161 ft)
Observe: 20 m (67 ft)
Recognize: 10 m (32 ft)
Identify: 5 m (16 ft)
• 4 mm
Detect: 65 m (214 ft)
Observe: 27 m (89 ft)
Recognize: 13 m (43 ft)
Identify: 7 m (21 ft)
• 2.8 mm
Detect:60 m (197 ft)
Observe: 25 m (82 ft)
Recognize: 12 m (39 ft)
Identify: 6 m (20 ft)
• 4 mm
Detect: 80 m (262 ft)
Observe:33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
Angle Adjustment (manual)
Range
• Pan: 0° to 360°
• Tilt: 0° to 85°
• Rotate: 0° to 360°
Illuminator
IR LED
• Quantity: 1
• Range: 30m
• Wavelength: 850nm
White LED N/A
Illuminator On/Off
Control Auto/Scheduled/Always on/Always off
Video
Max. Resolution 2MP (1920 × 1080) 3MP (2304 × 1296) 4MP (2560 × 1440)
Main Stream
• Frame Rate
50Hz: 1fps, 5fps, 10fps,
15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps,
15fps, 20fps, 25fps, 30fps
• Resolution:
1920x1080, 1280x960,
1280x720
Note: If the image rotation
is set to 90° or 270°, the
frame rate only supports
up to 20fps.
• Frame Rate: 1fps, 5fps,
10fps, 15fps, 20fps, 25fps
• Resolution: 2304x1296,
2048x1280, 1920x1080,
1280x720
Note: If the image rotation
is set to 90° or 270°, the
frame rate only supports
up to 20fps.
• Frame Rate:
50Hz: 1fps, 5fps, 10fps,
15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps,
15fps, 20fps, 25fps, 30fps
• Resolution:
2560x1440, 2304x1296,
2048x1280, 1920x1080,
1280x720
Note: If the image rotation
is set to 90° or 270°, the
frame rate only supports
up to 20fps.
Sub-Stream
• Frame Rate
50Hz: 1fps, 5fps, 10fps,
15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps,
15fps, 20fps, 25fps, 30fps
• Resolution:
704x576, 640x480,
352x288, 320x240
Note: If the image rotation
is set to 90° or 270°, the
frame rate only supports
up to 20fps.
• Frame Rate: 1fps, 5fps,
10fps, 15fps, 20fps, 25fps
• Resolution: 704x576,
640x480, 352x288,
320x240
Note: If the image rotation
is set to 90° or 270°, the
frame rate only supports
up to 20fps.
• Frame Rate:
50Hz: 1fps, 5fps, 10fps,
15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps,
15fps, 20fps, 25fps, 30fps
• Resolution:
640x480, 352x288,
320x240
Note: If the image rotation
is set to 90° or 270°, the
frame rate only supports
up to 20fps.
Bit Rate Control CBR, VBR
Video Compression
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
H.264 Type High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate • Main Stream: 256 Kbps to 4 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps
Image Settings
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
• Rotation(90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range WDR
SNR ≥ 52 dB
Image Parameters
Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
Audio
Audio Communication N/A
Audio Input Yes
Audio Output N/A
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise
Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
Network
Protocols
• TCP/IP
• UDP
• ICMP
• HTTP
• HTTPS
• DHCP, DNS, RTSP
• NTP
• UPnP UDP
• SSL/TLS
• FTP/SFTP
• RTP
• RTSP
• IPv4
• IPv6 (VIGI C420I does not support IPv6)
• ARP
ONVIF Yes
API Open Network Video Interface (Profile S)
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, Web UI
Web Browser
• Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Alarm and Event Management
Smart Event
• Human & Vehicle Classification
• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Abnormal Sound Detection
• People Detection
• Vehicle Detection
Basic Event
• Motion Detection
• Video Tampering Detection
• Exception ( Illegal Login)
Alarm Linkage Message Push
Linkage Method N/A
Output Notification Message Push
Interface
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm N/A
Reset Button N/A
Power DC Power Port (VIGI C420I does not have DC power port.)
On-board Storage N/A
Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker N/A
Audio N/A
General
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Package Contents
• VIGI Network Camera
• Quick Start Guide
• Mounting Accessories
Power Supply PoE: 802.3af/at, class 0,
Max. 5.5 W
• 12V DC ± 5%, Max. 5 W,
5.5mm Coaxial Power Plug
• PoE: 802.3af/at, class 0,
Max. 5.5 W
• 12V DC ± 5%, Max. 5 W,
5.5mm Coaxial Power Plug
• PoE: 802.3af/at, class 0,
Max. 5.5 W
Net Weight 0.19 Kg
Gross Weight 0.34 Kg
Material Plastic
Protection N/A
Product Dimensions 123 × 123 × 83 mm (4.84 × 4.84 × 3.27 in)
Certification CE, NTRA, VCCI, BSMI
Build Features
*Calculations based on laboratory testing using a 3MP VIGI camera, and an actual performance may
vary according to the amount of activity recorded, resolution and other variables.
Specifications are subject to change without notice and can be found at www.tp-link.com.
