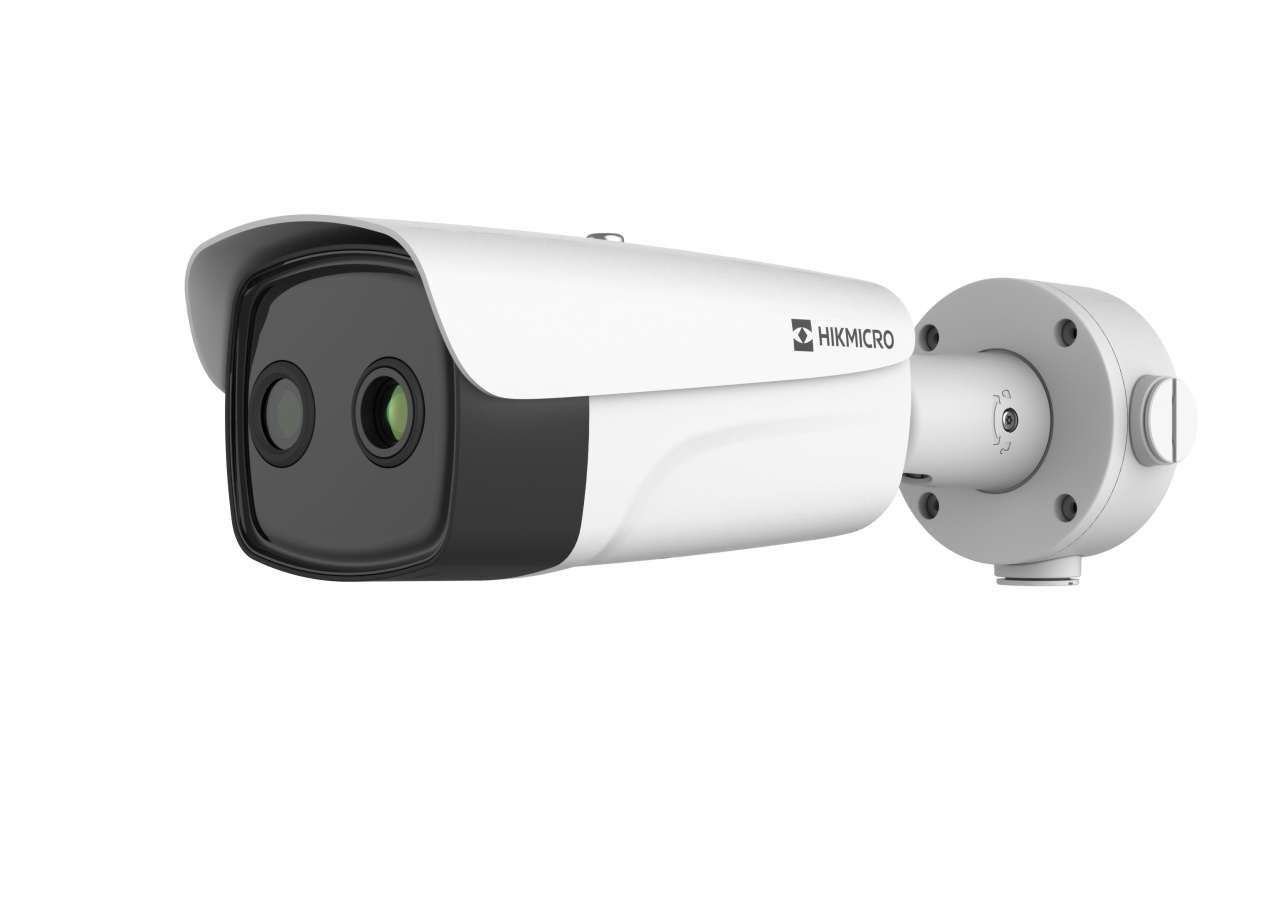

Camera supraveghere termica si optica Bi-spectrum IP HikVision bullet HM-TD2638-25/G0-T1Y, rezolutie 384x288, VCA 3.0 detectie oameni si vehicule, alarma temperatura pentru prevenirea incendiilor, algoritm detectie foc, criptare TPM 2.0, AGC termic
Descriere
- Thermal Module
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Resolution384 x 288
- Pixel Pitch12 μm
- NETD≤ 20 mK (@25° C,F# = 1.0)
- Focal Length25 mm
- IFOV0.48 mrad
- ApertureF1.0
- Field of View10.5° × 7.9° (H × V)
- Min. Focusing Distance23 m
- Digital Zoom×2, ×4，×8
- Optical Module
- Image Sensor1/2.7" Progressive Scan CMOS
- Resolution2688 × 1520
- Min. Illumination0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
- Field of View24.6° × 14° (H × V)
- Focal Length12.4 mm
- Shutter Speed1 s to 1/100,000 s
- White BalanceMWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
- Day & Night ModeIR Cut Filter with Auto Switch
- WDR120 dB
- Image Effect
- Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
- Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
- Target ColorationYes. Supported in white hot and black hot mode.
- EISThermal channle supports EIS, exclusive with all smart functions
- Illuminator
- IR DistanceUp to 100 m
- IR Intensity and AngleAutomatically adjusted
- Smart Function
- VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
- Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
- Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
- Temperature Accuracy± 8 °C (±14.4 °F)
- Fire DetectionDynamic fire detection, up to 10 fire points detectable
- Video and Audio
- Main Stream
Optical channel
50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Thermal channel
25 fps (1280×720P， 704×576， 352×288， 384×288)
- Sub-stream
Optical channel
50 HZ: 25 fps (704 × 576, 352 × 288)
60 HZ: 30 fps (704 × 480, 352 × 240)
Thermal channel
25 fps (704 × 576, 352 × 288, 384 × 288)
- Video Compression
Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
- Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
- Video and Image
- Color Palettes17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer)
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,TLS
- Network StorageMicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- APIISAPI,ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T, Profile M), OTAP
- Simultaneous Live ViewUp to 20 channels
- User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
- SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
- ClientiVMS-4200, Hik-Connect
- Interface
- Alarm Input2, alarm input (0-5 VDC)
- Alarm Output2-ch, relay outputs (alarm response actions configurable))
- Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
- Audio Input
1, 3.5 mm Mic in/Line in interface
Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
- Audio OutputLinear level, impedance: 600 Ω
- Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
1, RS-485 interface (half duplex)
- Analog Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
- General
- Menu Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power Supply
24 VAC ± 25%, 12 VDC ± 25%,24VDC two-core terminal block
PoE (802.3af, class 3)
- Power Consumption
24 VAC ± 25%: 0.33 A to 0.55 A, max. 12.1W
12 VDC ± 25%: 0.8 A to 1.33 A, max. 11.3W
PoE (802.3af, class 3): 36 V to 57 V, 0.33 A to 0.21 A, max. 11.8W
- Working Temperature/Humidity
Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity: 95% or less
- Protection Level
IP67 Standard
TVS 4000V lightning protection, surge protection, voltage transient protection
IK10-rated housing
NEMA 4X anti-corrosion housing
- Dimensions376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")
- 1.82 kg (4.01 lb)
- Detection Range Table/Smart Function Range
- VCA Range for Humans325 m
- VCA Range for Vehicles750 m
- Approval
- EMC
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7)
KC (KSC9832: 2019; KSC9835: 2019)
- Safety
CB: IEC 62368-1: 2014+A11;
CE-LVD: EN 62368-1: 2014/A11: 2017;
BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005
LOA: SANS/IEC 60950-1
- Environment
CE-RoHS：2011/65/EU,
WEEE: 2012/19/EU,
Reach：Regulation(EC) No 1907/2006
- Protection
IP67: IEC 60529-2013
IK10: IEC 62262-2002
- Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)
