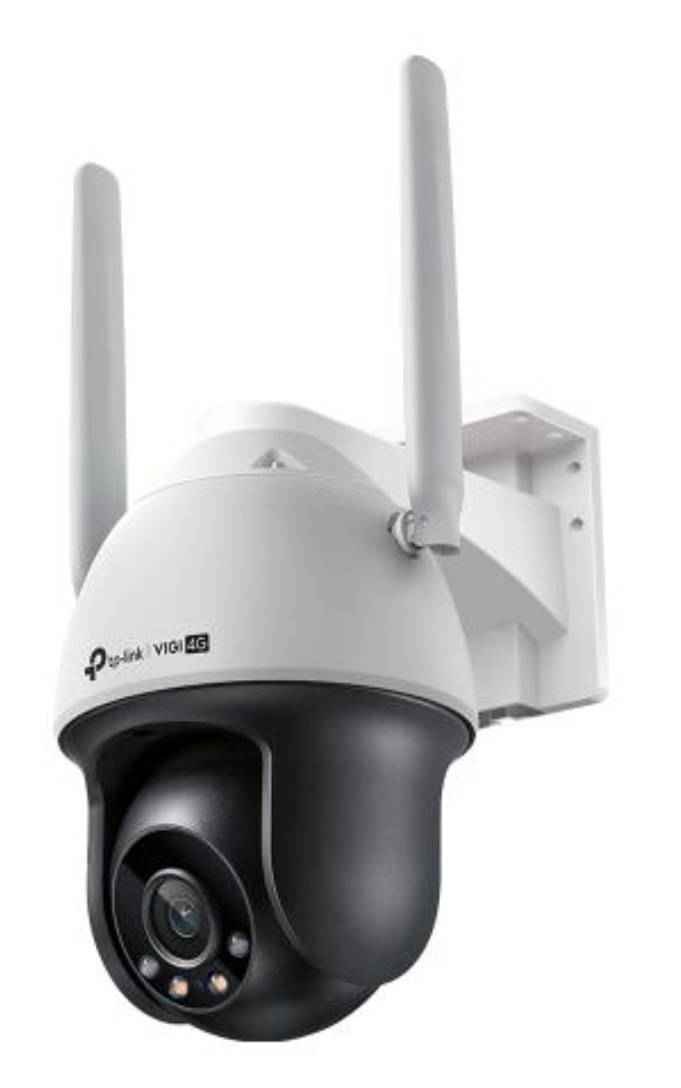

Camera supraveghere ptz 4MP, Network, VIGI VIGI C540-W(4MM)

Descriere

Specifications
Camera
Product Model VIGI C540-4G (4mm)
Image Sensor 1/3.06” Progressive Scan CMOS
Min. Illumination Color:0.005 Lux; 0 Lux with IR/white light
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Day & Night IR Cut Filter
Day/Night Switch Unified/ Scheduled/ Auto
Lens
Focal Length 4 mm
Aperture F1.6
Focus Fixed
FOV Horizontal FOV: 80°, Vertical FOV: 43°, Diagonal
FOV: 94°
Lens Mount M12X0.5
Angle Adjustment (Manual)
Range Pan: 0° to 348°, Tilt: 0° to 120°
PTZ
Pan/Tilt Range Pan: 0° to 348°, Tilt: 0° to 120°
Pan Speed Configurable from 8° to 44°/s; Preset Speed: 44°/s
Tilt Speed Configurable from 8° to 44°/s; Preset Speed: 44°/s
Manual Control Speed Configurable from 8° to 35°/s
Presets 300
Patrol Scan 8 patrols, up to 8 presets for each patrol
Power-off Memory Yes. Auto restore to previous PTZ and lens status
after power failure
Park Action Yes. Preset; Patrol Scan
3D Positioning Yes
Illuminator
IR LED
Quantity: 2
Range: 30m;
Wavelength: 850nm
White LED Quantity: 2
Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
Video
Max. Resolution 2560 X 1440
Main Stream
• Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080,
1280x720
Note: If the image rotation is set to 90° or 270°, the
frame rate only supports up to 20fps..
Sub-Stream
• Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the
frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 3 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image Enhancement BLC/3D DNR/HLC/SmartIR
Image Settings
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure, WDR,
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
• Rotation (90°/270°)
Wide Dynamic Range DWDR
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
Audio
Audio Communication Two-Way Audio
Audio Input Yes
Audio Output Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise
Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
4G
Standard LTE-TDD/LTE-FDD/WCDMA
SIM Type Nano SIM
Category 4
Frequency
LTE-FDD: B 1/3/5/7/8/20/28
LTE-TDD: B 38/40/41
WCDMA: B 1/5/8
Network
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP,
IPv4, ARP
API Open Network Video Interface (Profile S)
Web Browser
Google Chrome® 57 and above Firefox® 52 and
above
Safari® 11 and above Microsoft® Edge 91 and
above
Security Password Protection, HTTPS Encryption, IP
Address Filter, Digest Authentication
Simultaneous Live View 2 Main Streams & 2 Sub-Streams
Client VIGI App, VIGI Security Manager, VIGI NVR (for local
management only), Web
Cloud Yes
ONVIF Yes
Interface
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
On-board Storage Built-In Memory Card Slot, Support MicroSD Card,
Up to 512 GB
Built-in Nano-SIM Card
Slot Yes
Built-in Speaker Yes
Built-in Microphone Yes; Records Anything Going on within a 15-ft
Radius of the Camera
Audio N/A
Alarm N/A
Reset Button Yes
Alarm and Event Management
Smart Event
• Human & Vehicle Classification
• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Abnormal Sound Detection
• People Detection
• Vehicle Detection
Basic Event
• Motion Detection
• Video Tampering Detection
• Exception (Illegal Login)
Alarm Linkage
• Memory Card Video Recording
• Message Push
• Audible Warning
• White Light Flashing
Linkage Method N/A
Output Notification Message Push
General
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Power Supply 12V DC/1A, 5.5mm Coaxial Power Plug
Material Plastic
Protection IP66
Antenna
• Quantity: 2
• Type:
690~960&1710~2690MHz Dipole OmniDirectional Antenna
• Gain:
Ant1: 0.84dBi@690~960MHz,
2.85dBi@1710~2690MHz
Ant2: 0.74dBi@690~960MHz,
3.06dBi@1710~2690MHz
Product Dimensions (L x W
x H) 120 × 182 × 201 mm (excluding antennas)
Package Contents
• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
• Power Adapter
Net Weight 0.69KG
Gross Weight 1.16KG
Certifications CE, RCM, BSMI, RoHS, NCC
