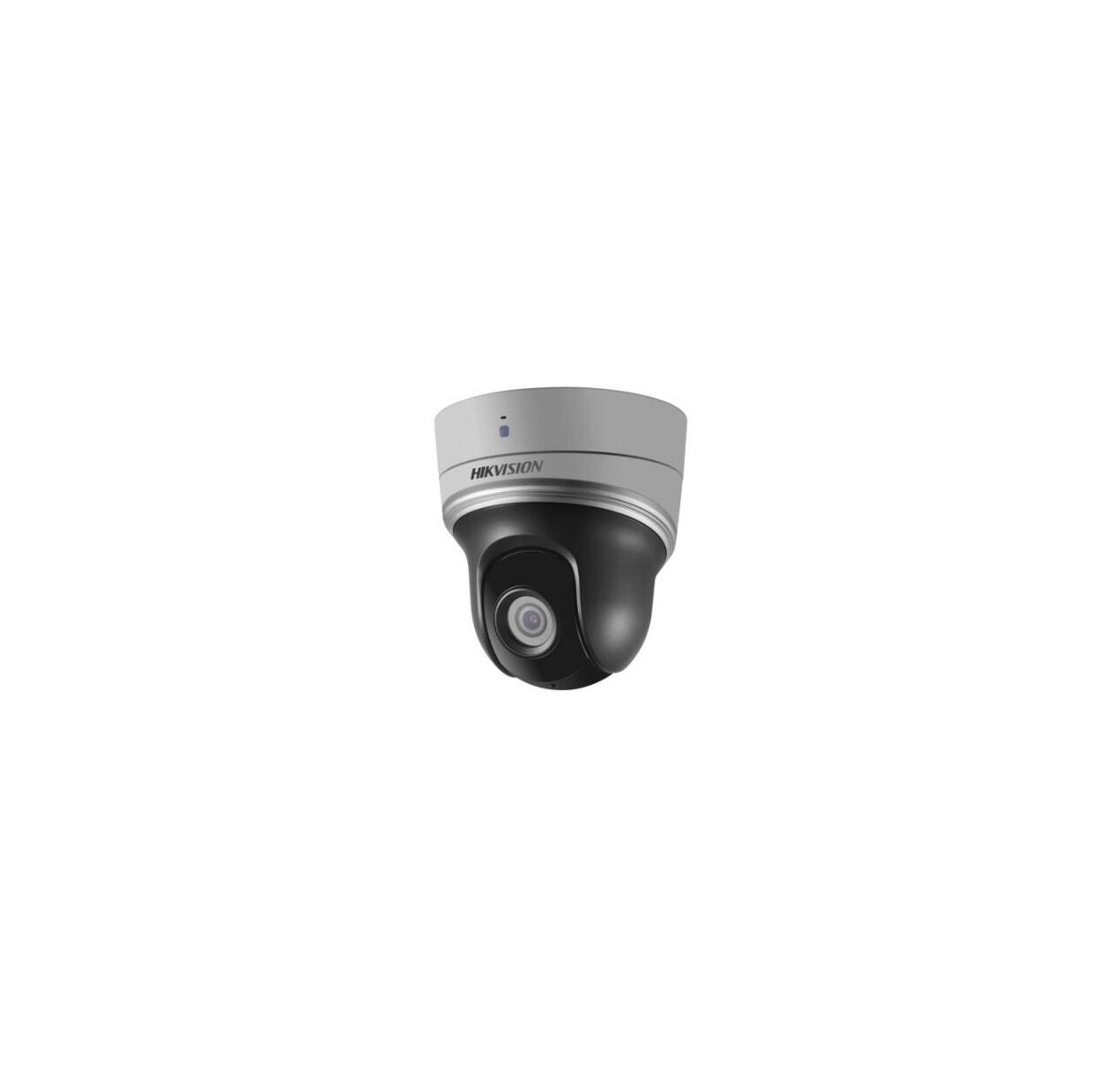

Camera supraveghere IP Wi‑Fi Hikvision PTZ 2MP DS‑2DE2204IW‑DE3/W(2.8‑12mm) cu zoom optic 4×, WDR 120 dB, IR pana la 30 m, microfon si difuzor integrate, control prin aplicatie Hik‑Connect, instalare usoara, design interior negru

Descriere

Tehnologia CMOS

Utilizata si in senzorii de imagine al camerelor Hikvision, tehnologia CMOS ajuta la captarea imaginilor la o calitate superioara. Printre caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie.

Full HD

Nu lasa nici un detaliu sa treaca neobservat. Cu tehnologia HD poti surprinde imagini de o calitate mai buna, cu pana la 5 ori mai detaliate decat standardul SD. Deasemeni, suprafata care va fi acoperita va fi mult mai mare.

SD card

Scapa de grija instalatiilor complexe , de amalgamul de cabluri si echipamente grele si costisitoare, deoarece acum poti inregistra si stoca  imaginile pe propriul card SD pe care il conectezi direct la camera.

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

Zoom motorizat

Avantajele includ posibilitatea de zoom direct pe camera, imagini mai clare, contrast mai bun chiar si in conditii de iluminare scazuta sau la distante focale lungi. Avand si functia de autofocus nu mai este nevoie de o ajustare manuala la fiecare schimbare de cadru.

Un nou standard este necesar pentru a micsora dimensiunile fisierelor pe masura ce tehnologia avanseaza. Aici intra in actiune standardul H.265+. Acest standard este conceput sa utilizeze o latime de banda mult mai mica multumita tehnicilor de encoding avansate dar si un model de encoding/decoding mai sofisticat.

Pan Tilt Zoom – PTZ

Caracteristica unei camera de a se misca automat in mai multe directii oferind si posibilitatea de zoom automat.

- Rotire in plan orizontal (Pan);

- Inclinare in plan vertical (Tilt);

- Aproprierea imaginii (Zoom) pentru observarea detaliilor aflate la distante mari.

Directia de miscare a camerei, poate fi controla de la distanta prin intermediul unui joystick , browser de internet sau aplicatia software. Acopera zone mari de supraveghere si inregistreaza fara interventia directa a utilizatorului conform unui plan stabilit.

Wide temperature

Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -30°C si +60°C si cu umiditate de pana la 90%.

• Lens
• FOVHorizontal field of view: 100° to 25° (wide-tele),Vertical field of view: 56.3° to 14.1° (wide-tele),Diagonal field of view: 114.7° to 28.7° (wide-tele)
• Zoom SpeedApprox. 2 s (optical lens, wide-tele)
• Working Distance10 mm to 1500 mm (wide-tele)
• Aperture RangeF1.8 to F2.5
• Focal Length2.8 mm to 12 mm, 4× optical zoom

• Image
• Image EnhancementHLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
• Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
• Max. Resolution1920 × 1080
• Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

• Network
• Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
• ProtocolsIPv4/IPv6, HTTP, HTTPS, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
• APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
• Simultaneous Live ViewUp to 20 channels
• User/HostUp to 32 users. ,3 levels: Administrator, Operator and User
• ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
• Web BrowserIE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+
• Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IP address filtering
• Alarm LinkageAlarm actions, such as Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
• Wi-FiSupport

• Interface
• Alarm Output1-ch alarm output
• Alarm Input1-ch alarm input
• Audio Input1-ch audio input
• Audio Output1-ch audio output
• Network Interface1 RJ45 10 M/100 M Ethernet Interface; PoE (802.3af, class3)

• Compression Standard
• H.264+Support
• H.265+Support
• H.264 TypeBaseline Profile/Main Profile/High Profile
• Video CompressionMain Stream: H.265+/H.265/H.264+/H.264,Sub-Stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
• H.265 TypeMain Profile
• Video Bitrate32 Kbps to 16384 Kbps
• SVCSupport

• Camera Module
• AGCAuto/Manual
• Image Sensor1/2.8" progressive scan CMOS
• Min. IlluminationColor: 0.05 Lux @(F2.0, AGC ON),B/W: 0.005 Lux @(F2.0, AGC ON),0 Lux with IR
• White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
• Shutter Time1/1 s to 1/30,000 s
• Day & NightIR Cut Filter
• Digital Zoom4×
• Privacy Mask8 programmable privacy masks
• Focus ModeAuto/Semi-automatic/Manual
• Digital WDRSupport

• Supplement Light
• IR DistanceUp to 20 m
• IR IntensityAutomatically adjusted, depending on the zoom ratio

• PTZ
• Movement Range (Pan)350°
• Pan SpeedConfigurable, from 0.1°/s to 60°/s,Preset Speed: 60°/s
• Movement Range (Tilt)From 0° to 90°
• Tilt SpeedConfigurable, from 0.1°/s to 50°/s,Preset Speed: 50°/s
• Proportional ZoomSupport
• Presets300
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Power-off MemorySupport
• Park ActionPreset/Patrol Scan
• PTZ Status DisplaySupport
• Preset FreezingSupport
• Scheduled TaskPreset/Patrol /Dome Reboot/Dome Adjust/Aux Output

• Smart Features
• Basic Event DetectionMotion Detection, Video Tampering Detection
• Smart DetectionIntrusion Detection, Line Crossing Detection, Audio Exception Detection
• ROIMain stream, sub-stream and third stream respectively support two fixed areas.

• General
• MaterialADC12 PC PC+ABS SUS304 POM
• DimensionsΦ 125 mm × 136.7 mm (Φ 4.92" × 5.38")
• WeightApprox. 0.65 kg (1.43 lb)
• Protection LevelTVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
• Power12 VDC and PoE (802.3af, class3),Max.: 9 W (IR light 3 W Max.)
• Working TemperatureWorking Temperature: -10°C to 50°C (14°F to 122°F)
• Working HumidityWorking Humidity: ≤ 90%
