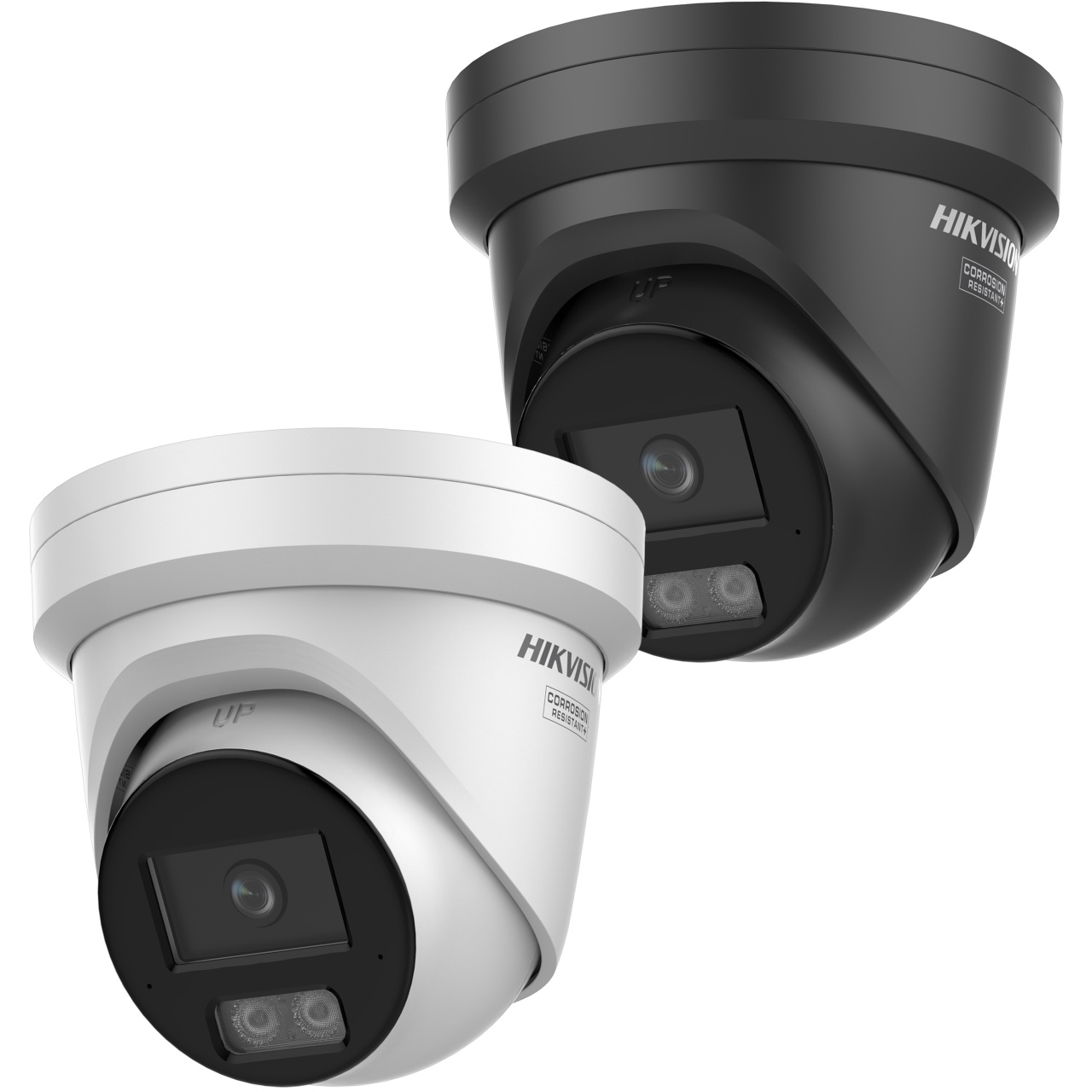

Camera supraveghere IP Hikvision turret 12MP DS-2CD23123G2-LI2UY AcuSense Smart Hybrid Light, WDR 120dB, microfon dual, H.265+, IP67, anti-corrosive design
Descriere
- Camera
- Image Sensor1/1.8" Progressive Scan CMOS
- Max. Resolution4608 × 2592
- Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light
- Shutter Time1 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
- Lens
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 94.2°, vertical FOV 51.1°, diagonal FOV 110.2°
4 mm, horizontal FOV 73.1°, vertical FOV 40.2°, diagonal FOV 84.8°
- Lens MountM16
- Iris TypeFixed
- ApertureF1.6
- Depth of Field
2.8 mm: 2.9 m to ∞
4 mm: 3.5 m to ∞
- Pixel Density
- DORI
2.8 mm, D: 117 m, O: 46 m, R: 23 m, I: 11 m
4 mm, D: 148 m, O: 59 m, R: 29 m, I: 14 m
- Illuminator
- Supplement Light TypeIR,White Light
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
50 Hz:
20 fps (4608 × 2592)
25 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
20 fps (4608 × 2592)
30 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
- Video Compression
Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
*Third stream is supported under certain settings.
- Video Bit Rate32 Kbps to 20 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Bit Rate ControlCBR,VBR
- Region of Interest (ROI)1 fixed region for main stream
- Target CroppingYes
- Audio
- Audio Type-2U: Mono sound
- Audio Compression-2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate-2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
- Audio Sampling Rate-2U: 8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise Filtering-2U: Yes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
- Simultaneous Live ViewUp to 6 channels
- APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- ClientiVMS-4200,Hik-Connect,Hik-Central
- Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
- Web Browser
Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+,
Local service: Chrome 80+, Firefox 80+, Edge 89+
- Image
- Image Parameters SwitchYes
- Day/Night SwitchDay,Night,Auto,Schedule
- Image SettingsSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Image EnhancementBLC,HLC,3D DNR,Distortion Correction,Defog
- Privacy Mask4 programmable polygon privacy masks
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- Audio-2U: Built-in Microphone: Arrayed dual-microphone
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Reset KeyYes
- Event
- Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Smart EventScene change detection
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email
- Deep Learning Function
- Face CaptureYes
- Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
- General
- Power
12 VDC ± 25%, 0.7 A, max. 8.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 10.5 W
- MaterialMetal
- DimensionØ127.3 mm × 96.3 mm (Ø5.0" × 3.8")
- Package Dimension170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
- WeightApprox. 515 g (1.1 lb.)
- With Package WeightApprox. 755 g (1.7 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionHeartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
- Approval
- EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
- Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013
- Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)
