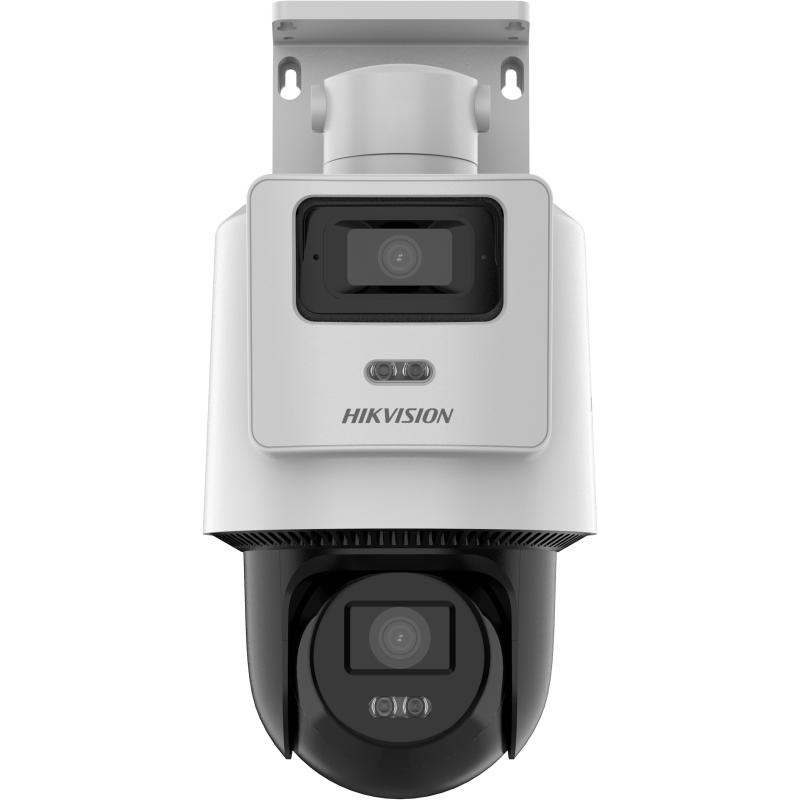

Camera supraveghere IP Hikvision Pro Series EasyIP PTZ 4MP DS‑2SE2C400MWG‑E/14(2.8/8mm) TandemVu Smart Hybrid Light IR+WL, detectie persoane/vehicule, Hik‑Connect, two‑way audio, microSD 512GB, IP66
Descriere
Tehnologia CMOS
Utilizata si in senzorii de imagine al camerelor Hikvision, tehnologia CMOS ajuta la captarea imaginilor la o calitate superioara. Printre caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie.
Un nou standard este necesar pentru a micsora dimensiunile fisierelor pe masura ce tehnologia avanseaza. Aici intra in actiune standardul H.265+. Acest standard este conceput sa utilizeze o latime de banda mult mai mica multumita tehnicilor de encoding avansate dar si un model de encoding/decoding mai sofisticat.
Power over Ethernet – PoE
Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.
Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde
Stabilizarea electronica a imaginii (EIS) este o tehnica de imbunatatire a imaginii, utilizând o procesare electronică. EIS minimizeaza incetosarea si corecteaza imaginea atunci cand obiectele se afla in miscare chiar si la viteze mari
3D- DNR
DNR este o functie care reduce zgomotul de imagine , in scopul de a imbunatati calitatea imaginii aparatului.In special , se reduce zgomotul care este generat in conditii de luminozitate slaba.
3D se refera la trei dimensiuni si incorporate in 3D DNR este un circuit de reducere a zgomotului digital, capabil de a reducezgomotul de imagine si de a imbunatati esecul amestecat de culori si contactul de culori.
Pan Tilt Zoom – PTZ
Caracteristica unei camera de a se misca automat in mai multe directii oferind si posibilitatea de zoom automat.
- Rotire in plan orizontal (Pan);
- Inclinare in plan vertical (Tilt);
- Aproprierea imaginii (Zoom) pentru observarea detaliilor aflate la distante mari.
Directia de miscare a camerei, poate fi controla de la distanta prin intermediul unui joystick , browser de internet sau aplicatia software. Acopera zone mari de supraveghere si inregistreaza fara interventia directa a utilizatorului conform unui plan stabilit.
IP66
Nivelul de protectie asigurat de carcasa camerei impotriva accesului la componentele interne, a corpurilor solide sau a patrunderii apei. IP 66 indica un grad superior de protectie asupra factorilor externi.
Wide temperature
Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -40°C si +65°C si cu umiditate de pana la 90%.
- Camera
- Image Sensor
[Bullet channel]
1/2.8 Progressive Scan CMOS
[PTZ channel]
1/2.8 Progressive Scan CMOS"
- Min. Illumination
[Bullet channel]
Color: 0.005 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR
[PTZ channel]
Color: 0.005 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F2.0, AGC ON), 0 lux with IR
- Shutter Speed1 s to 1/30,000 s
- Slow ShutterYes
- Day & NightICR
- Max. Resolution[Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440
- Lens
- Focal Length[Panoramic channel] 2.8 mm, [PTZ channel] 8 mm
- FOV
[Panoramic channel]
horizontal field of view: 94°, vertical field of view: 49°, diagonal field of view: 114°,
[PTZ channel]
horizontal field of view: 44°, vertical field of view: 24°, diagonal field of view: 51°
- Aperture[Bullet channel] F1.6, [PTZ channel] F1.6
- Illuminator
- Supplement Light Type[Bullet channel] Hybrid (IR and White Light), [PTZ channel] Hybrid (IR and White Light)
- Supplement Light Range[Bullet channel]: up to 30 m, [PTZ channel]: up to 30 m
- Smart Supplement LightYes
- PTZ
- Movement Range (Pan)[Panoramic channel] 0° to 355°, [PTZ channel] 0° to 345°
- Movement Range (Tilt)[Bullet channel] 7° to 17° (manually adjust), [PTZ channel] 0° to 80°
- Pan SpeedPan speed: configurable from 4° to 25°/s, preset speed: 25°/s
- Tilt SpeedTilt speed: configurable from 4° to 20°/s, preset speed 20°/s
- Presets300
- Power-off MemoryYes
- Video
- Scalable Video Coding (SVC)Yes
- Region of Interest (ROI)1 fixed region for main stream
- Main Stream
[Bullet channel]
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
[PTZ channel]
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream
[Bullet channel]
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
[PTZ channel]
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
- Video Compression
Main stream: H.265/H.264/Smart264/Smart265,
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 4 Mbps
- H.264 TypeBaseline profile,Main profile,High profile
- H.265 TypeMain profile
- Audio
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate64 Kbps(G.711ulaw/G.711alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 160 Kbps(MP2L2)/16 to 64Kbps(AAC-LC)/8 to 160 Kbps(MP3)/8 to 48 Kbps(PCM)
- Audio Sampling Rate8 kHz/16 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, SMTP, RTSP, FTP, WebSockets, IGMP, WebSocket, Qos, RTCP, HTTPS, PPPoE, SNMP, NTP, RTP, UDP, DNS, HTTP, DHCP, Bonjour, 802.1x, IPv4, IPv6, DDNS, ICMP, UPnP
- APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- SecurityAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
- Simultaneous Live ViewUp to 6 channels
- User/HostUp to 32 users. 3 user levels: administrator, operator, and user
- ClientiVMS-4200,Hik-Connect,Hik Partner Pro
- Web BrowserChrome 31 to 44, Firefox 30 to 51, Safari 8.0+
- Image
- Image SettingsSaturation, brightness, contrast, sharpness
- Wide Dynamic Range (WDR)Digital WDR
- SNR≥ 52 dB
- Day/Night SwitchDay,night,auto,schedule
- Image EnhancementBLC,HLC,3D DNR
- Privacy Mask[Bullet channel] 4 programmable polygon privacy masks, [PTZ channel] 4 programmable polygon privacy masks
- Image Parameters SwitchYes
- Interface
- Built-in Microphone1 built-in microphone
- Built-in Speaker1 built-in speaker
- Ethernet Interface1 RJ45 10 M/100M self-adaptive Ethernet port
- On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- RESETAREYes
- Event
- Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)), exception
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,audible warning
- General
- MaterialPC
- General FunctionMirror,password protection,watermark,IP address filter
- Power
12 VDC ± 25%, 1.5 A, max. 18 W, Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3at, Class 4, max. 21.5 W
- Operating Condition-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
- Dimension134 mm × 213.5 mm × 291.7 mm (5.3" × 8.4" × 11.5")
-
Weight: 1000 g (2.2 lb.)
With Package Weight: 1500 g (3.3 lb.)
- Approval
- ProtectionIP66 Standard, Surge Protection and Voltage Transient Protection
