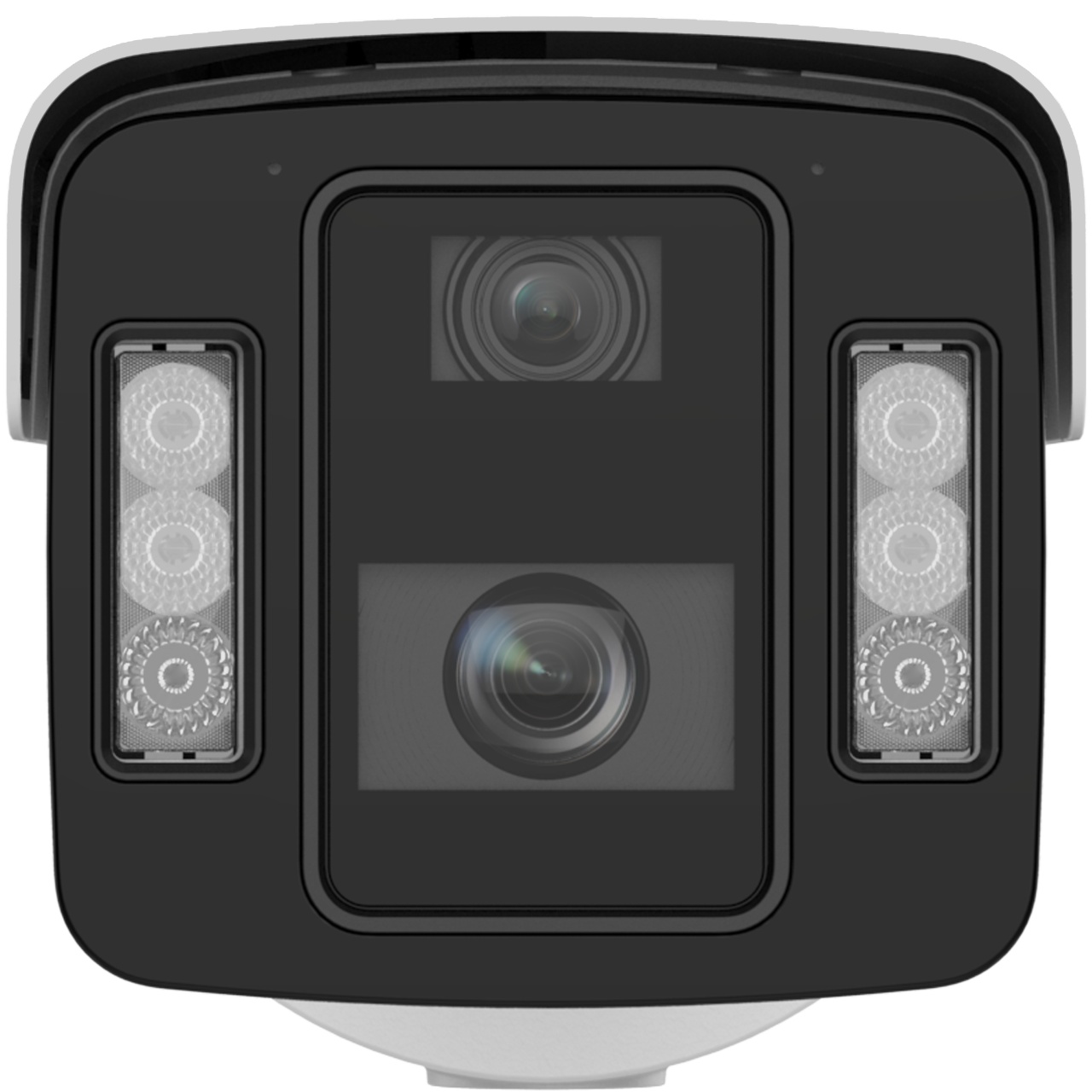

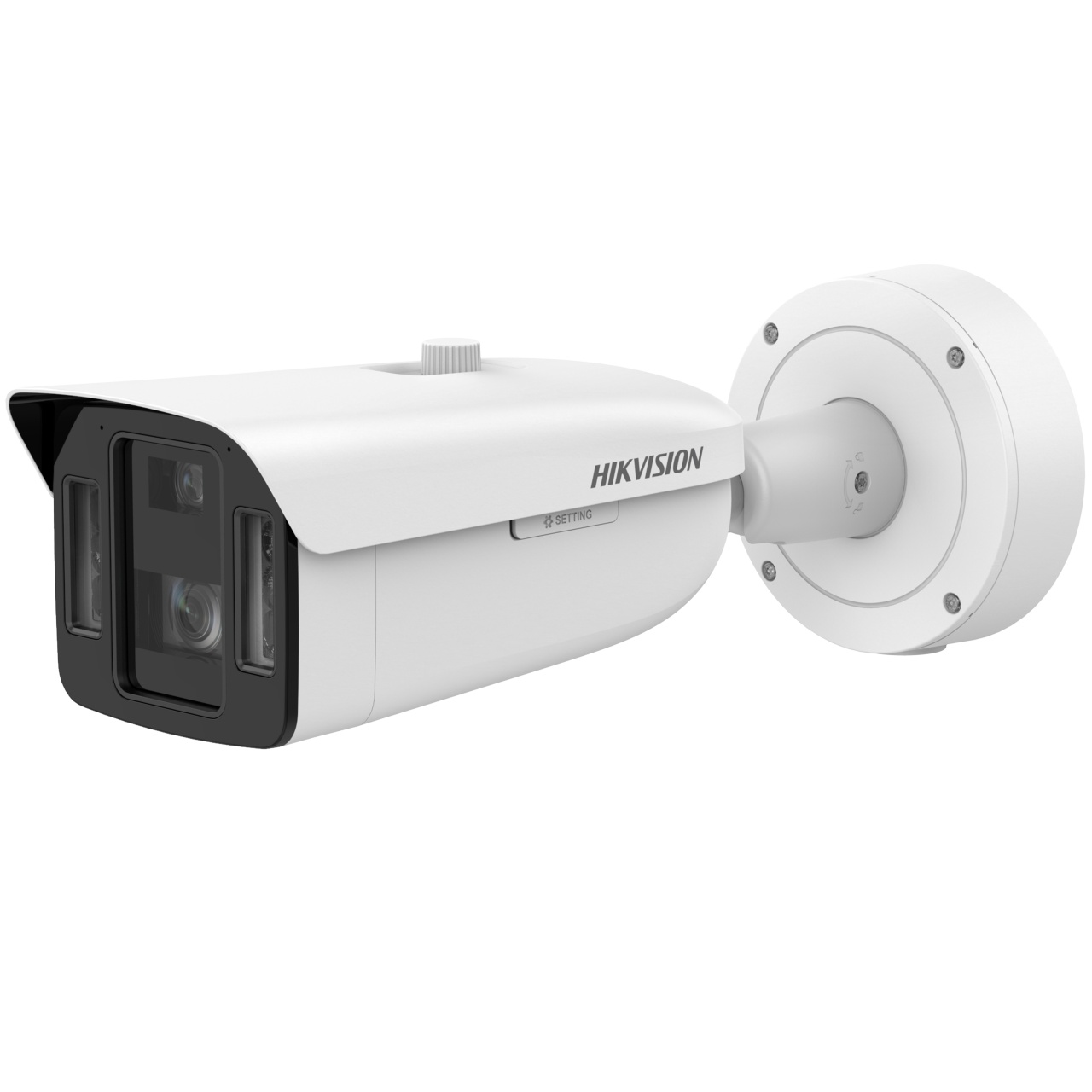

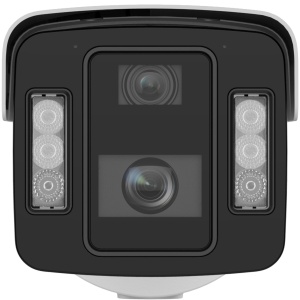

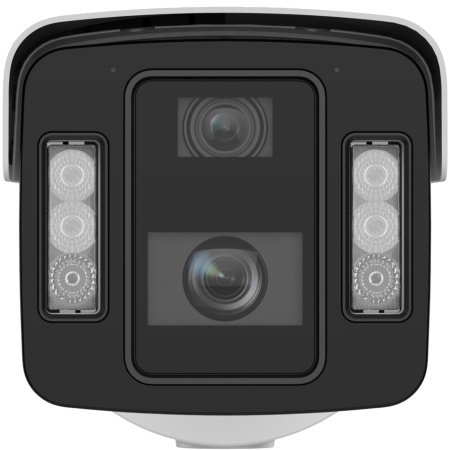

Camera supraveghere IP Hikvision bullet 8MP IDS‑2CD8A86G2‑XZHSY(10-50/4) multi‑sensor, Channel 1 + 4 MP Channel 2, DeepinView, WDR 140 dB, IR + white light 120m/30 m, H.265+/H.265/H.264, microSD, ONVIF, IP67 IK10 profesionist

Descriere

Tehnologia CMOS

Utilizata si in senzorii de imagine al camerelor de supraveghere, tehnologia CMOS ajuta la captarea imaginilor la o calitate superioara. Printre caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie.

H.265+

H.265+ imbunatateste dramatic eficienta codificarii: reducerea cerintelor privind latimea de banda cu pana la 75% fata de H.2645 si ocuparea a jumatate din spatiul de stocare pentru acelasi numar de inregistrari video. H.265+ reprezinta un pas important in compresia video si inseamna economii semnificative ale costurilor de stocare pentru utilizatori.

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

Face detection

Prin aplicarea tehnologiei de detectare a fetei, camerele IP Dde la HIKVISION, pot detecta precis trasaturile faciale umane, le pot analiza si declansa alarma in cazul in care este setata una.

3D- DNR

DNR este o functie care reduce zgomotul de imagine , in scopul de a imbunatati calitatea imaginii aparatului.In special , se reduce zgomotul  care este generat in conditii de luminozitate slaba.

3D se refera la trei dimensiuni si incorporate in 3D DNR este un circuit  de reducere a zgomotului digital, capabil de a reducezgomotul de imagine si de a imbunatati esecul amestecat de culori si contactul de culori.

Wide Dynamic Range – WDR

Este o tehnologie utilizata de camerele de supraveghere video CCTV, cu scopul de a echilibra imaginile video care au o gama dinamica mare. Aceasta este o caracteristica care confera camerei, posibilitatea, de a aplica intensitati separate ale luminii pentru aceeasi imagine. Aceasta functie este ideala pentru imagini care cuprind atat zone luminate cat si zone intunecate.

Motion detection

Detectia de miscare presupune analizarea diferentelor dintre doua imagini. Daca diferenta dintre cele doua imagini comparate trece de o anumita valoare data, este detectata miscarea si se declanseaza alarma setata.

Elementul cheie in detectia de miscare este Region of Interest (ROI). ROI denota o zona video sensibila la miscare. O zona de detectie a miscarii este in esenta o retea de 16x16 celule. Acestor celule li se impun niste limite de sensibilitate la miscare, valoare la care este declansata automat alarma.

Line crossing

Aceasta functie poate detecta obiecte, persoane sau masini ce depasesc o linie virtuala predefinita. Reprezinta o solutie ideala pentru monitorizarea intrarilor, a parcarilor sau alte zone delimitate.

Intrusion detection

In cazul de detectare a intruziunilor, camera video porneste simultan alarma si inregistrarea de evenimente. Prin aplicarea celor mai recenti algoritmi, analizeaza in mod automat dimensiunile intrusului pentru a minimiza si estompa alarmele false. Aceste caracteristici sunt foarte folositoare pentru siguranta zonelor predefinite.

Detectie obiecte abandonate

Sistemul este capabil sa identifice obiectele abandonate din zona definite . Zona monitorizata suporta configurare personalizata .

SD card

Scapa de grija instalatiilor complexe , de amalgamul de cabluri si echipamente grele si costisitoare, deoarece acum poti inregistra si stoca imaginile pe propriul card SD pe care il conectezi direct la camera.

Heater-ul (incalzitorul), ajuta camera sa functioneze la temperaturi cu mult sub zero grade, oferindu-i protectia necesara.

IP67

Nivelul de protectie asigurat de carcasa camerei impotriva accesului la componentele interne, a corpurilor solide sau a patrunderii apei. IP 67 indica un grad superior de protectie asupra factorilor externi si ofera protectie impotriva efectului de imersie, intre 15 cm si 1 m.

IK10

Caracteristica IK10 este un standard ce arata ca o camera poate suporta o energie de impact de pana la 20J.

Wide temperature

Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -30°C si +60°C si cu umiditate de pana la 95%.

• Camera
• Image Sensor1/1.8ʺ Progressive Scan CMOS
• Min. IlluminationColor: 0.0045 Lux @ (F1.8, AGC ON), 0 Lux with IR
• Shutter Speed1 s to 1/100,000 s
• Slow ShutterYes
• Wide Dynamic Range140dB
• Day & NightICR Cut
• Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

• Lens
• FocusAuto, semi-auto, manual
• Lens Type & FOV

  Motorized lens, 8 to 32 mm

  Horizontal FOV 38° to 15°, vertical FOV 21° to 9°, diagonal FOV 43° to 18°

• ApertureF1.8 to F2.0
• Lens MountIntegrated
• Blue Glass ModuleYes

• Illuminator
• IR RangeUp to 100 m
• Wavelength850 nm

• Video
• Max. Resolution2560 × 1440
• Main Stream

  50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub Stream

  50Hz: 25fps (704 × 576, 640 × 480)

  60Hz: 30fps (704 × 480, 640 × 480)

• Third Stream

  50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

  60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

• Fourth Stream

  50Hz: 25fps (704 × 576, 640 × 480)

  60Hz: 30fps (704 × 480, 640 × 480)

• Fifth Stream

  50Hz: 25fps (704 × 576, 640 × 480)

  60Hz: 30fps (704 × 480, 640 × 480)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264

  Sub-stream/Fourth Stream/Fifth Stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• H.264+Main stream supports
• H.265+Main stream supports
• Stream Type5 defined streams
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)4 fixed regions and dynamic face tracking for each stream

• Audio
• Environment Noise FilteringYes
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)

• Network
• Simultaneous Live ViewUp to 20 channels
• APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, TLS 1.2
• Network Storage

  microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR ;

  Together with ordinary memory card, memory card encryption is supported;

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11

  Plug-in free live view: Chrome45.0+, Firefox52.0+

• Image
• Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
• Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format.
• Image EnhancementBLC, HLC, Defog, EIS, Lens Distortion, 3D DNR
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, white balance adjustable by client software or web browser.
• SNR≥52dB

• Interface
• Alarm2 inputs, 2 outputs (max. 24 VDC, 1 A)
• Audio1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm)
• RS-4851 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 256 GB
• Communication Interface1 RJ45 10M/100M/1000M Ethernet port
• Power Output12 VDC, max. 200 mA
• Video Out1Vp-p composite output (75 Ω/CVBS), only for adjustment

• Event
• Smart Event

  Intrusion detection, up to 4 regions configurable

  Region entrance detection, up to 4 regions configurable

  Region exiting detection, up to 4 regions configurable

  Unattended baggage detection, up to 4 regions configurable

  Object removal detection, up to 4 regions configurable

  Scene change detection, audio exception detection, defocus detection

• Deep Learning Function
• Face Capture

  Face detection performance: detects up to 30 faces at the same time.

  Face position: supports swing left and right from -60° to 60°, tilt up and down from -30°to 30°.

  Uploads face with background and closed-up face pictures.

• Face Recognition

  Detects, captures and selects best human face pictures;

  Recognizes face identity via face modeling, grading and comparing to those in face library;

  Up to 10 face libraries and each library is configurable, each library is up to 30000 faces, up to 90000 faces in total;

  Face library encryption: the camera chip has a hardware encryption module to protect data.

• Intelligent (Traditional Algorithm)
• Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error, video quality diagnosis)
• Face DetectionNo

• General
• Linkage Method

  Trigger recording: memory card, network storage, pre-record and post-record

  Trigger captured pictures uploading: FTP, HTTP, NAS, Email, HTTPS

  Trigger notification: HTTP, ISAPI, alarm output, Email, HTTPS

• Online UpgradeYes
• Dual BackupNo
• Firmware Version5.5.86
• Web Client Language

  32 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

• General FunctionPassword protection, privacy mask, anti-flicker, heart, mirror, pixel counter
• Software ResetYes
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
• Power Supply12 VDC ±20%, reverse polarity protection; three-core terminal block; PoE (802.3at, type 2, class 4)
• Power Consumption And Current

  With extra load: 12 VDC, 1.42A, max. 17.0 W; PoE (802.3at, 42.5 V to 57 V), 0.45 A to 0.33 A, max. 19.2 W

  Without extra load: 12 VDC, 1.22 A, max. 14.6 W; PoE (802.3at, 42.5 V to 57 V), 0.40 A to 0.29 A, max. 16.8 W

  with extra load\" means that an extra device is connected to and powered by the camera.

• Power InterfaceThree-core terminal block
• MaterialMetal
• Camera DimensionCamera: Φ144 × 347 mm (Φ5.7″ × 13.7″)
• Package DimensionWith package: 405×190×180 mm (15.9″ × 7.5″ × 7.1″)
• Camera WeightCamera: approx. 1940 g (4.3 lb.)
• With Package WeightWith Package: approx. 3050 g (6.7 lb.)

• Approval
• ClassClass B
• ProtectionIngress protection: IK10 (IEC 62262:2002), IP67(IEC 60529-2013)
• EMC

  FCC ID (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

  RCM (AS/NZS CISPR 32: 2015);

  IC (ICES-003: Issue 6, 2016);

  KC (KN 32: 2015, KN 35: 2015)

• Safety

  UL (UL 60950-1);

  CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013);

  CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);

  BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);

• EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)2006
