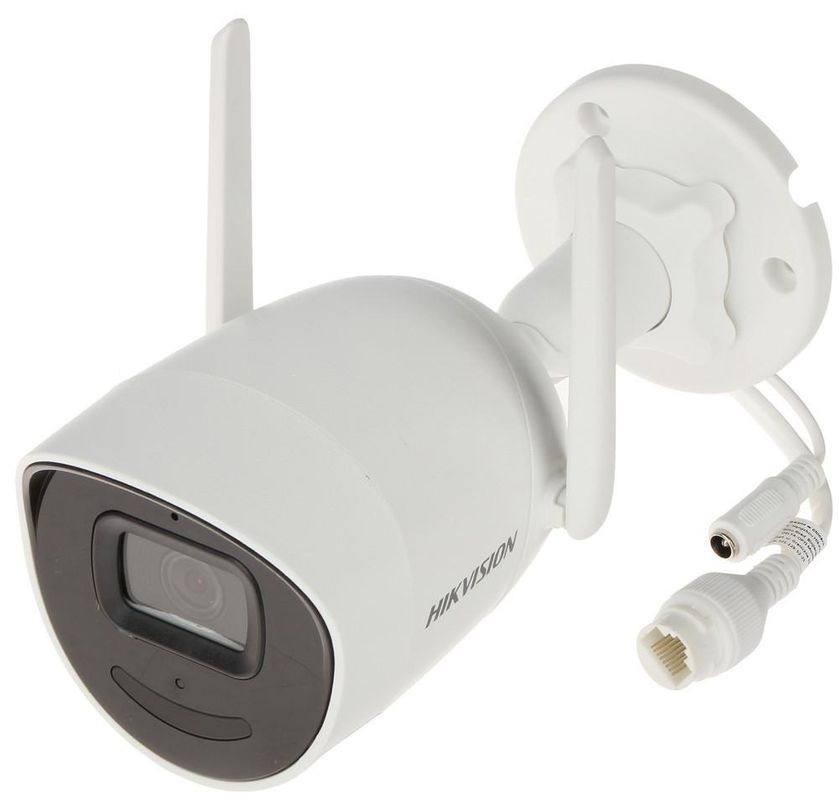

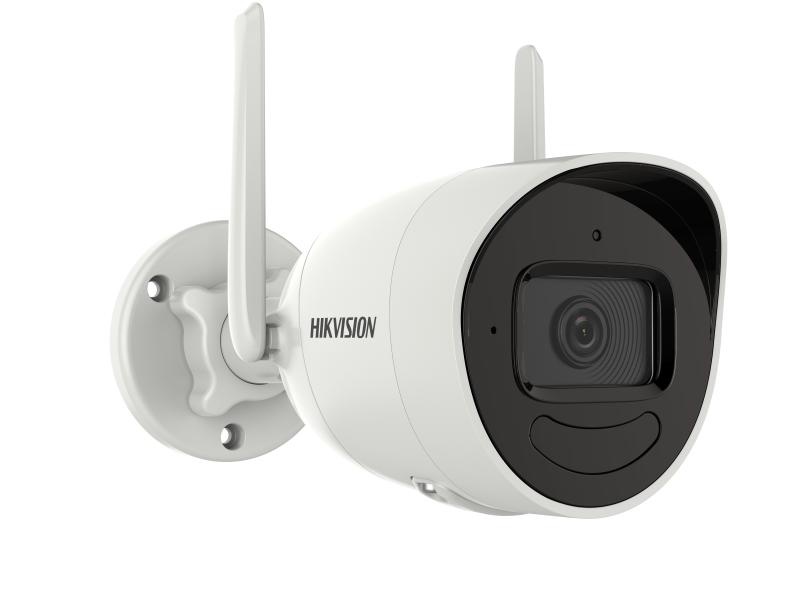

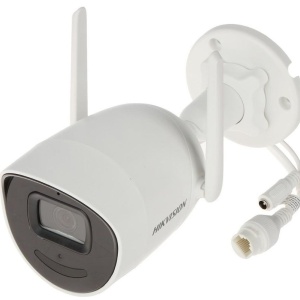

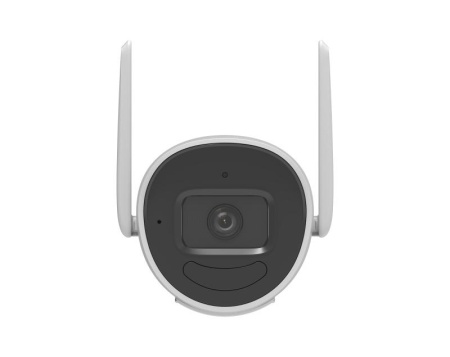

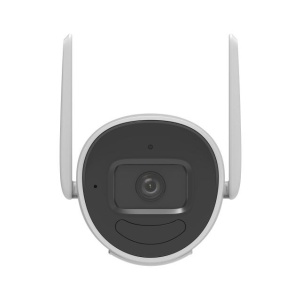

Camera supraveghere Hikvision WIFI IP bullet DS-2CV2041G2-IDW(W)

Descriere

Tehnologia CMOS

Utilizata si in senzorii de imagine al camerelor Hikvision, tehnologia CMOS ajuta la captarea imaginilor la o calitate superioara. Printre caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie

Un nou standard este necesar pentru a micsora dimensiunile fisierelor pe masura ce tehnologia avanseaza. Aici intra in actiune standardul H.265. Acest standard este conceput sa utilizeze o latime de banda mult mai mica multumita tehnicilor de encoding avansate dar si un model de encoding/decoding mai sofisticat.

Wi-Fi

Wi-Fi sau WiFi este o tehnologie , care permite dispozitivelor electronice sa se conecteze la o retea fara a fi nevoie de fir.Reteaua folosind in general  2,4 gigahertzi UHF  si 5 gigahertzi SHF ISM benzi radio

Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde

Monitorizarea de la distanta

Ofera posibilitatea de a urmari locuita personala sau spatiul comercial de la distanta, prin intermediul unui smartphone, tableta sau laptop.   Aceasta este o solutie optima, pentru a vedea transmisia sistemului video de supraveghere detinut intr-o anumita locatie cu ajutorul unei conexiuni la internet, 3G sau 4G

Microfonul incorporat ofera utilizatorului accesul la supravegherea audio a locatie si nu mai este necesara adaugarea unui dispozitiv aditional pentru captarea semnalului audio.

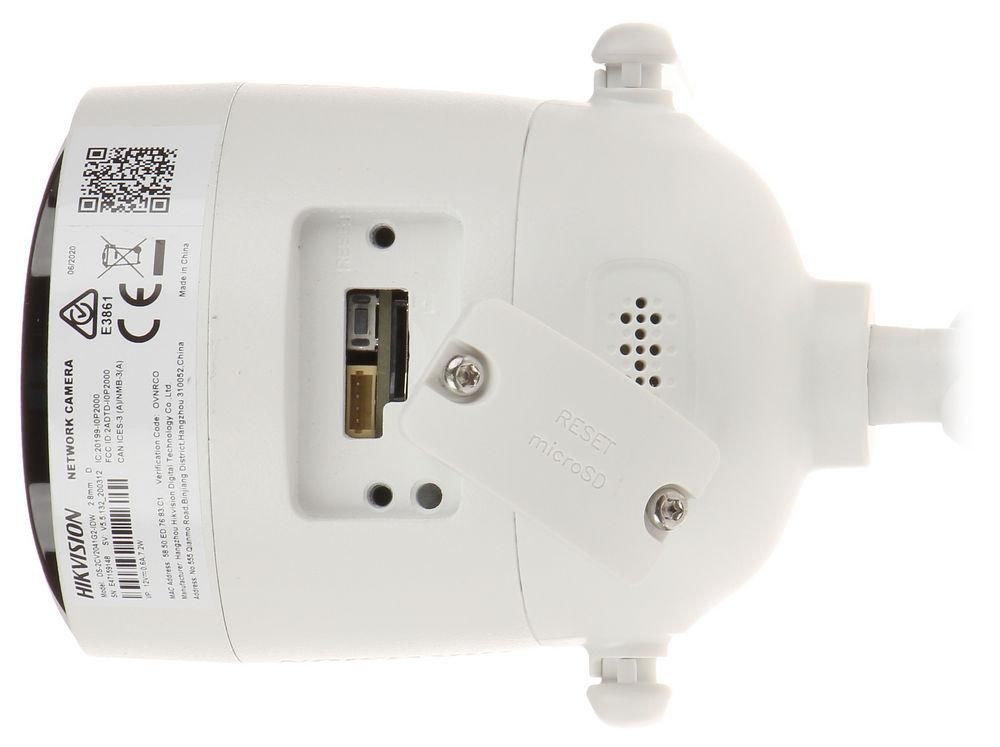

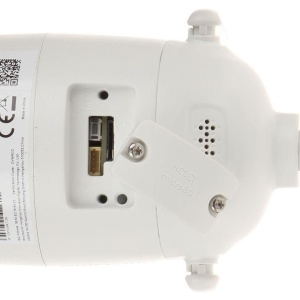

SD card

Scapa de grija instalatiilor complexe , de amalgamul de cabluri si echipamente grele si costisitoare, deoarece acum poti inregistra si stoca imaginile pe propriul card SD pe care il conectezi direct la camera

IP66

Nivelul de protectie asigurat de carcasa camerei impotriva accesului la componentele interne, a corpurilor solide sau a patrunderii apei. IP 66 indica un grad superior de protectie asupra factorilor externi

Wide temperature

Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -30°C si +60°C si cu umiditate de pana la 95%

• Camera
• Image Sensor1/2.7" Progressive Scan CMOS
• Min. IlluminationColor: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed1/3s to 1/100,000s
• Slow ShutterYes
• Wide Dynamic Range120 dB
• Day & NightICR Cut
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

• Lens
• Lens Type & FOV2.8 mm: horizontal FOV: 97°, vertical FOV: 52°, diagonal FOV: 114° 4 mm: horizontal FOV: 79°, vertical FOV 42°, diagonal FOV 93°
• ApertureF1.6
• Lens MountM12

• Illuminator
• IR RangeUp to 30 m
• Wavelength850 nm
• Smart Supplement LightYes

• Video
• Max. Resolution2560 × 1440
• Main Stream50Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub Stream50Hz: 25 fps (640 × 360) 60Hz: 30 fps (640 × 360)
• Video CompressionMain stream/Sub-stream: H.265/H.264
• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseLine Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Stream TypeMain stream and sub-stream
• Region Of Interest (ROI)1 fixed region for main stream

• Audio
• Environment Noise FilteringYes
• Audio Sampling Rate8 kHz/16 kHz
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)

• Network
• Simultaneous Live ViewUp to 6 channels
• APIISAPI, SDK
• ProtocolsTCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP,R TCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS
• User/HostUp to 32 users 3 levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
• Network StorageNAS(NFS, SMB/CIFS)
• ClientWired network: Hik-Connect, iVMS-4200 Wi-Fi: iVMS-4200
• Web BrowserPlug-in required live view: IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11; Plug-in free live view: Chrome 45.0+, Firefox 52.0+

• Image
• Day/Night SwitchDay/Night/Auto/Schedule
• Image EnhancementBLC, HLC, 3D DNR
• Image SettingsSaturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

• Interface
• On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
• Hardware ResetYes
• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

• Intelligent (Traditional Algorithm)
• Basic EventMotion detection, flashing alarm light output, audible alarm output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

• General
• Linkage MethodUpload to NAS/memory card, notify surveillance center, trigger record, trigger capture, audiable warning
• Online UpgradeYes
• Firmware VersionV5.5.132
• General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, watermark, IP address filter, flash log, pixel counter
• Software ResetYes
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F)
• Power Supply12 VDC ± 25%, reverse polarity protection
• Power Consumption And Current12 VDC, 0.6 A, 7.2 W
• Power InterfaceØ5.5 mm coaxial power plug
• MaterialFront cover: metal, back cover: plastic

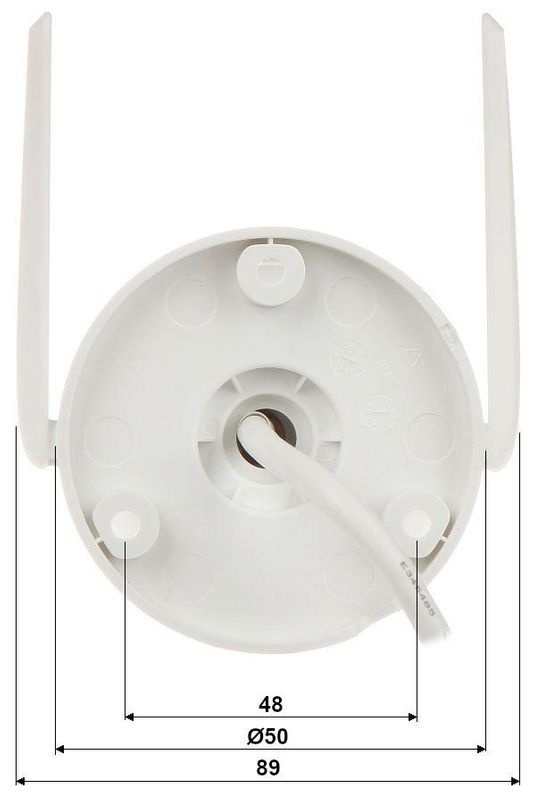

• Camera Dimension175.6× 73.0 × 89.1 mm (6.91" × 2.87" × 3.51")
• Package Dimension260 × 125 × 125 mm (10.24" × 4.92" × 4.92")
• Camera Weight450 g (0.99 lb.)
• With Package Weight770 g (1.70 lb.)

• Approval
• EMCFCC ID (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• RFFCC ID (FCC Part 15.247(BT or 2.4G)); IC ID (RSS-247(BT or 2.4G)); CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G)); WPC (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014); KC (KN 32:2015; KN 35: 2015; KN 301489-1; KN 301489-17); ICASA (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014; EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
• EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Reach Regulation (EC) No 1907/2006
• ProtectionIngress protection: IP66 (IEC 60529-2013)

• Wi-Fi
• Encryption Mode64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA4-PSK
• Wi-Fi ProtocolIEEE802.11b, 802.11g, 802.11n
• Frequency Range2.4 GHz - 2.4835 GHz
• Channel Bandwidth20/40 MHz
• Modulation802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
• Wireless RangeUp to 120 m (The performance varies based on actual environment)
