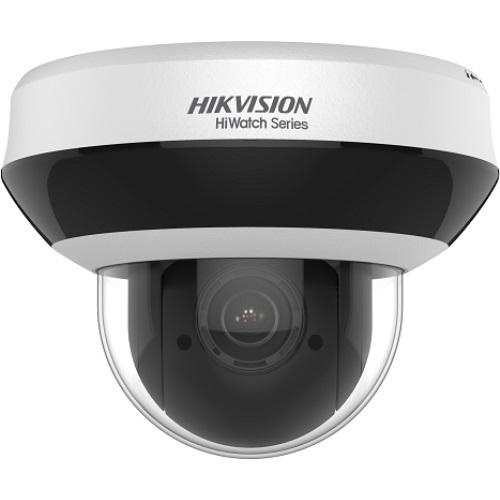

Camera supraveghere Hikvision IP PTZ CAMERA HWP-N2404IH-DE3F
Descriere
Camera Module
Image Sensor
1/2.8" progressive scan CMOS
Min. Illumination
Color: 0.005 Lux @(F1.5, AGC ON), B/W: 0.001 Lux @(F1.5, AGC ON), 0 Lux with IR
White Balance
Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
Gain
Auto/Manual
Shutter Time
50Hz: 1/1 s to 1/30,000 s, 60Hz: 1/1 s to 1/30,000 s
Day & Night
IR Cut Filter
Digital Zoom
16×
Privacy Mask
24 programmable privacy masks
Focus Mode
Auto/Semi-automatic/Manual
WDR
120 dB WDR Lens
Focal Length
2.8 mm to 12 mm, 4× optical zoom
Zoom Speed
Approx. 2 s (optical lens, wide-tele)
Working Distance
10 mm to 1500 mm (wide-tele)
Aperture Range
F1.5 to F2.7
Angle of View
Horizontal field of view: 100° to 33° (Wide-Tele), Vertical field of view: 53° to 18° (Wide-Tele), Diagonal field of view: 119° to 37.5° (Wide-Tele) Supplement Light
IR Distance
20 m
Smart IR
Support PTZ
Movement Range (Pan)
0° to 355°
Pan Speed
Configurable, from 0.1°/s to 100°/s, Preset speed: 100°/s
Movement Range (Tilt)
0° to 90°
Tilt Speed
Configurable, from 0.1°/s to 100°/s, Preset Speed: 100°/s
Proportional Zoom
Support
Presets
300
Power-off Memory
Support Compression Standard
H.264+
Support
H.265+
Support
H.264 Type
Baseline Profile/Main Profile/High Profile
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
H.265 Type
Main Profile
Video Bitrate
32 Kbps to 16384 Kbps
Audio Compression
G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bitrate
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2)
SVC
Support
Network
Security Measures
User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Network Storage
Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, Websocket, Websockets
API
Open-ended, support Open Network Video Interface, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform, support Hik-Connect
Simultaneous Live View
Up to 20 channels
User/Host
Up to 32 users,3 levels: Administrator, Operator and User
Client
iVMS-4200, HikCentral Pro, Hik-Connect
Web Browser
IE 10-11, Chrome 57+, Firefox 52+, Safari 11+ Image
Image Enhancement
3D DNR, BLC, HLC, Regional Exposure, Regional Focus
Max. Resolution
2560 × 1440
Main Stream
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50Hz: 25 fps (704 × 576, 640 × 480, 352 × 288),
60Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Interface
Audio Input
1-ch audio input
Audio Output
1-ch audio output
Network Interface
1 RJ45 10 M/100 M Ethernet, PoE
Built-in Microphone
1 built-in microphone, picking up sounds in the radius up to 5 meters Smart Features
Basic Event Detection
Motion Detection, Video Tampering Detection, Exception
Smart Detection
Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection
Smart Record
ANR (Automatic Network Replenishment), Dual-VCA
ROI
Main stream, sub-stream, and third stream respectively support two fixed areas. General
Material
Aluminum alloy, PC, PC+ABS
Dimensions
Ø 130.7 mm × 101.7 mm (Ø 5.15" × 4.00")
Weight
Approx. 0.53 kg (1.17 lb)
Protection Level
IP66 Standard, IK10, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Power
12 VDC, 1.5 A (Max. 9.9 W, including max. 4.2 W for IR) PoE (802.3af), 36 to 57 VDC, 0.35 A (Max. 11.2 W, including max. 4.2 W for IR)
Working Temperature
-20°C to 60°C (-4°F to 140°F)
Working Humidity
≤ 90%
