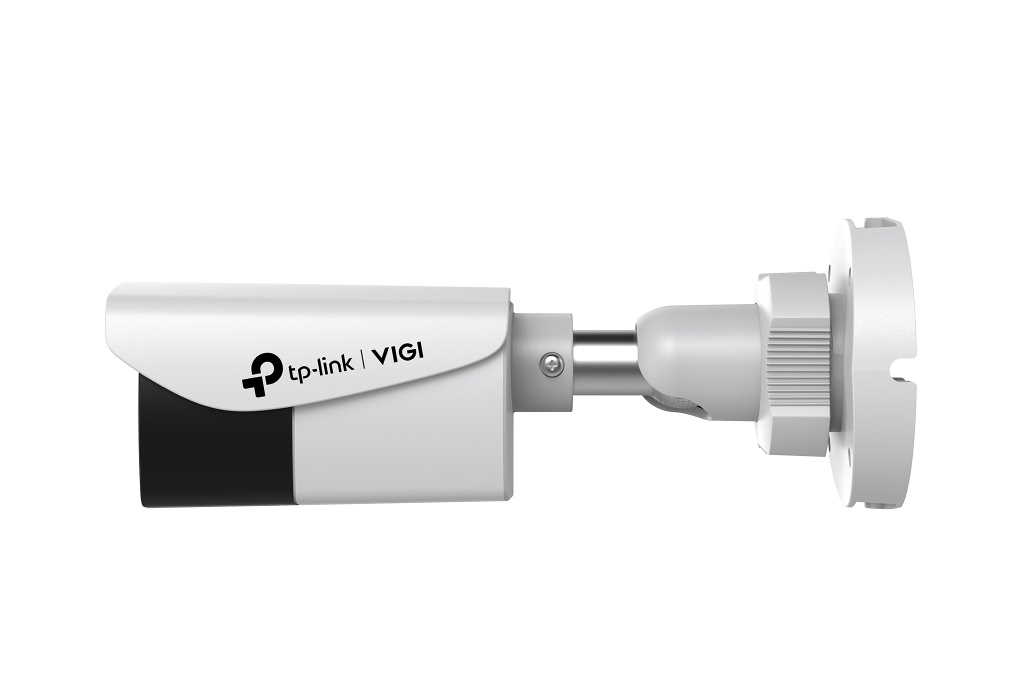

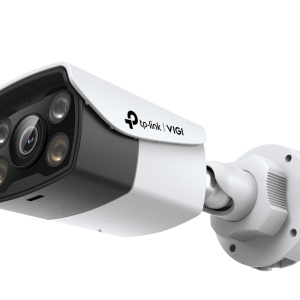

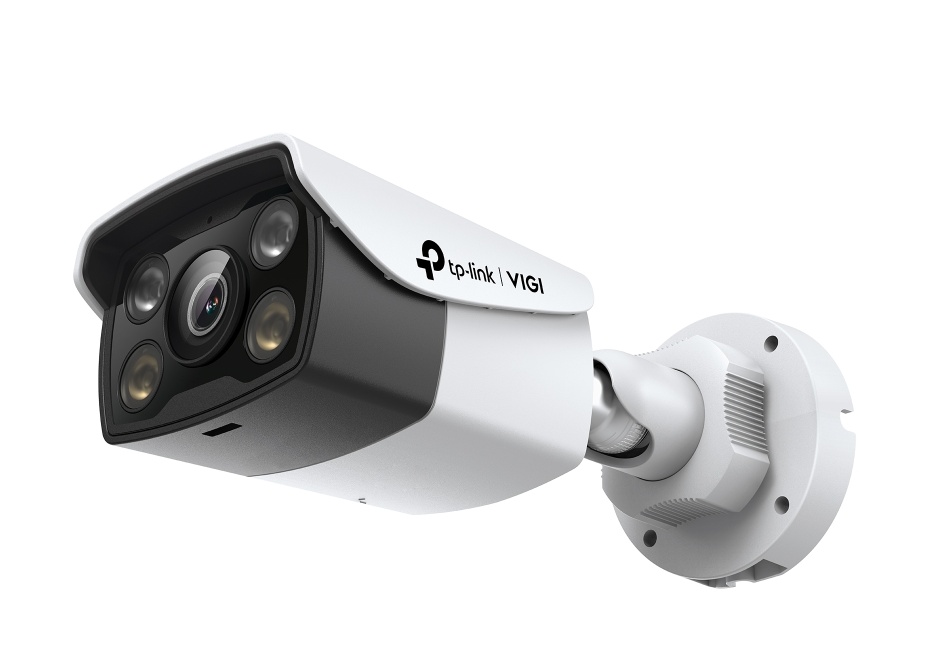

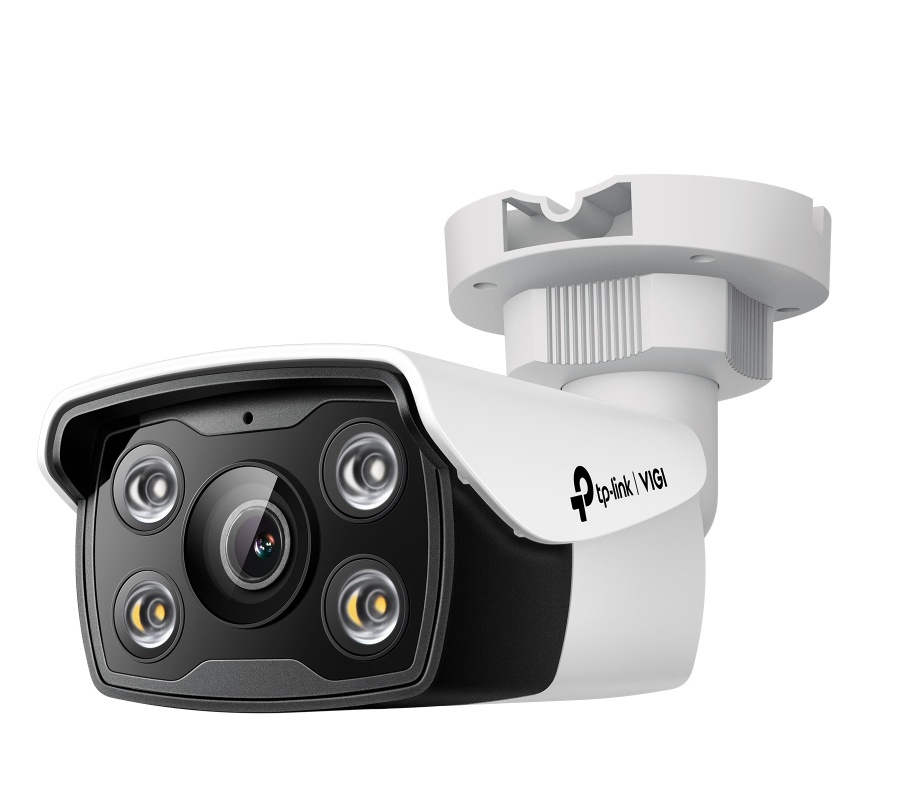

Camera supraveghere exterior VIGI C340 (2.8 mm), 4MP Super HD cu Full-Color 24 h, clasificare persoane si vehicule, detectie smart, tehnologie imbunatatire video, aparare activa si audio bidirectional, IP67 si H.265+

Descriere

Specifications
Camera
Product Model VIGI C340
Image Sensor 1/3” Progressive Scan CMOS
Min. Illumination Color: 0.005 Lux; 0 Lux with IR/white light
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR DWDR
Lens
Focal Length 2.8 mm/4 mm/6 mm
Aperture
6 mm: F1.6
4 mm: F1.6
2.8 mm: F1.6
Focus Fixed
FOV
2.8mm
Horizontal FOV: 96.1°, Vertical FOV: 52°, Diagonal FOV:
113.6°
4mm
Horizontal FOV: 80°, Vertical FOV: 43.2°, Diagonal FOV: 94.2°
6mm
Horizontal FOV: 49.3°, Vertical FOV: 26.8°, Diagonal FOV:
57.4°
Lens Mount M12
Illuminator
IR LED
Quantity: 2
Range: 30m
Wavelength: 850nm
White LED Quantity: 2
Range: 30m
Compression Standard
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Alarm and Event Management
Smart Event
Human & Vehicle Classification, Area Intrusion
Detection, Line-Crossing Detection, People
Detection, Vehicle Detection, Region Entering
Detection, Region Exiting Detection, Object
Abandoned Detection, Object Removal Detection
Basic Event Motion Detection, Video Tampering Detection,
Exception ( Illegal Login)
Alarm Linkage Memory Card Video Recording, Message Push,
Audible Warning, White Light Flashing
Linkage Method N/A
Output Notification Message Push
Max. Resolution 2560 X 1440
Main Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps,
30fps
Resolution: 2560x1440, 2304x1296, 2048x1280,
1920x1080, 1280x720
Sub-Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps,
30fps
Resolution: 640x480, 352x288, 320x240
Image Enhancement BLC/3D DNR/HLC/SmartIR
Image Settings
Mirror, Brightness, Contrast, Saturation, Sharpness,
Exposure, WDR, White Balance, Prevent
Overexposure to Infrared Light, HLC Adjustable by
Client Software, Rotation(90°/270°)
Day/Night Switch Day/Night/Auto/Schedule-Switch
Privacy Mask Up to 4 Masks
Network
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS
Network Storage NAS (NFS, SMB/ CIFS)
API Open Network Video Interface (Profile S)
Web Browser
Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Security Password Protection, HTTPS Encryption, IP
Address Filter, Digest Authentication
Simultaneous Live View Up to 6 Channels
Client VIGI App, VIGI Security Manager, VIGI NVR, Web
Cloud Yes
ONVIF Yes
Interface
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
On-board Storage Built-In Memory Card Slot, Support MicroSD Card,
Up to 256 GB
Built-in Speaker Yes
Built-in Microphone Yes
Audio Output N/A
Alarm N/A
Reset Button Yes
General
Operating Temperature -30–60 °C
Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
Power Consumption 12V DC: Max 7W
PoE: Class 0
Audio Communication Two-Way Audio
Ingression Protection IP67
Material Plastic
Product Dimensions 174*78*70 mm
Certifications CE, RCM, BSMI, VCCI, RoHS, NTRA, KC
