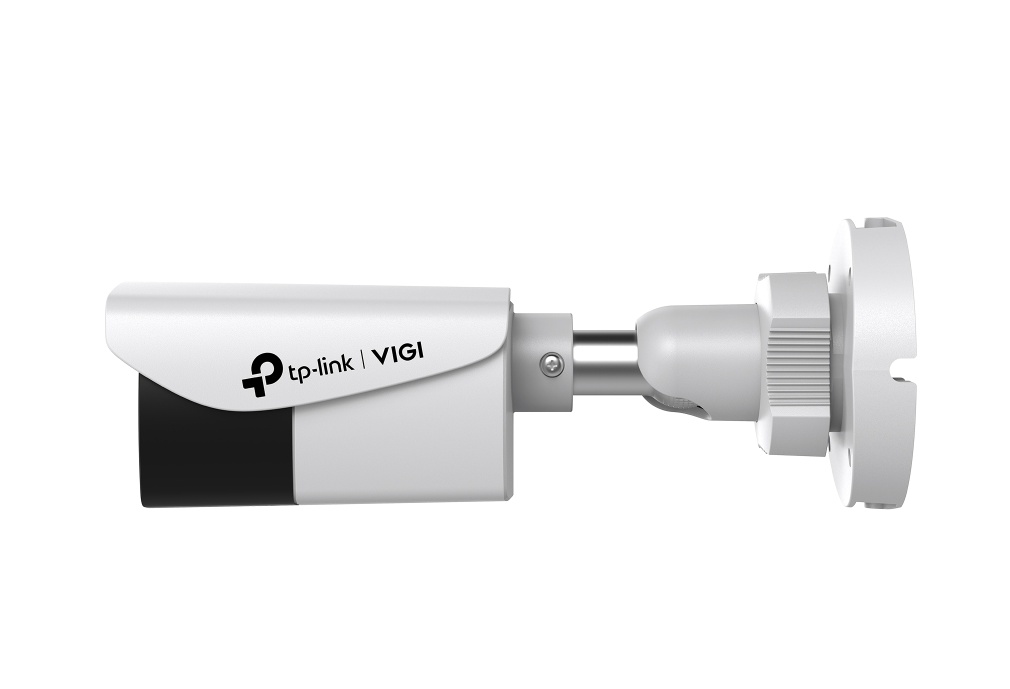

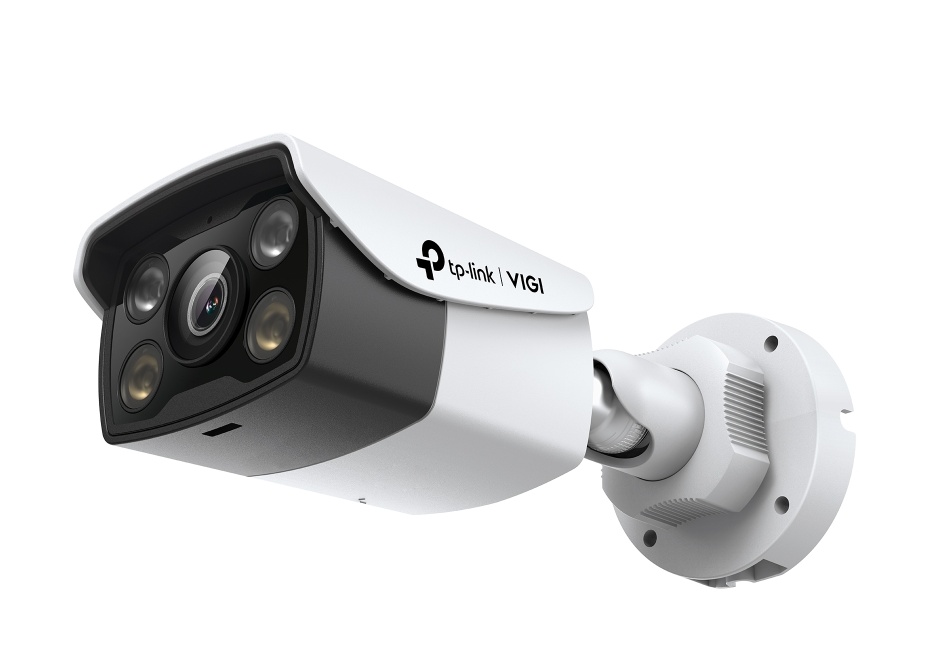

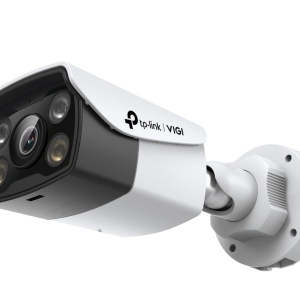

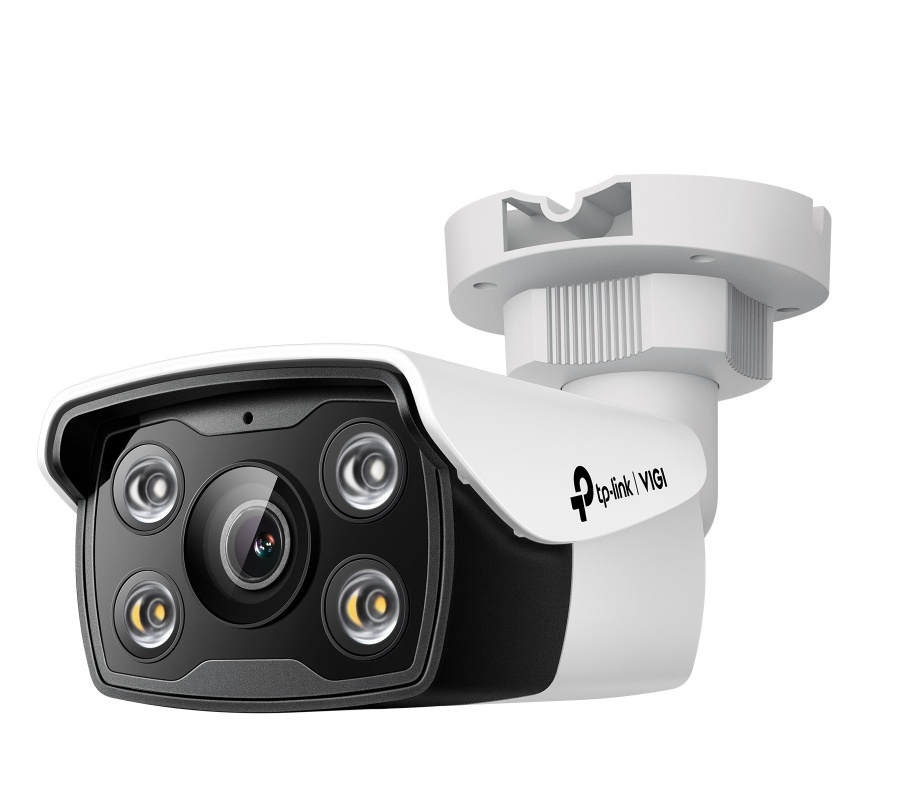

Camera supraveghere exterior VIGI C330 (2.8 mm), 3MP Super HD cu Full-Color 24 h, clasificare persoane si vehicule, detectie smart, microfon incorporat, IP67 rezistent la apa si praf, H.265+

Descriere

Specifications
Camera
Image Sensor 1/2.8” Progressive Scan CMOS
Min. Illumination Color: 0.005 Lux; 0 Lux with IR/white light
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR DWDR
Lens
Focal length 2.8/4/6 mm
Aperture F1.6
Focus Fixed
FOV
2.8mm: 107.5°/57.2°/128.7°(H/V/D)
4mm: 89.1°/45.1°/106.9°(H/V/D)
6mm: 55.1°/30.2°/64°(H/V/D)
Lens Mount M12
IR
IR Range 30m
Wavelength 850nm
Compression Standard
Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate 64 Kbps to 4 Mbps
Smart Feature-set
Smart Event
Human & Vehicle Classification, Area Intrusion
Detection, Line-Crossing Detection, People
Detection, Area Entrance Detection, Area Exiting
Detection, Abandoned Object Detection, Object
Removal Detection, Vehicle Detection
Basic Event Motion Detection, Video Tampering Detection,
Exception ( illegal login)
Linkage Method Trigger Notification: ONVIF, HTTPS
Region of Interest 1 Region
Max. Resolution 3MP (2304 × 1296)
Main Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps,
30fps
Resolution: 2304x1296, 2048x1280, 1920x1080,
1280x720
Sub-Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps,
30fps
Resolution: 704x576, 640x480, 352x288,
320x240
Image Enhancement BLC/3D DNR/HLC/SmartIR
Image Settings
Mirror, Brightness, Contrast, Saturation, Sharpness,
Exposure, WDR, White Balance, HLC Adjustable by
Client Software, Rotation(90°/270°)
Day/Night Switch Day/Night/Auto/Schedule
Network
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS
General Function Two Streams, Mirror, Privacy Masks, Password
Reset via E-mail, HTTP Listening
API ONVIF
Security Password Protection, HTTPS Encryption, IP
Address Filter, Digest Authentication
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI APP, VIGI Security Manager, VIGI NVR, Web
Interface
Communication Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Video Output No
Reset Button No
General
Operating Temperature -30–60 °C
Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
Power Consumption 12V DC: Max 5.4W
PoE: Class 0
Audio Communication Built-In Microphone
Material Plastic
Product Dimensions 174 × 78 × 70 mm
Certifications CE/VCCI/BSMI/KC/ONVIF
