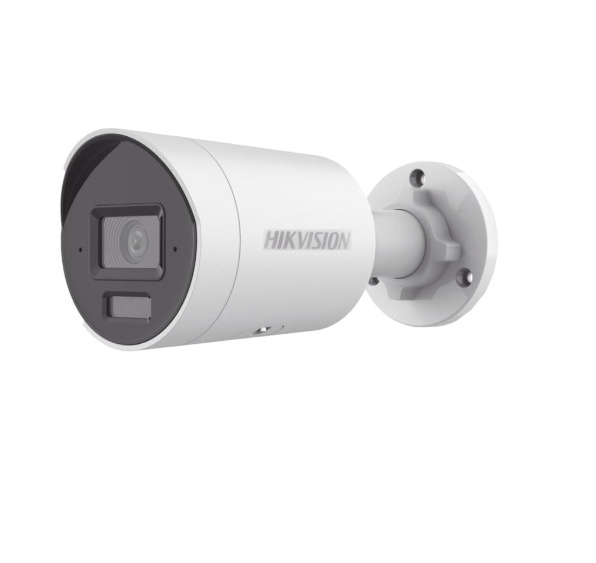

Camera supraveghere bullet AcuSense Smart Hybrid Light, 6MP, Hikvison DS-2CD2063G2-LI

Descriere

Tehnologia CMOS

Utilizata si in senzorii de imagine al camerelor de supraveghere, tehnologia CMOS ajuta la captarea imaginilor la o calitate superioara. Printre caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie.

Un nou standard este necesar pentru a micsora dimensiunile fisierelor pe masura ce tehnologia avanseaza. Aici intra in actiune standardul H.265+. Acest standard este conceput sa utilizeze o latime de banda mult mai mica multumita tehnicilor de encoding avansate dar si un model de encoding/decoding mai sofisticat.

Functia  AcuSense filtreaza si elimina alarmele false (pasari, frunze, ploaie, lumina) cu o acuratete de peste 90%.

Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde

Monitorizarea de la distanta

Ofera posibilitatea de a urmari locuita personala sau spatiul comercial de la distanta, prin intermediul unui smartphone, tableta sau laptop.   Aceasta e o solutie optima, pentru a vedea transmisia sistemului video de supraveghere detinut intr-o anumita locatie cu ajutorul unei conexiuni la internet, 3G sau 4G.

Microfonul incorporat ofera utilizatorului accesul la supravegherea audio a locatie si nu mai este necesara adaugarea unui dispozitiv aditional pentru captarea semnalului audio.

SD card

Scapa de grija instalatiilor complexe , de amalgamul de cabluri si echipamente grele si costisitoare, deoarece acum poti inregistra si stoca  imaginile pe propriul card SD pe care il conectezi direct la camera.

Back Light Compensation - BLC

Functia BLC (Compensarea luminii din spate) este folosita adesea la imagini in care o sursa de lumina puternica se afla in spatele subiectului de interes. In acest caz, subiectul ar aparea doar ca un contur negru. BLC permite camerei sa regleze expunerea intregii imagini, pentru a evidentia corect subiectul in prim-plan.

3D DNR

DNR este o functie care reduce zgomotul de imagine , in scopul de a imbunatati calitatea imaginii aparatului.In special , se reduce zgomotul  care este generat in conditii de luminozitate slaba.

3D se refera la trei dimensiuni si incorporate in 3D DNR este un circuit  de reducere a zgomotului digital, capabil de a reducezgomotul de imagine si de a imbunatati esecul amestecat de culori si contactul de culori.

ROI Codec

Caracteristica care ofera posibilitatea de a crea o zona definita ROI (Region of Interes), astfel incat imginea va cuprinde mai multe detalii si o calitate mai buna la acelasi bit rate. Latimea de banda si dimensiunea inregistrarii sunt si ele diminuate, deoarece zonele nedefinite ca ROI vor capta imagini la o calitate mai scazuta.

Motion detection

Detectia de miscare presupune analizarea diferentelor dintre doua imagini. Daca diferenta dintre cele doua imagini comparate trece de o anumita valoare data, este detectata miscarea si se declanseaza alarma setata. Elementul cheie in detectia de miscare este Region of Interest (ROI). ROI denota o zona video sensibila la miscare. O zona de detectie a miscarii este in esenta o retea de 16x16 celule. Acestor celule li se impun niste limite de sensibilitate la miscare, valoare la care este declansata automat alarma.

Privacy Masking

Privacy Masking este o caracteristica regasita la multe camere IP, folosita pentru a proteja intimitatea personala prin ascunderea unor parti a imaginii cu ajutorul unei zone disimulate.

IP67

Nivelul de protectie asigurat de carcasa camerei impotriva accesului la componentele interne, a corpurilor solide sau a patrunderii apei. IP 67 indica un grad superior de protectie asupra factorilor externi si ofera protectie impotriva efectului de imersie, intre 15 cm si 1 m.

IK10

Caracteristica IK10 este un standard ce arata ca o camera poate suporta o energie de impact de pana la 20J. Toate camerele Speed Dome Smart PTZ de la HIKVISION pot fi echipate cu carcasa IK10.

Wide temperature

Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -30°C si +60°C si cu umiditate de pana la 95%.

Camera

• • Image Sensor1/2.4" Progressive Scan CMOS
  • Max. Resolution3200 × 1800
  • Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light
  • Shutter Time1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
  • Lens
  • Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
  • Focal Length & FOV

    2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°

    4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°

    6 mm, horizontal FOV 51°, vertical FOV 26°, diagonal FOV 59°

  • Lens MountM12
  • Iris TypeFixed
  • ApertureF1.6
  • Depth of Field

    2.8 mm: 1.8 m to ∞

    4 mm: 3.1 m to ∞

    6 mm: 6.4 m to ∞

  • DORI
  • DORI

    2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m

    4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m

    6 mm, D: 164 m, O: 65 m, R: 32 m, I: 16 m

  • Illuminator
  • Supplement Light TypeIR,White Light
  • Supplement Light RangeUp to 40 m
  • Smart Supplement LightYes
  • IR Wavelength850 nm
  • Video
  • Main Stream

    50 Hz:

    25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

    60 Hz:

    30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

  • Third Stream

    50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    *Third stream is supported under certain settings.

  • Video Compression

    Main stream: H.265/H.264/H.264+/H.265+,

    Sub-stream: H.265/H.264/MJPEG,

    Third stream: H.265/H.264,

    *Third stream is supported under certain settings.

  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Bit Rate ControlCBR,VBR
  • Region of Interest (ROI)1 fixed region for main stream and sub-stream
  • Target CroppingYes
  • Audio
  • Audio Compression-2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate-2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate-2U: 8 kHz/16 kHz/32 kHz/48 kHz
  • Environment Noise Filtering-2U: Yes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
  • Simultaneous Live ViewUp to 6 channels
  • APIONVIF (Profile S, Profile G),ISAPI,SDK,ISUP
  • SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
  • User/Host

    Up to 32 users

    3 user levels: administrator, operator, and user

  • ClientiVMS-4200,Hik-Connect,Hik-Central
  • Network Storage

    NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

  • Web Browser

    Plug-in required live view: IE 11,

    Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,

    Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

  • Image
  • Image Parameters SwitchYes
  • Day/Night SwitchDay,Night,Auto,Schedule
  • Image SettingsRotate mode
  • Wide Dynamic Range (WDR)120 dB
  • SNR≥ 52 dB
  • Image EnhancementBLC,HLC,3D DNR
  • Privacy Mask8 programmable polygon privacy masks
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Reset KeyYes
  • Audio

    Built-in Microphone:

    -2U: Arrayed dual-microphone

  • Event
  • Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
  • Deep Learning Function
  • Perimeter Protection

    Line crossing, intrusion

    Support alarm triggering by specified target types (human and vehicle)

  • General
  • Power

    12 VDC ± 25%, 0.5 A, max. 6 W,reverse polarity protection,Ø5.5 mm coaxial power plug,

    PoE: IEEE 802.3af, Class 3, max. 7.5 W

  • MaterialMetal
  • DimensionØ74.4 mm × 176.3 mm (Ø2.93" × 6.94")
  • Package Dimension234 mm × 120 mm × 117 mm (9.21" × 4.72" × 4.61")
  • WeightApprox. 515 g (1.1 lb.)
  • With Package WeightApprox. 760 g (1.7 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General FunctionHeartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
  • Approval
  • EMC

    CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

    RCM: AS/NZS CISPR 32: 2015,

    IC: ICES-003: Issue 7,

    KC: KN32: 2015, KN35: 2015

  • Safety




    CB: IEC 62368-1: 2014+A11,

    CE-LVD: EN 62368-1: 2014/A11: 2017,

    BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,

    LOA: IEC/EN 60950-1

  • Environment

    CE-RoHS: 2011/65/EU,

    WEEE: 2012/19/EU,

    Reach: Regulation (EC) No 1907/2006

  • ProtectionIP67: IEC 60529-2013
